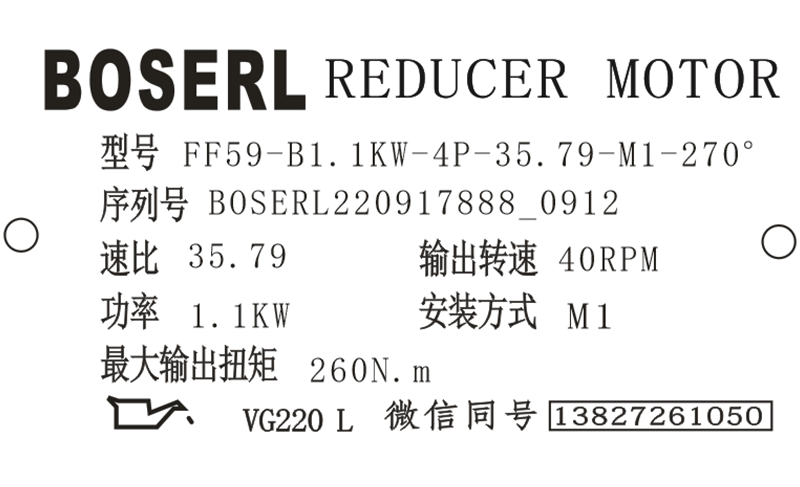

FF59減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF59減速器選型樣本。

FF59-B1.1KW-4P-35.79-M1-270°

FF：系列代號

59：減速機規格代號

B：電機

1.1KW：電機功率

4P：電機級數

35.79：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

FF59減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動FF59減速器前拆下透氣閥的運輸保險！平行軸斜齒輪減速機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

FF59減速器安裝操作的正確方法：

FF59減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列FF59減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的FF59減速器，啟動FF59減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。齒輪減速電機

FF59減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

FF59減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的FF59減速器選型樣本”）。

FF59減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。剎車電機減速機

FF59減速器型號：

FWF57-Y0.12KW，F(xiàn)WF57-Y0.18KW，F(xiàn)WF57-Y0.25KW，F(xiàn)WF57-Y0.37KW，F(xiàn)WF57-Y0.55KW，F(xiàn)WF57-Y0.75KW，F(xiàn)WF57-Y1.1KW，F(xiàn)WF57-Y1.5KW，F(xiàn)WF57-Y100M4，F(xiàn)WF57-Y112M4，F(xiàn)WF57-Y132M4，F(xiàn)WF57-Y2.2KW，F(xiàn)WF57-Y3KW，F(xiàn)WF57-Y4KW，F(xiàn)WF57-Y5.5KW，F(xiàn)WF57-Y63M4，F(xiàn)WF57-Y71M4，F(xiàn)WF57-Y80M4，F(xiàn)WF57-Y90M4，F(xiàn)WF57-YB100M4，F(xiàn)WF57-YB112M4，F(xiàn)WF57-YB132M4，F(xiàn)WF57-YB63M4，F(xiàn)WF57-YB71M4，F(xiàn)WF57-YB80M4，F(xiàn)WF57-YB90M4，F(xiàn)WF57-YDP100M4，F(xiàn)WF57-YDP112M4，F(xiàn)WF57-YDP132M4，F(xiàn)WF57-YDP63M4，F(xiàn)WF57-YDP71M4，F(xiàn)WF57-YDP80M4，F(xiàn)WF57-YDP90M4，F(xiàn)WF57-YE100M4，F(xiàn)WF57-YE112M4，F(xiàn)WF57-YE132M4，F(xiàn)WF57-YE63M4，F(xiàn)WF57-YE71M4，F(xiàn)WF57-YE80M4，F(xiàn)WF57-YE90M4，F(xiàn)WF57-YEJ100M4，F(xiàn)WF57-YEJ112M4，F(xiàn)WF57-YEJ132M4，F(xiàn)WF57-YEJ63M4，F(xiàn)WF57-YEJ71M4，F(xiàn)WF57-YEJ80M4，F(xiàn)WF57-YEJ90M4，F(xiàn)WF57-YEJB100M4，F(xiàn)WF57-YEJB112M4，F(xiàn)WF57-YEJB132M4，F(xiàn)WF57-YEJB63M4，F(xiàn)WF57-YEJB71M4，F(xiàn)WF57-YEJB80M4，F(xiàn)WF57-YEJB90M4，F(xiàn)WF57-YP100M4，F(xiàn)WF57-YP112M4，F(xiàn)WF57-YP132M4，F(xiàn)WF57-YP63M4，F(xiàn)WF57-YP71M4，F(xiàn)WF57-YP80M4，F(xiàn)WF57-YP90M4，F(xiàn)WF57-YPB100M4，F(xiàn)WF57-YPB112M4，F(xiàn)WF57-YPB132M4，F(xiàn)WF57-YPB63M4，F(xiàn)WF57-YPB71M4，F(xiàn)WF57-YPB80M4，F(xiàn)WF57-YPB90M4，F(xiàn)WF57-YPE100M4，F(xiàn)WF57-YPE112M4，F(xiàn)WF57-YPE132M4，F(xiàn)WF57-YPE63M4，F(xiàn)WF57-YPE71M4，F(xiàn)WF57-YPE80M4，F(xiàn)WF57-YPE90M4，F(xiàn)WF57-YS100M4，F(xiàn)WF57-YS112M4，F(xiàn)WF57-YS132M4，F(xiàn)WF57-YS63M4，F(xiàn)WF57-YS71M4，F(xiàn)WF57-YS80M4，F(xiàn)WF57-YS90M4，F(xiàn)WF57-YVB100M4，F(xiàn)WF57-YVB112M4，F(xiàn)WF57-YVB132M4，F(xiàn)WF57-YVB63M4，F(xiàn)WF57-YVB71M4，F(xiàn)WF57-YVB80M4，F(xiàn)WF57-YVB90M4，F(xiàn)WF57-YVP100M4，F(xiàn)WF57-YVP112M4，F(xiàn)WF57-YVP132M4，F(xiàn)WF57-YVP63M4，F(xiàn)WF57-YVP71M4，F(xiàn)WF57-YVP80M4，F(xiàn)WF57-YVP90M4，F(xiàn)WF57-YVPEJ100M4，F(xiàn)WF57-YVPEJ112M4，F(xiàn)WF57-YVPEJ132M4，F(xiàn)WF57-YVPEJ63M4，F(xiàn)WF57-YVPEJ71M4，F(xiàn)WF57-YVPEJ80M4，F(xiàn)WF57-YVPEJ90M4，YQFF57-Y0.12KW，YQFF57-Y0.18KW，YQFF57-Y0.25KW，YQFF57-Y0.37KW，YQFF57-Y0.55KW，YQFF57-Y0.75KW，YQFF57-Y1.1KW，YQFF57-Y1.5KW，YQFF57-Y100M4，YQFF57-Y112M4，YQFF57-Y132M4，YQFF57-Y2.2KW，YQFF57-Y3KW，YQFF57-Y4KW，YQFF57-Y5.5KW，YQFF57-Y63M4，YQFF57-Y71M4，YQFF57-Y80M4，YQFF57-Y90M4，YQFF57-YB100M4，YQFF57-YB112M4，YQFF57-YB132M4，YQFF57-YB63M4，YQFF57-YB71M4，YQFF57-YB80M4，YQFF57-YB90M4，YQFF57-YDP100M4，YQFF57-YDP112M4，YQFF57-YDP132M4，YQFF57-YDP63M4，YQFF57-YDP71M4，YQFF57-YDP80M4，YQFF57-YDP90M4，YQFF57-YE100M4，YQFF57-YE112M4，YQFF57-YE132M4，YQFF57-YE63M4，YQFF57-YE71M4，YQFF57-YE80M4，YQFF57-YE90M4，YQFF57-YEJ100M4，YQFF57-YEJ112M4，YQFF57-YEJ132M4，YQFF57-YEJ63M4，YQFF57-YEJ71M4，YQFF57-YEJ80M4，YQFF57-YEJ90M4，YQFF57-YEJB100M4，YQFF57-YEJB112M4，YQFF57-YEJB132M4，YQFF57-YEJB63M4，YQFF57-YEJB71M4，YQFF57-YEJB80M4，YQFF57-YEJB90M4，YQFF57-YP100M4，YQFF57-YP112M4，YQFF57-YP132M4，YQFF57-YP63M4，YQFF57-YP71M4，YQFF57-YP80M4，YQFF57-YP90M4，YQFF57-YPB100M4，YQFF57-YPB112M4，YQFF57-YPB132M4，YQFF57-YPB63M4，YQFF57-YPB71M4，YQFF57-YPB80M4，YQFF57-YPB90M4，YQFF57-YPE100M4，YQFF57-YPE112M4，YQFF57-YPE132M4，YQFF57-YPE63M4，YQFF57-YPE71M4，YQFF57-YPE80M4，YQFF57-YPE90M4，YQFF57-YS100M4，YQFF57-YS112M4，YQFF57-YS132M4，YQFF57-YS63M4，YQFF57-YS71M4，YQFF57-YS80M4，YQFF57-YS90M4，YQFF57-YVB100M4，YQFF57-YVB112M4，YQFF57-YVB132M4，YQFF57-YVB63M4，YQFF57-YVB71M4，YQFF57-YVB80M4，YQFF57-YVB90M4，YQFF57-YVP100M4，YQFF57-YVP112M4，YQFF57-YVP132M4，YQFF57-YVP63M4，YQFF57-YVP71M4，YQFF57-YVP80M4，YQFF57-YVP90M4，YQFF57-YVPEJ100M4，YQFF57-YVPEJ112M4，YQFF57-YVPEJ132M4，YQFF57-YVPEJ63M4，YQFF57-YVPEJ71M4，YQFF57-YVPEJ80M4，YQFF57-YVPEJ90M4，JCFF57-Y0.12KW，JCFF57-Y0.18KW，JCFF57-Y0.25KW，JCFF57-Y0.37KW，JCFF57-Y0.55KW，JCFF57-Y0.75KW，JCFF57-Y1.1KW，JCFF57-Y1.5KW，JCFF57-Y100M4，JCFF57-Y112M4，JCFF57-Y132M4，JCFF57-Y2.2KW，JCFF57-Y3KW，JCFF57-Y4KW，JCFF57-Y5.5KW，JCFF57-Y63M4，JCFF57-Y71M4，JCFF57-Y80M4，JCFF57-Y90M4，JCFF57-YB100M4，JCFF57-YB112M4，JCFF57-YB132M4，JCFF57-YB63M4，JCFF57-YB71M4，JCFF57-YB80M4，JCFF57-YB90M4，JCFF57-YDP100M4，JCFF57-YDP112M4，JCFF57-YDP132M4，JCFF57-YDP63M4，JCFF57-YDP71M4，JCFF57-YDP80M4，JCFF57-YDP90M4，JCFF57-YE100M4，JCFF57-YE112M4，JCFF57-YE132M4，JCFF57-YE63M4，JCFF57-YE71M4，JCFF57-YE80M4，JCFF57-YE90M4，JCFF57-YEJ100M4，JCFF57-YEJ112M4，JCFF57-YEJ132M4，JCFF57-YEJ63M4，JCFF57-YEJ71M4，JCFF57-YEJ80M4，JCFF57-YEJ90M4，JCFF57-YEJB100M4，JCFF57-YEJB112M4，JCFF57-YEJB132M4，JCFF57-YEJB63M4，JCFF57-YEJB71M4，JCFF57-YEJB80M4，JCFF57-YEJB90M4，JCFF57-YP100M4，JCFF57-YP112M4，JCFF57-YP132M4，JCFF57-YP63M4，JCFF57-YP71M4，JCFF57-YP80M4，JCFF57-YP90M4，JCFF57-YPB100M4，JCFF57-YPB112M4，JCFF57-YPB132M4，JCFF57-YPB63M4，JCFF57-YPB71M4，JCFF57-YPB80M4，JCFF57-YPB90M4，JCFF57-YPE100M4，JCFF57-YPE112M4，JCFF57-YPE132M4，JCFF57-YPE63M4，JCFF57-YPE71M4，JCFF57-YPE80M4，JCFF57-YPE90M4，JCFF57-YS100M4，JCFF57-YS112M4，JCFF57-YS132M4，JCFF57-YS63M4，JCFF57-YS71M4，JCFF57-YS80M4，JCFF57-YS90M4，JCFF57-YVB100M4，JCFF57-YVB112M4，JCFF57-YVB132M4，JCFF57-YVB63M4，JCFF57-YVB71M4，JCFF57-YVB80M4，JCFF57-YVB90M4，JCFF57-YVP100M4，JCFF57-YVP112M4，JCFF57-YVP132M4，JCFF57-YVP63M4，JCFF57-YVP71M4，JCFF57-YVP80M4，JCFF57-YVP90M4，JCFF57-YVPEJ100M4，JCFF57-YVPEJ112M4，JCFF57-YVPEJ132M4，JCFF57-YVPEJ63M4，JCFF57-YVPEJ71M4，JCFF57-YVPEJ80M4，JCFF57-YVPEJ90M4，XDFF57-Y0.12KW，XDFF57-Y0.18KW，XDFF57-Y0.25KW，XDFF57-Y0.37KW，XDFF57-Y0.55KW，XDFF57-Y0.75KW，XDFF57-Y1.1KW，XDFF57-Y1.5KW，XDFF57-Y100M4，XDFF57-Y112M4，XDFF57-Y132M4，XDFF57-Y2.2KW，XDFF57-Y3KW，XDFF57-Y4KW，XDFF57-Y5.5KW，XDFF57-Y63M4，XDFF57-Y71M4，XDFF57-Y80M4，XDFF57-Y90M4，XDFF57-YB100M4，XDFF57-YB112M4，XDFF57-YB132M4，XDFF57-YB63M4，XDFF57-YB71M4，XDFF57-YB80M4，XDFF57-YB90M4，XDFF57-YDP100M4，XDFF57-YDP112M4，XDFF57-YDP132M4，XDFF57-YDP63M4，XDFF57-YDP71M4，XDFF57-YDP80M4，XDFF57-YDP90M4，XDFF57-YE100M4，XDFF57-YE112M4，XDFF57-YE132M4，XDFF57-YE63M4，XDFF57-YE71M4，XDFF57-YE80M4，XDFF57-YE90M4，XDFF57-YEJ100M4，XDFF57-YEJ112M4，XDFF57-YEJ132M4，XDFF57-YEJ63M4，XDFF57-YEJ71M4，XDFF57-YEJ80M4，XDFF57-YEJ90M4，XDFF57-YEJB100M4，XDFF57-YEJB112M4，XDFF57-YEJB132M4，XDFF57-YEJB63M4，XDFF57-YEJB71M4，XDFF57-YEJB80M4，XDFF57-YEJB90M4，XDFF57-YP100M4，XDFF57-YP112M4，XDFF57-YP132M4，XDFF57-YP63M4，XDFF57-YP71M4，XDFF57-YP80M4，XDFF57-YP90M4，XDFF57-YPB100M4，XDFF57-YPB112M4，XDFF57-YPB132M4，XDFF57-YPB63M4，XDFF57-YPB71M4，XDFF57-YPB80M4，XDFF57-YPB90M4，XDFF57-YPE100M4，XDFF57-YPE112M4，XDFF57-YPE132M4，XDFF57-YPE63M4，XDFF57-YPE71M4，XDFF57-YPE80M4，XDFF57-YPE90M4，XDFF57-YS100M4，XDFF57-YS112M4，XDFF57-YS132M4，XDFF57-YS63M4，XDFF57-YS71M4，XDFF57-YS80M4，XDFF57-YS90M4，XDFF57-YVB100M4，XDFF57-YVB112M4，XDFF57-YVB132M4，XDFF57-YVB63M4，XDFF57-YVB71M4，XDFF57-YVB80M4，XDFF57-YVB90M4，XDFF57-YVP100M4，XDFF57-YVP112M4，XDFF57-YVP132M4，XDFF57-YVP63M4，XDFF57-YVP71M4，XDFF57-YVP80M4，XDFF57-YVP90M4，XDFF57-YVPEJ100M4，XDFF57-YVPEJ112M4，XDFF57-YVPEJ132M4，XDFF57-YVPEJ63M4，XDFF57-YVPEJ71M4，XDFF57-YVPEJ80M4，XDFF57-YVPEJ90M4，F(xiàn)F59-Y0.12KW，F(xiàn)F59-Y0.18KW，F(xiàn)F59-Y0.25KW，F(xiàn)F59-Y0.37KW，F(xiàn)F59-Y0.55KW，F(xiàn)F59-Y0.75KW，F(xiàn)F59-Y1.1KW，F(xiàn)F59-Y1.5KW，F(xiàn)F59-Y100M4，F(xiàn)F59-Y112M4，F(xiàn)F59-Y132M4，F(xiàn)F59-Y2.2KW，F(xiàn)F59-Y3KW，F(xiàn)F59-Y4KW，F(xiàn)F59-Y5.5KW，F(xiàn)F59-Y63M4，F(xiàn)F59-Y71M4，F(xiàn)F59-Y80M4，F(xiàn)F59-Y90M4，F(xiàn)F59-YB100M4，F(xiàn)F59-YB112M4，F(xiàn)F59-YB132M4，F(xiàn)F59-YB63M4，F(xiàn)F59-YB71M4，F(xiàn)F59-YB80M4，F(xiàn)F59-YB90M4，F(xiàn)F59-YDP100M4，F(xiàn)F59-YDP112M4，F(xiàn)F59-YDP132M4，F(xiàn)F59-YDP63M4，F(xiàn)F59-YDP71M4，F(xiàn)F59-YDP80M4，F(xiàn)F59-YDP90M4，F(xiàn)F59-YE100M4，F(xiàn)F59-YE112M4，F(xiàn)F59-YE132M4，F(xiàn)F59-YE63M4，F(xiàn)F59-YE71M4，F(xiàn)F59-YE80M4，F(xiàn)F59-YE90M4，F(xiàn)F59-YEJ100M4，F(xiàn)F59-YEJ112M4，F(xiàn)F59-YEJ132M4，F(xiàn)F59-YEJ63M4，F(xiàn)F59-YEJ71M4，F(xiàn)F59-YEJ80M4，F(xiàn)F59-YEJ90M4，F(xiàn)F59-YEJB100M4，F(xiàn)F59-YEJB112M4，F(xiàn)F59-YEJB132M4，F(xiàn)F59-YEJB63M4，F(xiàn)F59-YEJB71M4，F(xiàn)F59-YEJB80M4，F(xiàn)F59-YEJB90M4，F(xiàn)F59-YP100M4，F(xiàn)F59-YP112M4，F(xiàn)F59-YP132M4，F(xiàn)F59-YP63M4，F(xiàn)F59-YP71M4，F(xiàn)F59-YP80M4，F(xiàn)F59-YP90M4，F(xiàn)F59-YPB100M4，F(xiàn)F59-YPB112M4，F(xiàn)F59-YPB132M4，F(xiàn)F59-YPB63M4，F(xiàn)F59-YPB71M4，F(xiàn)F59-YPB80M4，F(xiàn)F59-YPB90M4，F(xiàn)F59-YPE100M4，F(xiàn)F59-YPE112M4，F(xiàn)F59-YPE132M4，F(xiàn)F59-YPE63M4，F(xiàn)F59-YPE71M4，F(xiàn)F59-YPE80M4，F(xiàn)F59-YPE90M4，F(xiàn)F59-YS100M4，F(xiàn)F59-YS112M4，F(xiàn)F59-YS132M4，F(xiàn)F59-YS63M4，F(xiàn)F59-YS71M4，F(xiàn)F59-YS80M4，F(xiàn)F59-YS90M4，F(xiàn)F59-YVB100M4，F(xiàn)F59-YVB112M4，F(xiàn)F59-YVB132M4，F(xiàn)F59-YVB63M4，F(xiàn)F59-YVB71M4，F(xiàn)F59-YVB80M4，F(xiàn)F59-YVB90M4，F(xiàn)F59-YVP100M4，F(xiàn)F59-YVP112M4，F(xiàn)F59-YVP132M4，F(xiàn)F59-YVP63M4，F(xiàn)F59-YVP71M4，F(xiàn)F59-YVP80M4，F(xiàn)F59-YVP90M4，F(xiàn)F59-YVPEJ100M4，F(xiàn)F59-YVPEJ112M4，F(xiàn)F59-YVPEJ132M4，F(xiàn)F59-YVPEJ63M4，F(xiàn)F59-YVPEJ71M4，F(xiàn)F59-YVPEJ80M4，F(xiàn)F59-YVPEJ90M4，F(xiàn)F57SF80，F(xiàn)F57SF90，F(xiàn)F57SF100，F(xiàn)F57SF112，F(xiàn)F57SF115，F(xiàn)F57SF140，F(xiàn)F57SF160，F(xiàn)F57SF190。
