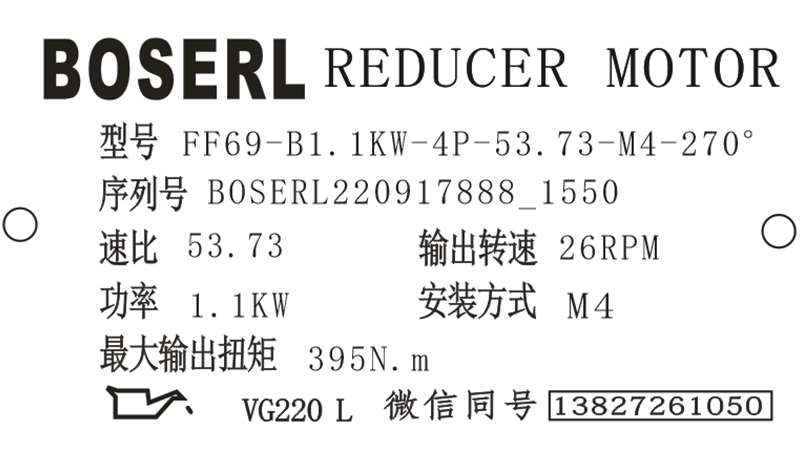

FF69減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF69減速機選型樣本。

FF69-YVPEJ1.1KW-4P-53.73-M4-270°

FF：系列代號

69：減速機規格代號

Y：電機

VPEJ：變頻剎車電機

1.1KW：電機功率

4P：電機級數

53.73：減速機傳動比

M4：減速機安裝位置

270°：接線盒位置

FF69減速機潤滑油型號：

FF69減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF69減速機選型樣本中列出了安裝位置從M1到M6FF69減速機相應的潤滑油加注標準，請自行下載查看。平行軸斜齒輪減速機

FF69減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據FF69減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“FF69減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。

FF69減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

FF69減速機推薦使用的潤滑油，其等級和粘度指標見下表：

FF69減速機使用說明：

FF69減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

FF69減速機警告說明：由于FF69減速機發熱或FF69減速機油溫過高可能引起燙傷；對FF69減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

FF69減速機注意事項：若未注入正確的FF69減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

FF69減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見FF69減速機說明書安裝位置章節中的內容。剎車電機減速機

FF69減速機的螺母：立式安裝FF69減速機輸出法蘭螺母規格M12；FF69減速機螺母/螺母擰緊扭矩強度等級10.9。

FF69減速機型號：

SFF67-Y0.18KW，SFF67-Y0.25KW，SFF67-Y0.37KW，SFF67-Y0.55KW，SFF67-Y0.75KW，SFF67-Y1.1KW，SFF67-Y1.5KW，SFF67-Y100M4，SFF67-Y112M4，SFF67-Y132M4，SFF67-Y2.2KW，SFF67-Y3KW，SFF67-Y4KW，SFF67-Y5.5KW，SFF67-Y63M4，SFF67-Y71M4，SFF67-Y80M4，SFF67-Y90M4，SFF67-YB100M4，SFF67-YB112M4，SFF67-YB132M4，SFF67-YB63M4，SFF67-YB71M4，SFF67-YB80M4，SFF67-YB90M4，SFF67-YDP100M4，SFF67-YDP112M4，SFF67-YDP132M4，SFF67-YDP63M4，SFF67-YDP71M4，SFF67-YDP80M4，SFF67-YDP90M4，SFF67-YE100M4，SFF67-YE112M4，SFF67-YE132M4，SFF67-YE63M4，SFF67-YE71M4，SFF67-YE80M4，SFF67-YE90M4，SFF67-YEJ100M4，SFF67-YEJ112M4，SFF67-YEJ132M4，SFF67-YEJ63M4，SFF67-YEJ71M4，SFF67-YEJ80M4，SFF67-YEJ90M4，SFF67-YEJB100M4，SFF67-YEJB112M4，SFF67-YEJB132M4，SFF67-YEJB63M4，SFF67-YEJB71M4，SFF67-YEJB80M4，SFF67-YEJB90M4，SFF67-YP100M4，SFF67-YP112M4，SFF67-YP132M4，SFF67-YP63M4，SFF67-YP71M4，SFF67-YP80M4，SFF67-YP90M4，SFF67-YPB100M4，SFF67-YPB112M4，SFF67-YPB132M4，SFF67-YPB63M4，SFF67-YPB71M4，SFF67-YPB80M4，SFF67-YPB90M4，SFF67-YPE100M4，SFF67-YPE112M4，SFF67-YPE132M4，SFF67-YPE63M4，SFF67-YPE71M4，SFF67-YPE80M4，SFF67-YPE90M4，SFF67-YS100M4，SFF67-YS112M4，SFF67-YS132M4，SFF67-YS63M4，SFF67-YS71M4，SFF67-YS80M4，SFF67-YS90M4，SFF67-YVB100M4，SFF67-YVB112M4，SFF67-YVB132M4，SFF67-YVB63M4，SFF67-YVB71M4，SFF67-YVB80M4，SFF67-YVB90M4，SFF67-YVP100M4，SFF67-YVP112M4，SFF67-YVP132M4，SFF67-YVP63M4，SFF67-YVP71M4，SFF67-YVP80M4，SFF67-YVP90M4，SFF67-YVPEJ100M4，SFF67-YVPEJ112M4，SFF67-YVPEJ132M4，SFF67-YVPEJ63M4，SFF67-YVPEJ71M4，SFF67-YVPEJ80M4，SFF67-YVPEJ90M4，NFF67-Y0.18KW，NFF67-Y0.25KW，NFF67-Y0.37KW，NFF67-Y0.55KW，NFF67-Y0.75KW，NFF67-Y1.1KW，NFF67-Y1.5KW，NFF67-Y100M4，NFF67-Y112M4，NFF67-Y132M4，NFF67-Y2.2KW，NFF67-Y3KW，NFF67-Y4KW，NFF67-Y5.5KW，NFF67-Y63M4，NFF67-Y71M4，NFF67-Y80M4，NFF67-Y90M4，NFF67-YB100M4，NFF67-YB112M4，NFF67-YB132M4，NFF67-YB63M4，NFF67-YB71M4，NFF67-YB80M4，NFF67-YB90M4，NFF67-YDP100M4，NFF67-YDP112M4，NFF67-YDP132M4，NFF67-YDP63M4，NFF67-YDP71M4，NFF67-YDP80M4，NFF67-YDP90M4，NFF67-YE100M4，NFF67-YE112M4，NFF67-YE132M4，NFF67-YE63M4，NFF67-YE71M4，NFF67-YE80M4，NFF67-YE90M4，NFF67-YEJ100M4，NFF67-YEJ112M4，NFF67-YEJ132M4，NFF67-YEJ63M4，NFF67-YEJ71M4，NFF67-YEJ80M4，NFF67-YEJ90M4，NFF67-YEJB100M4，NFF67-YEJB112M4，NFF67-YEJB132M4，NFF67-YEJB63M4，NFF67-YEJB71M4，NFF67-YEJB80M4，NFF67-YEJB90M4，NFF67-YP100M4，NFF67-YP112M4，NFF67-YP132M4，NFF67-YP63M4，NFF67-YP71M4，NFF67-YP80M4，NFF67-YP90M4，NFF67-YPB100M4，NFF67-YPB112M4，NFF67-YPB132M4，NFF67-YPB63M4，NFF67-YPB71M4，NFF67-YPB80M4，NFF67-YPB90M4，NFF67-YPE100M4，NFF67-YPE112M4，NFF67-YPE132M4，NFF67-YPE63M4，NFF67-YPE71M4，NFF67-YPE80M4，NFF67-YPE90M4，NFF67-YS100M4，NFF67-YS112M4，NFF67-YS132M4，NFF67-YS63M4，NFF67-YS71M4，NFF67-YS80M4，NFF67-YS90M4，NFF67-YVB100M4，NFF67-YVB112M4，NFF67-YVB132M4，NFF67-YVB63M4，NFF67-YVB71M4，NFF67-YVB80M4，NFF67-YVB90M4，NFF67-YVP100M4，NFF67-YVP112M4，NFF67-YVP132M4，NFF67-YVP63M4，NFF67-YVP71M4，NFF67-YVP80M4，NFF67-YVP90M4，NFF67-YVPEJ100M4，NFF67-YVPEJ112M4，NFF67-YVPEJ132M4，NFF67-YVPEJ63M4，NFF67-YVPEJ71M4，NFF67-YVPEJ80M4，NFF67-YVPEJ90M4，WFF67-Y0.18KW，WFF67-Y0.25KW，WFF67-Y0.37KW，WFF67-Y0.55KW，WFF67-Y0.75KW，WFF67-Y1.1KW，WFF67-Y1.5KW，WFF67-Y100M4，WFF67-Y112M4，WFF67-Y132M4，WFF67-Y2.2KW，WFF67-Y3KW，WFF67-Y4KW，WFF67-Y5.5KW，WFF67-Y63M4，WFF67-Y71M4，WFF67-Y80M4，WFF67-Y90M4，WFF67-YB100M4，WFF67-YB112M4，WFF67-YB132M4，WFF67-YB63M4，WFF67-YB71M4，WFF67-YB80M4，WFF67-YB90M4，WFF67-YDP100M4，WFF67-YDP112M4，WFF67-YDP132M4，WFF67-YDP63M4，WFF67-YDP71M4，WFF67-YDP80M4，WFF67-YDP90M4，WFF67-YE100M4，WFF67-YE112M4，WFF67-YE132M4，WFF67-YE63M4，WFF67-YE71M4，WFF67-YE80M4，WFF67-YE90M4，WFF67-YEJ100M4，WFF67-YEJ112M4，WFF67-YEJ132M4，WFF67-YEJ63M4，WFF67-YEJ71M4，WFF67-YEJ80M4，WFF67-YEJ90M4，WFF67-YEJB100M4，WFF67-YEJB112M4，WFF67-YEJB132M4，WFF67-YEJB63M4，WFF67-YEJB71M4，WFF67-YEJB80M4，WFF67-YEJB90M4，WFF67-YP100M4，WFF67-YP112M4，WFF67-YP132M4，WFF67-YP63M4，WFF67-YP71M4，WFF67-YP80M4，WFF67-YP90M4，WFF67-YPB100M4，WFF67-YPB112M4，WFF67-YPB132M4，WFF67-YPB63M4，WFF67-YPB71M4，WFF67-YPB80M4，WFF67-YPB90M4，WFF67-YPE100M4，WFF67-YPE112M4，WFF67-YPE132M4，WFF67-YPE63M4，WFF67-YPE71M4，WFF67-YPE80M4，WFF67-YPE90M4，WFF67-YS100M4，WFF67-YS112M4，WFF67-YS132M4，WFF67-YS63M4，WFF67-YS71M4，WFF67-YS80M4，WFF67-YS90M4，WFF67-YVB100M4，WFF67-YVB112M4，WFF67-YVB132M4，WFF67-YVB63M4，WFF67-YVB71M4，WFF67-YVB80M4，WFF67-YVB90M4，WFF67-YVP100M4，WFF67-YVP112M4，WFF67-YVP132M4，WFF67-YVP63M4，WFF67-YVP71M4，WFF67-YVP80M4，WFF67-YVP90M4，WFF67-YVPEJ100M4，WFF67-YVPEJ112M4，WFF67-YVPEJ132M4，WFF67-YVPEJ63M4，WFF67-YVPEJ71M4，WFF67-YVPEJ80M4，WFF67-YVPEJ90M4，AFF67-Y0.18KW，AFF67-Y0.25KW，AFF67-Y0.37KW，AFF67-Y0.55KW，AFF67-Y0.75KW，AFF67-Y1.1KW，AFF67-Y1.5KW，AFF67-Y100M4，AFF67-Y112M4，AFF67-Y132M4，AFF67-Y2.2KW，AFF67-Y3KW，AFF67-Y4KW，AFF67-Y5.5KW，AFF67-Y63M4，AFF67-Y71M4，AFF67-Y80M4，AFF67-Y90M4，AFF67-YB100M4，AFF67-YB112M4，AFF67-YB132M4，AFF67-YB63M4，AFF67-YB71M4，AFF67-YB80M4，AFF67-YB90M4，AFF67-YDP100M4，AFF67-YDP112M4，AFF67-YDP132M4，AFF67-YDP63M4，AFF67-YDP71M4，AFF67-YDP80M4，AFF67-YDP90M4，AFF67-YE100M4，AFF67-YE112M4，AFF67-YE132M4，AFF67-YE63M4，AFF67-YE71M4，AFF67-YE80M4，AFF67-YE90M4，AFF67-YEJ100M4，AFF67-YEJ112M4，AFF67-YEJ132M4，AFF67-YEJ63M4，AFF67-YEJ71M4，AFF67-YEJ80M4，AFF67-YEJ90M4，AFF67-YEJB100M4，AFF67-YEJB112M4，AFF67-YEJB132M4，AFF67-YEJB63M4，AFF67-YEJB71M4，AFF67-YEJB80M4，AFF67-YEJB90M4，AFF67-YP100M4，AFF67-YP112M4，AFF67-YP132M4，AFF67-YP63M4，AFF67-YP71M4，AFF67-YP80M4，AFF67-YP90M4，AFF67-YPB100M4，AFF67-YPB112M4，AFF67-YPB132M4，AFF67-YPB63M4，AFF67-YPB71M4，AFF67-YPB80M4，AFF67-YPB90M4，AFF67-YPE100M4，AFF67-YPE112M4，AFF67-YPE132M4，AFF67-YPE63M4，AFF67-YPE71M4，AFF67-YPE80M4，AFF67-YPE90M4，AFF67-YS100M4，AFF67-YS112M4，AFF67-YS132M4，AFF67-YS63M4，AFF67-YS71M4，AFF67-YS80M4，AFF67-YS90M4，AFF67-YVB100M4，AFF67-YVB112M4，AFF67-YVB132M4，AFF67-YVB63M4，AFF67-YVB71M4，AFF67-YVB80M4，AFF67-YVB90M4，AFF67-YVP100M4，AFF67-YVP112M4，AFF67-YVP132M4，AFF67-YVP63M4，AFF67-YVP71M4，AFF67-YVP80M4，AFF67-YVP90M4，AFF67-YVPEJ100M4，AFF67-YVPEJ112M4，AFF67-YVPEJ132M4，AFF67-YVPEJ63M4，AFF67-YVPEJ71M4，AFF67-YVPEJ80M4，AFF67-YVPEJ90M4，GFF69-Y0.18KW，GFF69-Y0.25KW，GFF69-Y0.37KW，GFF69-Y0.55KW，GFF69-Y0.75KW，GFF69-Y1.1KW，GFF69-Y1.5KW，GFF69-Y100M4，GFF69-Y112M4，GFF69-Y132M4，GFF69-Y2.2KW，GFF69-Y3KW，GFF69-Y4KW，GFF69-Y5.5KW，GFF69-Y63M4，GFF69-Y71M4，GFF69-Y80M4，GFF69-Y90M4，GFF69-YB100M4，GFF69-YB112M4，GFF69-YB132M4，GFF69-YB63M4，GFF69-YB71M4，GFF69-YB80M4，GFF69-YB90M4，GFF69-YDP100M4，GFF69-YDP112M4，GFF69-YDP132M4，GFF69-YDP63M4，GFF69-YDP71M4，GFF69-YDP80M4，GFF69-YDP90M4，GFF69-YE100M4，GFF69-YE112M4，GFF69-YE132M4，GFF69-YE63M4，GFF69-YE71M4，GFF69-YE80M4，GFF69-YE90M4，GFF69-YEJ100M4，GFF69-YEJ112M4，GFF69-YEJ132M4，GFF69-YEJ63M4，GFF69-YEJ71M4，GFF69-YEJ80M4，GFF69-YEJ90M4，GFF69-YEJB100M4，GFF69-YEJB112M4，GFF69-YEJB132M4，GFF69-YEJB63M4，GFF69-YEJB71M4，GFF69-YEJB80M4，GFF69-YEJB90M4，GFF69-YP100M4，GFF69-YP112M4，GFF69-YP132M4，GFF69-YP63M4，GFF69-YP71M4，GFF69-YP80M4，GFF69-YP90M4，GFF69-YPB100M4，GFF69-YPB112M4，GFF69-YPB132M4，GFF69-YPB63M4，GFF69-YPB71M4，GFF69-YPB80M4，GFF69-YPB90M4，GFF69-YPE100M4，GFF69-YPE112M4，GFF69-YPE132M4，GFF69-YPE63M4，GFF69-YPE71M4，GFF69-YPE80M4，GFF69-YPE90M4，GFF69-YS100M4，GFF69-YS112M4，GFF69-YS132M4，GFF69-YS63M4，GFF69-YS71M4，GFF69-YS80M4，GFF69-YS90M4，GFF69-YVB100M4，GFF69-YVB112M4，GFF69-YVB132M4，GFF69-YVB63M4，GFF69-YVB71M4，GFF69-YVB80M4，GFF69-YVB90M4，GFF69-YVP100M4，GFF69-YVP112M4，GFF69-YVP132M4，GFF69-YVP63M4，GFF69-YVP71M4，GFF69-YVP80M4，GFF69-YVP90M4，GFF69-YVPEJ100M4，GFF69-YVPEJ112M4，GFF69-YVPEJ132M4，GFF69-YVPEJ63M4，GFF69-YVPEJ71M4，GFF69-YVPEJ80M4，GFF69-YVPEJ90M4。

FF69減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F69減速機
