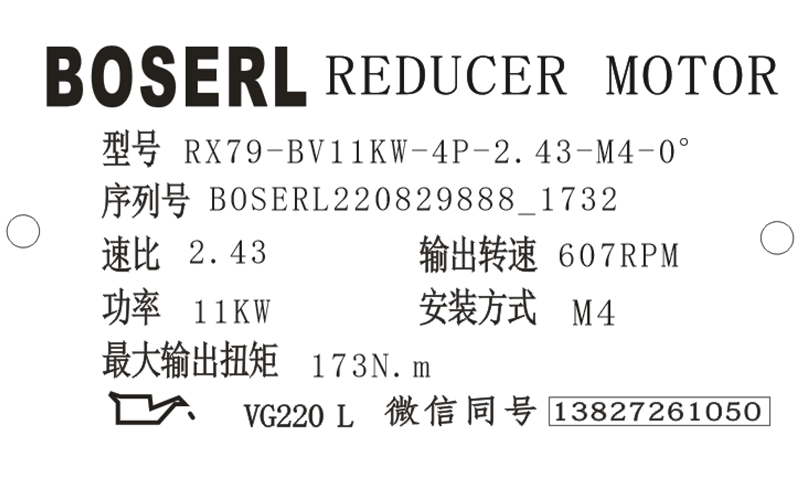

RX79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX79減速器選型樣本。

RX79-BV11KW-4P-2.43-M4-0°

RX：系列代號

79：減速機規格代號

BV：電機

11KW：電機功率

4P：電機級數

2.43：減速機傳動比

M4：減速機安裝位置

0°：接線盒位置

RX79減速器逆止器安裝：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。電機減速機一體機

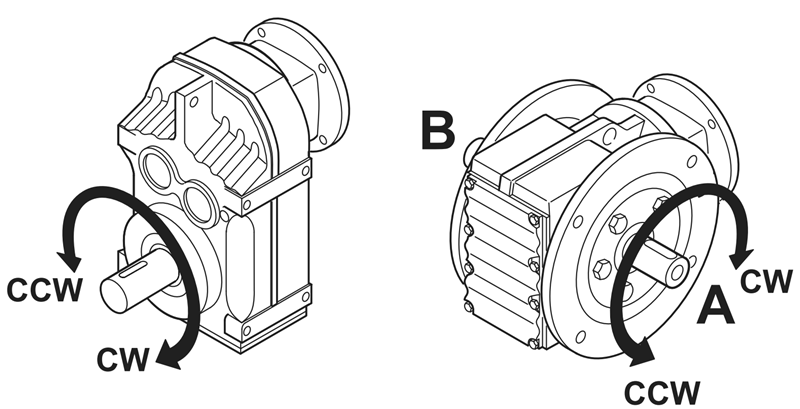

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

RX79減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

RX79減速器潤滑油檢查：

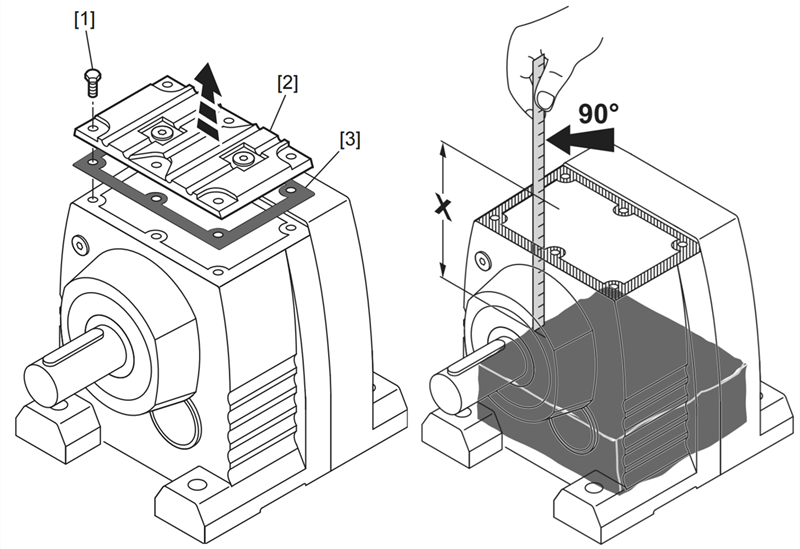

通過安裝蓋檢查油位：對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作：按照下列安裝位置放置減速器以便安裝蓋位于頂部；松開安全蓋2的螺栓1，并卸掉安裝蓋2及蓋上的密封圈3（見下圖）；確定油位與減速器箱體密封面的垂直間距“X”（見下圖）。齒輪減速電機

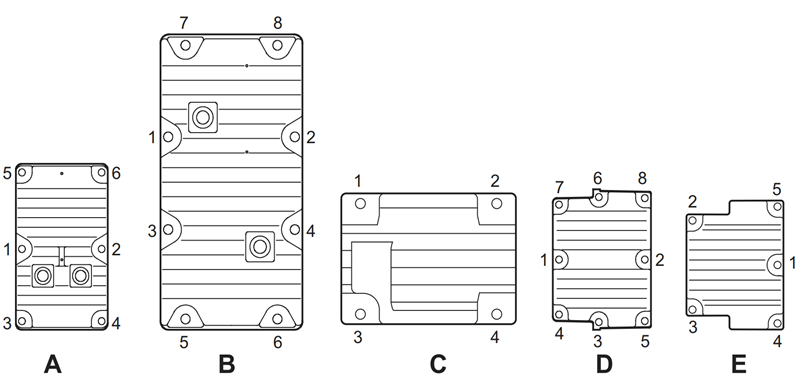

RX79減速器油位檢查完畢后密封RX79減速器：重新裝上安裝蓋的密封圈；注意，密封面要保持清潔、干燥；裝上安裝蓋；根據下表中的標稱擰緊扭矩按照?qǐng)D中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。臥式減速機

RX79減速器型號：

NRX77-AM100M4，NRX77-AM112M4，NRX77-AM132M4，NRX77-AM160M4，NRX77-AM71M4，NRX77-AM80M4，NRX77-AM90M4，NRX77-Y0.18KW，NRX77-Y0.25KW，NRX77-Y0.37KW，NRX77-Y0.55KW，NRX77-Y0.75KW，NRX77-Y1.1KW，NRX77-Y1.5KW，NRX77-Y100M4，NRX77-Y112M4，NRX77-Y11KW，NRX77-Y132M4，NRX77-Y15KW，NRX77-Y160M4，NRX77-Y2.2KW，NRX77-Y3KW，NRX77-Y4KW，NRX77-Y5.5KW，NRX77-Y7.5KW，NRX77-Y71M4，NRX77-Y80M4，NRX77-Y90M4，NRX77-YB100M4，NRX77-YB112M4，NRX77-YB132M4，NRX77-YB160M4，NRX77-YB71M4，NRX77-YB80M4，NRX77-YB90M4，NRX77-YDP100M4，NRX77-YDP112M4，NRX77-YDP132M4，NRX77-YDP160M4，NRX77-YDP71M4，NRX77-YDP80M4，NRX77-YDP90M4，NRX77-YE100M4，NRX77-YE112M4，NRX77-YE132M4，NRX77-YE160M4，NRX77-YE71M4，NRX77-YE80M4，NRX77-YE90M4，NRX77-YEJ100M4，NRX77-YEJ112M4，NRX77-YEJ132M4，NRX77-YEJ160M4，NRX77-YEJ71M4，NRX77-YEJ80M4，NRX77-YEJ90M4，NRX77-YEJB100M4，NRX77-YEJB112M4，NRX77-YEJB132M4，NRX77-YEJB160M4，NRX77-YEJB71M4，NRX77-YEJB80M4，NRX77-YEJB90M4，NRX77-YP100M4，NRX77-YP112M4，NRX77-YP132M4，NRX77-YP160M4，NRX77-YP71M4，NRX77-YP80M4，NRX77-YP90M4，NRX77-YPB100M4，NRX77-YPB112M4，NRX77-YPB132M4，NRX77-YPB160M4，NRX77-YPB71M4，NRX77-YPB80M4，NRX77-YPB90M4，NRX77-YPE100M4，NRX77-YPE112M4，NRX77-YPE132M4，NRX77-YPE160M4，NRX77-YPE71M4，NRX77-YPE80M4，NRX77-YPE90M4，NRX77-YS100M4，NRX77-YS112M4，NRX77-YS132M4，NRX77-YS160M4，NRX77-YS71M4，NRX77-YS80M4，NRX77-YS90M4，NRX77-YVB100M4，NRX77-YVB112M4，NRX77-YVB132M4，NRX77-YVB160M4，NRX77-YVB71M4，NRX77-YVB80M4，NRX77-YVB90M4，NRX77-YVP100M4，NRX77-YVP112M4，NRX77-YVP132M4，NRX77-YVP160M4，NRX77-YVP71M4，NRX77-YVP80M4，NRX77-YVP90M4，NRX77-YVPEJ100M4，NRX77-YVPEJ112M4，NRX77-YVPEJ132M4，NRX77-YVPEJ160M4，NRX77-YVPEJ71M4，NRX77-YVPEJ80M4，NRX77-YVPEJ90M4，GRX79-AM100M4，GRX79-AM112M4，GRX79-AM132M4，GRX79-AM160M4，GRX79-AM71M4，GRX79-AM80M4，GRX79-AM90M4，GRX79-Y0.18KW，GRX79-Y0.25KW，GRX79-Y0.37KW，GRX79-Y0.55KW，GRX79-Y0.75KW，GRX79-Y1.1KW，GRX79-Y1.5KW，GRX79-Y100M4，GRX79-Y112M4，GRX79-Y11KW，GRX79-Y132M4，GRX79-Y15KW，GRX79-Y160M4，GRX79-Y2.2KW，GRX79-Y3KW，GRX79-Y4KW，GRX79-Y5.5KW，GRX79-Y7.5KW，GRX79-Y71M4，GRX79-Y80M4，GRX79-Y90M4，GRX79-YB100M4，GRX79-YB112M4，GRX79-YB132M4，GRX79-YB160M4，GRX79-YB71M4，GRX79-YB80M4，GRX79-YB90M4，GRX79-YDP100M4，GRX79-YDP112M4，GRX79-YDP132M4，GRX79-YDP160M4，GRX79-YDP71M4，GRX79-YDP80M4，GRX79-YDP90M4，GRX79-YE100M4，GRX79-YE112M4，GRX79-YE132M4，GRX79-YE160M4，GRX79-YE71M4，GRX79-YE80M4，GRX79-YE90M4，GRX79-YEJ100M4，GRX79-YEJ112M4，GRX79-YEJ132M4，GRX79-YEJ160M4，GRX79-YEJ71M4，GRX79-YEJ80M4，GRX79-YEJ90M4，GRX79-YEJB100M4，GRX79-YEJB112M4，GRX79-YEJB132M4，GRX79-YEJB160M4，GRX79-YEJB71M4，GRX79-YEJB80M4，GRX79-YEJB90M4，GRX79-YP100M4，GRX79-YP112M4，GRX79-YP132M4，GRX79-YP160M4，GRX79-YP71M4，GRX79-YP80M4，GRX79-YP90M4，GRX79-YPB100M4，GRX79-YPB112M4，GRX79-YPB132M4，GRX79-YPB160M4，GRX79-YPB71M4，GRX79-YPB80M4，GRX79-YPB90M4，GRX79-YPE100M4，GRX79-YPE112M4，GRX79-YPE132M4，GRX79-YPE160M4，GRX79-YPE71M4，GRX79-YPE80M4，GRX79-YPE90M4，GRX79-YS100M4，GRX79-YS112M4，GRX79-YS132M4，GRX79-YS160M4，GRX79-YS71M4，GRX79-YS80M4，GRX79-YS90M4，GRX79-YVB100M4，GRX79-YVB112M4，GRX79-YVB132M4，GRX79-YVB160M4，GRX79-YVB71M4，GRX79-YVB80M4，GRX79-YVB90M4，GRX79-YVP100M4，GRX79-YVP112M4，GRX79-YVP132M4，GRX79-YVP160M4，GRX79-YVP71M4，GRX79-YVP80M4，GRX79-YVP90M4，GRX79-YVPEJ100M4，GRX79-YVPEJ112M4，GRX79-YVPEJ132M4，GRX79-YVPEJ160M4，GRX79-YVPEJ71M4，GRX79-YVPEJ80M4，GRX79-YVPEJ90M4，ARX77-AM100M4，ARX77-AM112M4，ARX77-AM132M4，ARX77-AM160M4，ARX77-AM71M4，ARX77-AM80M4，ARX77-AM90M4，ARX77-Y0.18KW，ARX77-Y0.25KW，ARX77-Y0.37KW，ARX77-Y0.55KW，ARX77-Y0.75KW，ARX77-Y1.1KW，ARX77-Y1.5KW，ARX77-Y100M4，ARX77-Y112M4，ARX77-Y11KW，ARX77-Y132M4，ARX77-Y15KW，ARX77-Y160M4，ARX77-Y2.2KW，ARX77-Y3KW，ARX77-Y4KW，ARX77-Y5.5KW，ARX77-Y7.5KW，ARX77-Y71M4，ARX77-Y80M4，ARX77-Y90M4，ARX77-YB100M4，ARX77-YB112M4，ARX77-YB132M4，ARX77-YB160M4，ARX77-YB71M4，ARX77-YB80M4，ARX77-YB90M4，ARX77-YDP100M4，ARX77-YDP112M4，ARX77-YDP132M4，ARX77-YDP160M4，ARX77-YDP71M4，ARX77-YDP80M4，ARX77-YDP90M4，ARX77-YE100M4，ARX77-YE112M4，ARX77-YE132M4，ARX77-YE160M4，ARX77-YE71M4，ARX77-YE80M4，ARX77-YE90M4，ARX77-YEJ100M4，ARX77-YEJ112M4，ARX77-YEJ132M4，ARX77-YEJ160M4，ARX77-YEJ71M4，ARX77-YEJ80M4，ARX77-YEJ90M4，ARX77-YEJB100M4，ARX77-YEJB112M4，ARX77-YEJB132M4，ARX77-YEJB160M4，ARX77-YEJB71M4，ARX77-YEJB80M4，ARX77-YEJB90M4，ARX77-YP100M4，ARX77-YP112M4，ARX77-YP132M4，ARX77-YP160M4，ARX77-YP71M4，ARX77-YP80M4，ARX77-YP90M4，ARX77-YPB100M4，ARX77-YPB112M4，ARX77-YPB132M4，ARX77-YPB160M4，ARX77-YPB71M4，ARX77-YPB80M4，ARX77-YPB90M4，ARX77-YPE100M4，ARX77-YPE112M4，ARX77-YPE132M4，ARX77-YPE160M4，ARX77-YPE71M4，ARX77-YPE80M4，ARX77-YPE90M4，ARX77-YS100M4，ARX77-YS112M4，ARX77-YS132M4，ARX77-YS160M4，ARX77-YS71M4，ARX77-YS80M4，ARX77-YS90M4，ARX77-YVB100M4，ARX77-YVB112M4，ARX77-YVB132M4，ARX77-YVB160M4，ARX77-YVB71M4，ARX77-YVB80M4，ARX77-YVB90M4，ARX77-YVP100M4，ARX77-YVP112M4，ARX77-YVP132M4，ARX77-YVP160M4，ARX77-YVP71M4，ARX77-YVP80M4，ARX77-YVP90M4，ARX77-YVPEJ100M4，ARX77-YVPEJ112M4，ARX77-YVPEJ132M4，ARX77-YVPEJ160M4，ARX77-YVPEJ71M4，ARX77-YVPEJ80M4，ARX77-YVPEJ90M4，WRX77-AM100M4，WRX77-AM112M4，WRX77-AM132M4，WRX77-AM160M4，WRX77-AM71M4，WRX77-AM80M4，WRX77-AM90M4，WRX77-Y0.18KW，WRX77-Y0.25KW，WRX77-Y0.37KW，WRX77-Y0.55KW，WRX77-Y0.75KW，WRX77-Y1.1KW，WRX77-Y1.5KW，WRX77-Y100M4，WRX77-Y112M4，WRX77-Y11KW，WRX77-Y132M4，WRX77-Y15KW，WRX77-Y160M4，WRX77-Y2.2KW，WRX77-Y3KW，WRX77-Y4KW，WRX77-Y5.5KW，WRX77-Y7.5KW，WRX77-Y71M4，WRX77-Y80M4，WRX77-Y90M4，WRX77-YB100M4，WRX77-YB112M4，WRX77-YB132M4，WRX77-YB160M4，WRX77-YB71M4，WRX77-YB80M4，WRX77-YB90M4，WRX77-YDP100M4，WRX77-YDP112M4，WRX77-YDP132M4，WRX77-YDP160M4，WRX77-YDP71M4，WRX77-YDP80M4，WRX77-YDP90M4，WRX77-YE100M4，WRX77-YE112M4，WRX77-YE132M4，WRX77-YE160M4，WRX77-YE71M4，WRX77-YE80M4，WRX77-YE90M4，WRX77-YEJ100M4，WRX77-YEJ112M4，WRX77-YEJ132M4，WRX77-YEJ160M4，WRX77-YEJ71M4，WRX77-YEJ80M4，WRX77-YEJ90M4，WRX77-YEJB100M4，WRX77-YEJB112M4，WRX77-YEJB132M4，WRX77-YEJB160M4，WRX77-YEJB71M4，WRX77-YEJB80M4，WRX77-YEJB90M4，WRX77-YP100M4，WRX77-YP112M4，WRX77-YP132M4，WRX77-YP160M4，WRX77-YP71M4，WRX77-YP80M4，WRX77-YP90M4，WRX77-YPB100M4，WRX77-YPB112M4，WRX77-YPB132M4，WRX77-YPB160M4，WRX77-YPB71M4，WRX77-YPB80M4，WRX77-YPB90M4，WRX77-YPE100M4，WRX77-YPE112M4，WRX77-YPE132M4，WRX77-YPE160M4，WRX77-YPE71M4，WRX77-YPE80M4，WRX77-YPE90M4，WRX77-YS100M4，WRX77-YS112M4，WRX77-YS132M4，WRX77-YS160M4，WRX77-YS71M4，WRX77-YS80M4，WRX77-YS90M4，WRX77-YVB100M4，WRX77-YVB112M4，WRX77-YVB132M4，WRX77-YVB160M4，WRX77-YVB71M4，WRX77-YVB80M4，WRX77-YVB90M4，WRX77-YVP100M4，WRX77-YVP112M4，WRX77-YVP132M4，WRX77-YVP160M4，WRX77-YVP71M4，WRX77-YVP80M4，WRX77-YVP90M4，WRX77-YVPEJ100M4，WRX77-YVPEJ112M4，WRX77-YVPEJ132M4，WRX77-YVPEJ160M4，WRX77-YVPEJ71M4，WRX77-YVPEJ80M4，WRX77-YVPEJ90M4，SRX77-AM100M4，SRX77-AM112M4，SRX77-AM132M4，SRX77-AM160M4，SRX77-AM71M4，SRX77-AM80M4，SRX77-AM90M4，SRX77-Y0.18KW，SRX77-Y0.25KW，SRX77-Y0.37KW，SRX77-Y0.55KW，SRX77-Y0.75KW，SRX77-Y1.1KW，SRX77-Y1.5KW，SRX77-Y100M4，SRX77-Y112M4，SRX77-Y11KW，SRX77-Y132M4，SRX77-Y15KW，SRX77-Y160M4，SRX77-Y2.2KW，SRX77-Y3KW，SRX77-Y4KW，SRX77-Y5.5KW，SRX77-Y7.5KW，SRX77-Y71M4，SRX77-Y80M4，SRX77-Y90M4，SRX77-YB100M4，SRX77-YB112M4，SRX77-YB132M4，SRX77-YB160M4，SRX77-YB71M4，SRX77-YB80M4，SRX77-YB90M4，SRX77-YDP100M4，SRX77-YDP112M4，SRX77-YDP132M4，SRX77-YDP160M4，SRX77-YDP71M4，SRX77-YDP80M4，SRX77-YDP90M4，SRX77-YE100M4，SRX77-YE112M4，SRX77-YE132M4，SRX77-YE160M4，SRX77-YE71M4，SRX77-YE80M4，SRX77-YE90M4，SRX77-YEJ100M4，SRX77-YEJ112M4，SRX77-YEJ132M4，SRX77-YEJ160M4，SRX77-YEJ71M4，SRX77-YEJ80M4，SRX77-YEJ90M4，SRX77-YEJB100M4，SRX77-YEJB112M4，SRX77-YEJB132M4，SRX77-YEJB160M4，SRX77-YEJB71M4，SRX77-YEJB80M4，SRX77-YEJB90M4，SRX77-YP100M4，SRX77-YP112M4，SRX77-YP132M4，SRX77-YP160M4，SRX77-YP71M4，SRX77-YP80M4，SRX77-YP90M4，SRX77-YPB100M4，SRX77-YPB112M4，SRX77-YPB132M4，SRX77-YPB160M4，SRX77-YPB71M4，SRX77-YPB80M4，SRX77-YPB90M4，SRX77-YPE100M4，SRX77-YPE112M4，SRX77-YPE132M4，SRX77-YPE160M4，SRX77-YPE71M4，SRX77-YPE80M4，SRX77-YPE90M4，SRX77-YS100M4，SRX77-YS112M4，SRX77-YS132M4，SRX77-YS160M4，SRX77-YS71M4，SRX77-YS80M4，SRX77-YS90M4，SRX77-YVB100M4，SRX77-YVB112M4，SRX77-YVB132M4，SRX77-YVB160M4，SRX77-YVB71M4，SRX77-YVB80M4，SRX77-YVB90M4，SRX77-YVP100M4，SRX77-YVP112M4，SRX77-YVP132M4，SRX77-YVP160M4，SRX77-YVP71M4，SRX77-YVP80M4，SRX77-YVP90M4，SRX77-YVPEJ100M4，SRX77-YVPEJ112M4，SRX77-YVPEJ132M4，SRX77-YVPEJ160M4，SRX77-YVPEJ71M4，SRX77-YVPEJ80M4，SRX77-YVPEJ90M4，RX77SF80，RX77SF90，RX77SF100，RX77SF112，RX77SF115，RX77SF140，RX77SF160，RX77SF190。
