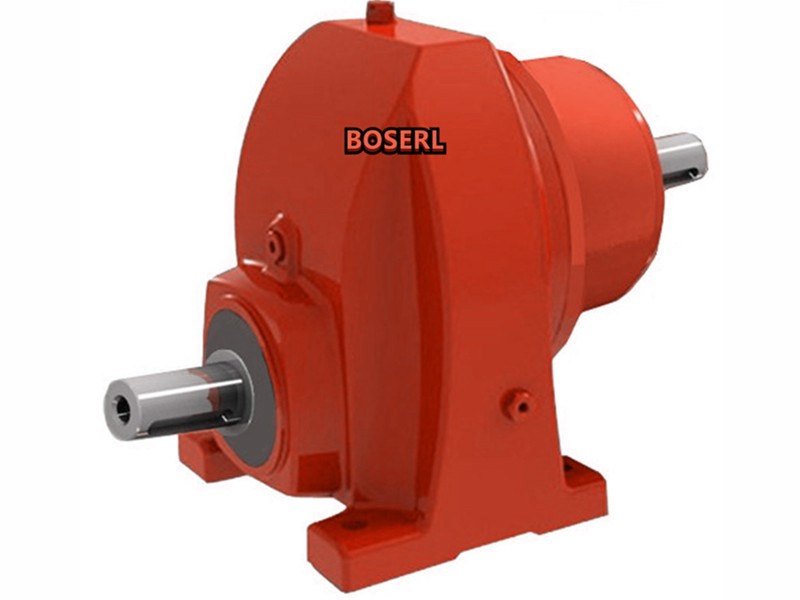

RX69減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX69減速機選型樣本。

RX69-BE4KW-4P-1.40-M2-90°

RX：系列代號

69：減速機規格代號

BE：電機

4KW：電機功率

4P：電機級數

1.40：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

RX69減速機聯軸器的安裝：

RX69減速機輸入和輸出部件，如皮帶輪、聯軸器等在運行過程中會發生飛速運轉，可能有夾傷和擠壓危險，輸入和輸出部件采用防護罩蓋板！齒輪減速電機

RX69減速機聯軸器裝配時要根據聯軸器制造商的規定進行下列校正：最大以及a最小間距；b軸向偏差；c角偏差；若事先對輸出部件涂抹潤滑油或進行短時間加熱（到80至100°C）,則可便于裝配。

采用裝配夾具進行安裝RX69減速機聯軸器：下圖為采用裝配夾具將聯軸器或輪轂安裝RX69減速機或電機的軸端上的操作示意。若能夠順利擰緊螺栓，則可以在必要情況下無須安裝裝配夾具上的推力軸承。

RX69減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將RX69減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。電機減速機一體機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。臥式減速機

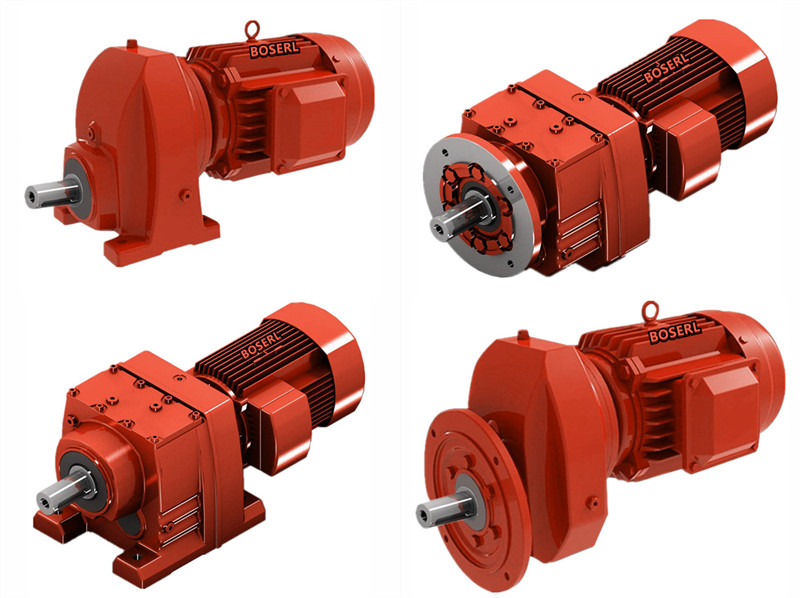

RX69減速機型號：

XDRX67-AM100M4，XDRX67-AM112M4，XDRX67-AM132M4，XDRX67-AM63M4，XDRX67-AM71M4，XDRX67-AM80M4，XDRX67-AM90M4，XDRX67-Y0.12KW，XDRX67-Y0.18KW，XDRX67-Y0.25KW，XDRX67-Y0.37KW，XDRX67-Y0.55KW，XDRX67-Y0.75KW，XDRX67-Y1.1KW，XDRX67-Y1.5KW，XDRX67-Y100M4，XDRX67-Y112M4，XDRX67-Y132M4，XDRX67-Y2.2KW，XDRX67-Y3KW，XDRX67-Y4KW，XDRX67-Y5.5KW，XDRX67-Y63M4，XDRX67-Y7.5KW，XDRX67-Y71M4，XDRX67-Y80M4，XDRX67-Y90M4，XDRX67-YB100M4，XDRX67-YB112M4，XDRX67-YB132M4，XDRX67-YB63M4，XDRX67-YB71M4，XDRX67-YB80M4，XDRX67-YB90M4，XDRX67-YDP100M4，XDRX67-YDP112M4，XDRX67-YDP132M4，XDRX67-YDP63M4，XDRX67-YDP71M4，XDRX67-YDP80M4，XDRX67-YDP90M4，XDRX67-YE100M4，XDRX67-YE112M4，XDRX67-YE132M4，XDRX67-YE63M4，XDRX67-YE71M4，XDRX67-YE80M4，XDRX67-YE90M4，XDRX67-YEJ100M4，XDRX67-YEJ112M4，XDRX67-YEJ132M4，XDRX67-YEJ63M4，XDRX67-YEJ71M4，XDRX67-YEJ80M4，XDRX67-YEJ90M4，XDRX67-YEJB100M4，XDRX67-YEJB112M4，XDRX67-YEJB132M4，XDRX67-YEJB63M4，XDRX67-YEJB71M4，XDRX67-YEJB80M4，XDRX67-YEJB90M4，XDRX67-YP100M4，XDRX67-YP112M4，XDRX67-YP132M4，XDRX67-YP63M4，XDRX67-YP71M4，XDRX67-YP80M4，XDRX67-YP90M4，XDRX67-YPB100M4，XDRX67-YPB112M4，XDRX67-YPB132M4，XDRX67-YPB63M4，XDRX67-YPB71M4，XDRX67-YPB80M4，XDRX67-YPB90M4，XDRX67-YPE100M4，XDRX67-YPE112M4，XDRX67-YPE132M4，XDRX67-YPE63M4，XDRX67-YPE71M4，XDRX67-YPE80M4，XDRX67-YPE90M4，XDRX67-YS100M4，XDRX67-YS112M4，XDRX67-YS132M4，XDRX67-YS63M4，XDRX67-YS71M4，XDRX67-YS80M4，XDRX67-YS90M4，XDRX67-YVB100M4，XDRX67-YVB112M4，XDRX67-YVB132M4，XDRX67-YVB63M4，XDRX67-YVB71M4，XDRX67-YVB80M4，XDRX67-YVB90M4，XDRX67-YVP100M4，XDRX67-YVP112M4，XDRX67-YVP132M4，XDRX67-YVP63M4，XDRX67-YVP71M4，XDRX67-YVP80M4，XDRX67-YVP90M4，XDRX67-YVPEJ100M4，XDRX67-YVPEJ112M4，XDRX67-YVPEJ132M4，XDRX67-YVPEJ63M4，XDRX67-YVPEJ71M4，XDRX67-YVPEJ80M4，XDRX67-YVPEJ90M4，RX69-AM100M4，RX69-AM112M4，RX69-AM132M4，RX69-AM63M4，RX69-AM71M4，RX69-AM80M4，RX69-AM90M4，RX69-Y0.12KW，RX69-Y0.18KW，RX69-Y0.25KW，RX69-Y0.37KW，RX69-Y0.55KW，RX69-Y0.75KW，RX69-Y1.1KW，RX69-Y1.5KW，RX69-Y100M4，RX69-Y112M4，RX69-Y132M4，RX69-Y2.2KW，RX69-Y3KW，RX69-Y4KW，RX69-Y5.5KW，RX69-Y63M4，RX69-Y7.5KW，RX69-Y71M4，RX69-Y80M4，RX69-Y90M4，RX69-YB100M4，RX69-YB112M4，RX69-YB132M4，RX69-YB63M4，RX69-YB71M4，RX69-YB80M4，RX69-YB90M4，RX69-YDP100M4，RX69-YDP112M4，RX69-YDP132M4，RX69-YDP63M4，RX69-YDP71M4，RX69-YDP80M4，RX69-YDP90M4，RX69-YE100M4，RX69-YE112M4，RX69-YE132M4，RX69-YE63M4，RX69-YE71M4，RX69-YE80M4，RX69-YE90M4，RX69-YEJ100M4，RX69-YEJ112M4，RX69-YEJ132M4，RX69-YEJ63M4，RX69-YEJ71M4，RX69-YEJ80M4，RX69-YEJ90M4，RX69-YEJB100M4，RX69-YEJB112M4，RX69-YEJB132M4，RX69-YEJB63M4，RX69-YEJB71M4，RX69-YEJB80M4，RX69-YEJB90M4，RX69-YP100M4，RX69-YP112M4，RX69-YP132M4，RX69-YP63M4，RX69-YP71M4，RX69-YP80M4，RX69-YP90M4，RX69-YPB100M4，RX69-YPB112M4，RX69-YPB132M4，RX69-YPB63M4，RX69-YPB71M4，RX69-YPB80M4，RX69-YPB90M4，RX69-YPE100M4，RX69-YPE112M4，RX69-YPE132M4，RX69-YPE63M4，RX69-YPE71M4，RX69-YPE80M4，RX69-YPE90M4，RX69-YS100M4，RX69-YS112M4，RX69-YS132M4，RX69-YS63M4，RX69-YS71M4，RX69-YS80M4，RX69-YS90M4，RX69-YVB100M4，RX69-YVB112M4，RX69-YVB132M4，RX69-YVB63M4，RX69-YVB71M4，RX69-YVB80M4，RX69-YVB90M4，RX69-YVP100M4，RX69-YVP112M4，RX69-YVP132M4，RX69-YVP63M4，RX69-YVP71M4，RX69-YVP80M4，RX69-YVP90M4，RX69-YVPEJ100M4，RX69-YVPEJ112M4，RX69-YVPEJ132M4，RX69-YVPEJ63M4，RX69-YVPEJ71M4，RX69-YVPEJ80M4，RX69-YVPEJ90M4，RWX67-AM100M4，RWX67-AM112M4，RWX67-AM132M4，RWX67-AM63M4，RWX67-AM71M4，RWX67-AM80M4，RWX67-AM90M4，RWX67-Y0.12KW，RWX67-Y0.18KW，RWX67-Y0.25KW，RWX67-Y0.37KW，RWX67-Y0.55KW，RWX67-Y0.75KW，RWX67-Y1.1KW，RWX67-Y1.5KW，RWX67-Y100M4，RWX67-Y112M4，RWX67-Y132M4，RWX67-Y2.2KW，RWX67-Y3KW，RWX67-Y4KW，RWX67-Y5.5KW，RWX67-Y63M4，RWX67-Y7.5KW，RWX67-Y71M4，RWX67-Y80M4，RWX67-Y90M4，RWX67-YB100M4，RWX67-YB112M4，RWX67-YB132M4，RWX67-YB63M4，RWX67-YB71M4，RWX67-YB80M4，RWX67-YB90M4，RWX67-YDP100M4，RWX67-YDP112M4，RWX67-YDP132M4，RWX67-YDP63M4，RWX67-YDP71M4，RWX67-YDP80M4，RWX67-YDP90M4，RWX67-YE100M4，RWX67-YE112M4，RWX67-YE132M4，RWX67-YE63M4，RWX67-YE71M4，RWX67-YE80M4，RWX67-YE90M4，RWX67-YEJ100M4，RWX67-YEJ112M4，RWX67-YEJ132M4，RWX67-YEJ63M4，RWX67-YEJ71M4，RWX67-YEJ80M4，RWX67-YEJ90M4，RWX67-YEJB100M4，RWX67-YEJB112M4，RWX67-YEJB132M4，RWX67-YEJB63M4，RWX67-YEJB71M4，RWX67-YEJB80M4，RWX67-YEJB90M4，RWX67-YP100M4，RWX67-YP112M4，RWX67-YP132M4，RWX67-YP63M4，RWX67-YP71M4，RWX67-YP80M4，RWX67-YP90M4，RWX67-YPB100M4，RWX67-YPB112M4，RWX67-YPB132M4，RWX67-YPB63M4，RWX67-YPB71M4，RWX67-YPB80M4，RWX67-YPB90M4，RWX67-YPE100M4，RWX67-YPE112M4，RWX67-YPE132M4，RWX67-YPE63M4，RWX67-YPE71M4，RWX67-YPE80M4，RWX67-YPE90M4，RWX67-YS100M4，RWX67-YS112M4，RWX67-YS132M4，RWX67-YS63M4，RWX67-YS71M4，RWX67-YS80M4，RWX67-YS90M4，RWX67-YVB100M4，RWX67-YVB112M4，RWX67-YVB132M4，RWX67-YVB63M4，RWX67-YVB71M4，RWX67-YVB80M4，RWX67-YVB90M4，RWX67-YVP100M4，RWX67-YVP112M4，RWX67-YVP132M4，RWX67-YVP63M4，RWX67-YVP71M4，RWX67-YVP80M4，RWX67-YVP90M4，RWX67-YVPEJ100M4，RWX67-YVPEJ112M4，RWX67-YVPEJ132M4，RWX67-YVPEJ63M4，RWX67-YVPEJ71M4，RWX67-YVPEJ80M4，RWX67-YVPEJ90M4，YQRX67-AM100M4，YQRX67-AM112M4，YQRX67-AM132M4，YQRX67-AM63M4，YQRX67-AM71M4，YQRX67-AM80M4，YQRX67-AM90M4，YQRX67-Y0.12KW，YQRX67-Y0.18KW，YQRX67-Y0.25KW，YQRX67-Y0.37KW，YQRX67-Y0.55KW，YQRX67-Y0.75KW，YQRX67-Y1.1KW，YQRX67-Y1.5KW，YQRX67-Y100M4，YQRX67-Y112M4，YQRX67-Y132M4，YQRX67-Y2.2KW，YQRX67-Y3KW，YQRX67-Y4KW，YQRX67-Y5.5KW，YQRX67-Y63M4，YQRX67-Y7.5KW，YQRX67-Y71M4，YQRX67-Y80M4，YQRX67-Y90M4，YQRX67-YB100M4，YQRX67-YB112M4，YQRX67-YB132M4，YQRX67-YB63M4，YQRX67-YB71M4，YQRX67-YB80M4，YQRX67-YB90M4，YQRX67-YDP100M4，YQRX67-YDP112M4，YQRX67-YDP132M4，YQRX67-YDP63M4，YQRX67-YDP71M4，YQRX67-YDP80M4，YQRX67-YDP90M4，YQRX67-YE100M4，YQRX67-YE112M4，YQRX67-YE132M4，YQRX67-YE63M4，YQRX67-YE71M4，YQRX67-YE80M4，YQRX67-YE90M4，YQRX67-YEJ100M4，YQRX67-YEJ112M4，YQRX67-YEJ132M4，YQRX67-YEJ63M4，YQRX67-YEJ71M4，YQRX67-YEJ80M4，YQRX67-YEJ90M4，YQRX67-YEJB100M4，YQRX67-YEJB112M4，YQRX67-YEJB132M4，YQRX67-YEJB63M4，YQRX67-YEJB71M4，YQRX67-YEJB80M4，YQRX67-YEJB90M4，YQRX67-YP100M4，YQRX67-YP112M4，YQRX67-YP132M4，YQRX67-YP63M4，YQRX67-YP71M4，YQRX67-YP80M4，YQRX67-YP90M4，YQRX67-YPB100M4，YQRX67-YPB112M4，YQRX67-YPB132M4，YQRX67-YPB63M4，YQRX67-YPB71M4，YQRX67-YPB80M4，YQRX67-YPB90M4，YQRX67-YPE100M4，YQRX67-YPE112M4，YQRX67-YPE132M4，YQRX67-YPE63M4，YQRX67-YPE71M4，YQRX67-YPE80M4，YQRX67-YPE90M4，YQRX67-YS100M4，YQRX67-YS112M4，YQRX67-YS132M4，YQRX67-YS63M4，YQRX67-YS71M4，YQRX67-YS80M4，YQRX67-YS90M4，YQRX67-YVB100M4，YQRX67-YVB112M4，YQRX67-YVB132M4，YQRX67-YVB63M4，YQRX67-YVB71M4，YQRX67-YVB80M4，YQRX67-YVB90M4，YQRX67-YVP100M4，YQRX67-YVP112M4，YQRX67-YVP132M4，YQRX67-YVP63M4，YQRX67-YVP71M4，YQRX67-YVP80M4，YQRX67-YVP90M4，YQRX67-YVPEJ100M4，YQRX67-YVPEJ112M4，YQRX67-YVPEJ132M4，YQRX67-YVPEJ63M4，YQRX67-YVPEJ71M4，YQRX67-YVPEJ80M4，YQRX67-YVPEJ90M4，JCRX67-AM100M4，JCRX67-AM112M4，JCRX67-AM132M4，JCRX67-AM63M4，JCRX67-AM71M4，JCRX67-AM80M4，JCRX67-AM90M4，JCRX67-Y0.12KW，JCRX67-Y0.18KW，JCRX67-Y0.25KW，JCRX67-Y0.37KW，JCRX67-Y0.55KW，JCRX67-Y0.75KW，JCRX67-Y1.1KW，JCRX67-Y1.5KW，JCRX67-Y100M4，JCRX67-Y112M4，JCRX67-Y132M4，JCRX67-Y2.2KW，JCRX67-Y3KW，JCRX67-Y4KW，JCRX67-Y5.5KW，JCRX67-Y63M4，JCRX67-Y7.5KW，JCRX67-Y71M4，JCRX67-Y80M4，JCRX67-Y90M4，JCRX67-YB100M4，JCRX67-YB112M4，JCRX67-YB132M4，JCRX67-YB63M4，JCRX67-YB71M4，JCRX67-YB80M4，JCRX67-YB90M4，JCRX67-YDP100M4，JCRX67-YDP112M4，JCRX67-YDP132M4，JCRX67-YDP63M4，JCRX67-YDP71M4，JCRX67-YDP80M4，JCRX67-YDP90M4，JCRX67-YE100M4，JCRX67-YE112M4，JCRX67-YE132M4，JCRX67-YE63M4，JCRX67-YE71M4，JCRX67-YE80M4，JCRX67-YE90M4，JCRX67-YEJ100M4，JCRX67-YEJ112M4，JCRX67-YEJ132M4，JCRX67-YEJ63M4，JCRX67-YEJ71M4，JCRX67-YEJ80M4，JCRX67-YEJ90M4，JCRX67-YEJB100M4，JCRX67-YEJB112M4，JCRX67-YEJB132M4，JCRX67-YEJB63M4，JCRX67-YEJB71M4，JCRX67-YEJB80M4，JCRX67-YEJB90M4，JCRX67-YP100M4，JCRX67-YP112M4，JCRX67-YP132M4，JCRX67-YP63M4，JCRX67-YP71M4，JCRX67-YP80M4，JCRX67-YP90M4，JCRX67-YPB100M4，JCRX67-YPB112M4，JCRX67-YPB132M4，JCRX67-YPB63M4，JCRX67-YPB71M4，JCRX67-YPB80M4，JCRX67-YPB90M4，JCRX67-YPE100M4，JCRX67-YPE112M4，JCRX67-YPE132M4，JCRX67-YPE63M4，JCRX67-YPE71M4，JCRX67-YPE80M4，JCRX67-YPE90M4，JCRX67-YS100M4，JCRX67-YS112M4，JCRX67-YS132M4，JCRX67-YS63M4，JCRX67-YS71M4，JCRX67-YS80M4，JCRX67-YS90M4，JCRX67-YVB100M4，JCRX67-YVB112M4，JCRX67-YVB132M4，JCRX67-YVB63M4，JCRX67-YVB71M4，JCRX67-YVB80M4，JCRX67-YVB90M4，JCRX67-YVP100M4，JCRX67-YVP112M4，JCRX67-YVP132M4，JCRX67-YVP63M4，JCRX67-YVP71M4，JCRX67-YVP80M4，JCRX67-YVP90M4，JCRX67-YVPEJ100M4，JCRX67-YVPEJ112M4，JCRX67-YVPEJ132M4，JCRX67-YVPEJ63M4，JCRX67-YVPEJ71M4，JCRX67-YVPEJ80M4，JCRX67-YVPEJ90M4。

RX69減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-rxxiliejiansuji-cn.html

推薦類似型號：R69減速機
