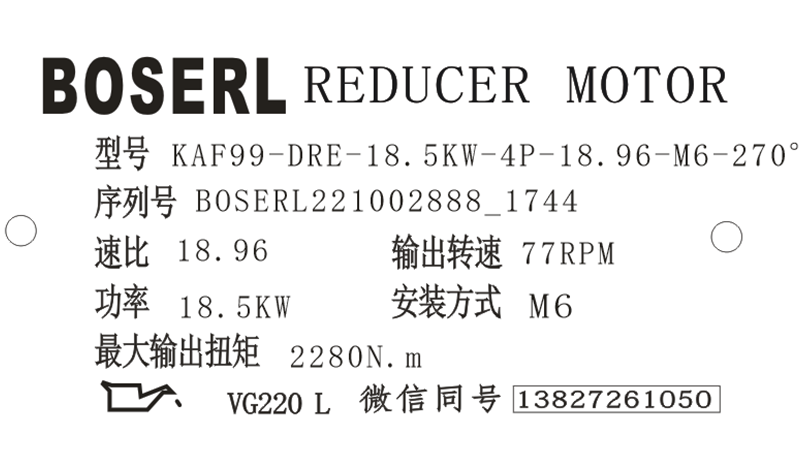

KAF99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KAF99減速機選型樣本。

KAF99-DRE-18.5KW-4P-18.96-M6-270°

KAF：系列代號

99：減速機規格代號

DRE：電機

18.5KW：電機功率

4P：電機級數

18.96：減速機傳動比

M6：減速機安裝位置

270°：接線盒位置

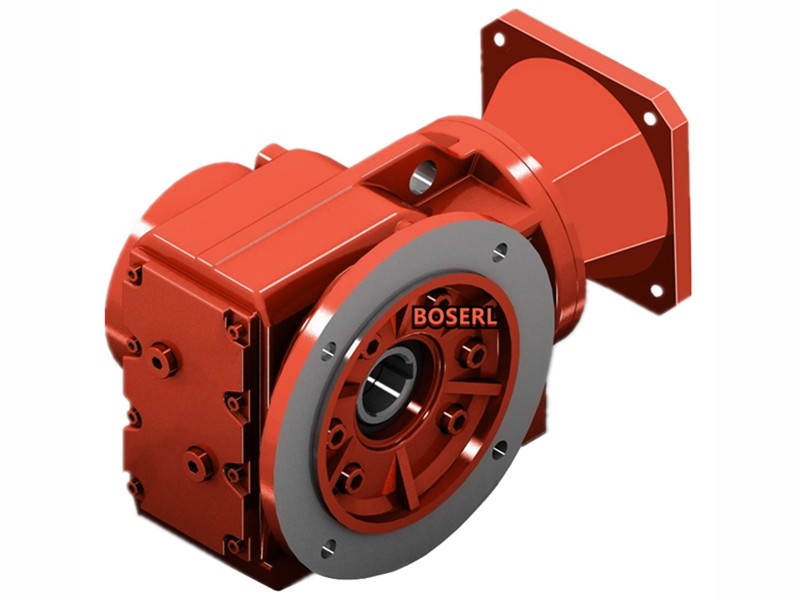

KAF99減速機AD軸入模塊配置：

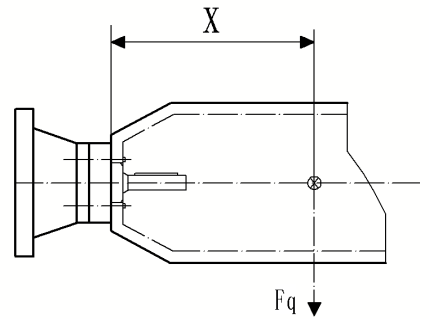

KAF99減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，F(xiàn)qmax不增加；聯軸器輸出法蘭盤直徑：160mm。齒輪減速電機

KAF99減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當?shù)竭_(dá)最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。二級減速機

KAF99減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

KAF99減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。

KAF99減速機維護檢查：

KAF99減速機潤滑油更換周期：下圖為在一般條件下標準KAF99減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。

KAF99減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。直角減速機

KAF99減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的KAF99減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

KAF99減速機型號：

WKAF97-Y1.1SKAF，WKAF97-Y1.5SKAF，WKAF97-Y100M4，WKAF97-Y112M4，WKAF97-Y11SKAF，WKAF97-Y132M4，WKAF97-Y15SKAF，WKAF97-Y160M4，WKAF97-Y18.5SKAF，WKAF97-Y180M4，WKAF97-Y2.2SKAF，WKAF97-Y200M4，WKAF97-Y22SKAF，WKAF97-Y30SKAF，WKAF97-Y3SKAF，WKAF97-Y4SKAF，WKAF97-Y5.5SKAF，WKAF97-Y7.5SKAF，WKAF97-Y80M4，WKAF97-Y90M4，WKAF97-YB100M4，WKAF97-YB112M4，WKAF97-YB132M4，WKAF97-YB160M4，WKAF97-YB180M4，WKAF97-YB200M4，WKAF97-YB80M4，WKAF97-YB90M4，WKAF97-YDP100M4，WKAF97-YDP112M4，WKAF97-YDP132M4，WKAF97-YDP160M4，WKAF97-YDP180M4，WKAF97-YDP200M4，WKAF97-YDP80M4，WKAF97-YDP90M4，WKAF97-YE100M4，WKAF97-YE112M4，WKAF97-YE132M4，WKAF97-YE160M4，WKAF97-YE180M4，WKAF97-YE200M4，WKAF97-YE80M4，WKAF97-YE90M4，WKAF97-YEJ100M4，WKAF97-YEJ112M4，WKAF97-YEJ132M4，WKAF97-YEJ160M4，WKAF97-YEJ180M4，WKAF97-YEJ200M4，WKAF97-YEJ80M4，WKAF97-YEJ90M4，WKAF97-YEJB100M4，WKAF97-YEJB112M4，WKAF97-YEJB132M4，WKAF97-YEJB160M4，WKAF97-YEJB180M4，WKAF97-YEJB200M4，WKAF97-YEJB80M4，WKAF97-YEJB90M4，WKAF97-YP100M4，WKAF97-YP112M4，WKAF97-YP132M4，WKAF97-YP160M4，WKAF97-YP180M4，WKAF97-YP200M4，WKAF97-YP80M4，WKAF97-YP90M4，WKAF97-YPB100M4，WKAF97-YPB112M4，WKAF97-YPB132M4，WKAF97-YPB160M4，WKAF97-YPB180M4，WKAF97-YPB200M4，WKAF97-YPB80M4，WKAF97-YPB90M4，WKAF97-YPE100M4，WKAF97-YPE112M4，WKAF97-YPE132M4，WKAF97-YPE160M4，WKAF97-YPE180M4，WKAF97-YPE200M4，WKAF97-YPE80M4，WKAF97-YPE90M4，WKAF97-YS100M4，WKAF97-YS112M4，WKAF97-YS132M4，WKAF97-YS160M4，WKAF97-YS180M4，WKAF97-YS200M4，WKAF97-YS80M4，WKAF97-YS90M4，WKAF97-YVB100M4，WKAF97-YVB112M4，WKAF97-YVB132M4，WKAF97-YVB160M4，WKAF97-YVB180M4，WKAF97-YVB200M4，WKAF97-YVB80M4，WKAF97-YVB90M4，WKAF97-YVP100M4，WKAF97-YVP112M4，WKAF97-YVP132M4，WKAF97-YVP160M4，WKAF97-YVP180M4，WKAF97-YVP200M4，WKAF97-YVP80M4，WKAF97-YVP90M4，WKAF97-YVPEJ100M4，WKAF97-YVPEJ112M4，WKAF97-YVPEJ132M4，WKAF97-YVPEJ160M4，WKAF97-YVPEJ180M4，WKAF97-YVPEJ200M4，WKAF97-YVPEJ80M4，WKAF97-YVPEJ90M4，SKAF97-Y1.1SKAF，SKAF97-Y1.5SKAF，SKAF97-Y100M4，SKAF97-Y112M4，SKAF97-Y11SKAF，SKAF97-Y132M4，SKAF97-Y15SKAF，SKAF97-Y160M4，SKAF97-Y18.5SKAF，SKAF97-Y180M4，SKAF97-Y2.2SKAF，SKAF97-Y200M4，SKAF97-Y22SKAF，SKAF97-Y30SKAF，SKAF97-Y3SKAF，SKAF97-Y4SKAF，SKAF97-Y5.5SKAF，SKAF97-Y7.5SKAF，SKAF97-Y80M4，SKAF97-Y90M4，SKAF97-YB100M4，SKAF97-YB112M4，SKAF97-YB132M4，SKAF97-YB160M4，SKAF97-YB180M4，SKAF97-YB200M4，SKAF97-YB80M4，SKAF97-YB90M4，SKAF97-YDP100M4，SKAF97-YDP112M4，SKAF97-YDP132M4，SKAF97-YDP160M4，SKAF97-YDP180M4，SKAF97-YDP200M4，SKAF97-YDP80M4，SKAF97-YDP90M4，SKAF97-YE100M4，SKAF97-YE112M4，SKAF97-YE132M4，SKAF97-YE160M4，SKAF97-YE180M4，SKAF97-YE200M4，SKAF97-YE80M4，SKAF97-YE90M4，SKAF97-YEJ100M4，SKAF97-YEJ112M4，SKAF97-YEJ132M4，SKAF97-YEJ160M4，SKAF97-YEJ180M4，SKAF97-YEJ200M4，SKAF97-YEJ80M4，SKAF97-YEJ90M4，SKAF97-YEJB100M4，SKAF97-YEJB112M4，SKAF97-YEJB132M4，SKAF97-YEJB160M4，SKAF97-YEJB180M4，SKAF97-YEJB200M4，SKAF97-YEJB80M4，SKAF97-YEJB90M4，SKAF97-YP100M4，SKAF97-YP112M4，SKAF97-YP132M4，SKAF97-YP160M4，SKAF97-YP180M4，SKAF97-YP200M4，SKAF97-YP80M4，SKAF97-YP90M4，SKAF97-YPB100M4，SKAF97-YPB112M4，SKAF97-YPB132M4，SKAF97-YPB160M4，SKAF97-YPB180M4，SKAF97-YPB200M4，SKAF97-YPB80M4，SKAF97-YPB90M4，SKAF97-YPE100M4，SKAF97-YPE112M4，SKAF97-YPE132M4，SKAF97-YPE160M4，SKAF97-YPE180M4，SKAF97-YPE200M4，SKAF97-YPE80M4，SKAF97-YPE90M4，SKAF97-YS100M4，SKAF97-YS112M4，SKAF97-YS132M4，SKAF97-YS160M4，SKAF97-YS180M4，SKAF97-YS200M4，SKAF97-YS80M4，SKAF97-YS90M4，SKAF97-YVB100M4，SKAF97-YVB112M4，SKAF97-YVB132M4，SKAF97-YVB160M4，SKAF97-YVB180M4，SKAF97-YVB200M4，SKAF97-YVB80M4，SKAF97-YVB90M4，SKAF97-YVP100M4，SKAF97-YVP112M4，SKAF97-YVP132M4，SKAF97-YVP160M4，SKAF97-YVP180M4，SKAF97-YVP200M4，SKAF97-YVP80M4，SKAF97-YVP90M4，SKAF97-YVPEJ100M4，SKAF97-YVPEJ112M4，SKAF97-YVPEJ132M4，SKAF97-YVPEJ160M4，SKAF97-YVPEJ180M4，SKAF97-YVPEJ200M4，SKAF97-YVPEJ80M4，SKAF97-YVPEJ90M4，AKAF97-Y1.1SKAF，AKAF97-Y1.5SKAF，AKAF97-Y100M4，AKAF97-Y112M4，AKAF97-Y11SKAF，AKAF97-Y132M4，AKAF97-Y15SKAF，AKAF97-Y160M4，AKAF97-Y18.5SKAF，AKAF97-Y180M4，AKAF97-Y2.2SKAF，AKAF97-Y200M4，AKAF97-Y22SKAF，AKAF97-Y30SKAF，AKAF97-Y3SKAF，AKAF97-Y4SKAF，AKAF97-Y5.5SKAF，AKAF97-Y7.5SKAF，AKAF97-Y80M4，AKAF97-Y90M4，AKAF97-YB100M4，AKAF97-YB112M4，AKAF97-YB132M4，AKAF97-YB160M4，AKAF97-YB180M4，AKAF97-YB200M4，AKAF97-YB80M4，AKAF97-YB90M4，AKAF97-YDP100M4，AKAF97-YDP112M4，AKAF97-YDP132M4，AKAF97-YDP160M4，AKAF97-YDP180M4，AKAF97-YDP200M4，AKAF97-YDP80M4，AKAF97-YDP90M4，AKAF97-YE100M4，AKAF97-YE112M4，AKAF97-YE132M4，AKAF97-YE160M4，AKAF97-YE180M4，AKAF97-YE200M4，AKAF97-YE80M4，AKAF97-YE90M4，AKAF97-YEJ100M4，AKAF97-YEJ112M4，AKAF97-YEJ132M4，AKAF97-YEJ160M4，AKAF97-YEJ180M4，AKAF97-YEJ200M4，AKAF97-YEJ80M4，AKAF97-YEJ90M4，AKAF97-YEJB100M4，AKAF97-YEJB112M4，AKAF97-YEJB132M4，AKAF97-YEJB160M4，AKAF97-YEJB180M4，AKAF97-YEJB200M4，AKAF97-YEJB80M4，AKAF97-YEJB90M4，AKAF97-YP100M4，AKAF97-YP112M4，AKAF97-YP132M4，AKAF97-YP160M4，AKAF97-YP180M4，AKAF97-YP200M4，AKAF97-YP80M4，AKAF97-YP90M4，AKAF97-YPB100M4，AKAF97-YPB112M4，AKAF97-YPB132M4，AKAF97-YPB160M4，AKAF97-YPB180M4，AKAF97-YPB200M4，AKAF97-YPB80M4，AKAF97-YPB90M4，AKAF97-YPE100M4，AKAF97-YPE112M4，AKAF97-YPE132M4，AKAF97-YPE160M4，AKAF97-YPE180M4，AKAF97-YPE200M4，AKAF97-YPE80M4，AKAF97-YPE90M4，AKAF97-YS100M4，AKAF97-YS112M4，AKAF97-YS132M4，AKAF97-YS160M4，AKAF97-YS180M4，AKAF97-YS200M4，AKAF97-YS80M4，AKAF97-YS90M4，AKAF97-YVB100M4，AKAF97-YVB112M4，AKAF97-YVB132M4，AKAF97-YVB160M4，AKAF97-YVB180M4，AKAF97-YVB200M4，AKAF97-YVB80M4，AKAF97-YVB90M4，AKAF97-YVP100M4，AKAF97-YVP112M4，AKAF97-YVP132M4，AKAF97-YVP160M4，AKAF97-YVP180M4，AKAF97-YVP200M4，AKAF97-YVP80M4，AKAF97-YVP90M4，AKAF97-YVPEJ100M4，AKAF97-YVPEJ112M4，AKAF97-YVPEJ132M4，AKAF97-YVPEJ160M4，AKAF97-YVPEJ180M4，AKAF97-YVPEJ200M4，AKAF97-YVPEJ80M4，AKAF97-YVPEJ90M4，NKAF97-Y1.1SKAF，NKAF97-Y1.5SKAF，NKAF97-Y100M4，NKAF97-Y112M4，NKAF97-Y11SKAF，NKAF97-Y132M4，NKAF97-Y15SKAF，NKAF97-Y160M4，NKAF97-Y18.5SKAF，NKAF97-Y180M4，NKAF97-Y2.2SKAF，NKAF97-Y200M4，NKAF97-Y22SKAF，NKAF97-Y30SKAF，NKAF97-Y3SKAF，NKAF97-Y4SKAF，NKAF97-Y5.5SKAF，NKAF97-Y7.5SKAF，NKAF97-Y80M4，NKAF97-Y90M4，NKAF97-YB100M4，NKAF97-YB112M4，NKAF97-YB132M4，NKAF97-YB160M4，NKAF97-YB180M4，NKAF97-YB200M4，NKAF97-YB80M4，NKAF97-YB90M4，NKAF97-YDP100M4，NKAF97-YDP112M4，NKAF97-YDP132M4，NKAF97-YDP160M4，NKAF97-YDP180M4，NKAF97-YDP200M4，NKAF97-YDP80M4，NKAF97-YDP90M4，NKAF97-YE100M4，NKAF97-YE112M4，NKAF97-YE132M4，NKAF97-YE160M4，NKAF97-YE180M4，NKAF97-YE200M4，NKAF97-YE80M4，NKAF97-YE90M4，NKAF97-YEJ100M4，NKAF97-YEJ112M4，NKAF97-YEJ132M4，NKAF97-YEJ160M4，NKAF97-YEJ180M4，NKAF97-YEJ200M4，NKAF97-YEJ80M4，NKAF97-YEJ90M4，NKAF97-YEJB100M4，NKAF97-YEJB112M4，NKAF97-YEJB132M4，NKAF97-YEJB160M4，NKAF97-YEJB180M4，NKAF97-YEJB200M4，NKAF97-YEJB80M4，NKAF97-YEJB90M4，NKAF97-YP100M4，NKAF97-YP112M4，NKAF97-YP132M4，NKAF97-YP160M4，NKAF97-YP180M4，NKAF97-YP200M4，NKAF97-YP80M4，NKAF97-YP90M4，NKAF97-YPB100M4，NKAF97-YPB112M4，NKAF97-YPB132M4，NKAF97-YPB160M4，NKAF97-YPB180M4，NKAF97-YPB200M4，NKAF97-YPB80M4，NKAF97-YPB90M4，NKAF97-YPE100M4，NKAF97-YPE112M4，NKAF97-YPE132M4，NKAF97-YPE160M4，NKAF97-YPE180M4，NKAF97-YPE200M4，NKAF97-YPE80M4，NKAF97-YPE90M4，NKAF97-YS100M4，NKAF97-YS112M4，NKAF97-YS132M4，NKAF97-YS160M4，NKAF97-YS180M4，NKAF97-YS200M4，NKAF97-YS80M4，NKAF97-YS90M4，NKAF97-YVB100M4，NKAF97-YVB112M4，NKAF97-YVB132M4，NKAF97-YVB160M4，NKAF97-YVB180M4，NKAF97-YVB200M4，NKAF97-YVB80M4，NKAF97-YVB90M4，NKAF97-YVP100M4，NKAF97-YVP112M4，NKAF97-YVP132M4，NKAF97-YVP160M4，NKAF97-YVP180M4，NKAF97-YVP200M4，NKAF97-YVP80M4，NKAF97-YVP90M4，NKAF97-YVPEJ100M4，NKAF97-YVPEJ112M4，NKAF97-YVPEJ132M4，NKAF97-YVPEJ160M4，NKAF97-YVPEJ180M4，NKAF97-YVPEJ200M4，NKAF97-YVPEJ80M4，NKAF97-YVPEJ90M4，GKAF99-Y1.1SKAF，GKAF99-Y1.5SKAF，GKAF99-Y100M4，GKAF99-Y112M4，GKAF99-Y11SKAF，GKAF99-Y132M4，GKAF99-Y15SKAF，GKAF99-Y160M4，GKAF99-Y18.5SKAF，GKAF99-Y180M4，GKAF99-Y2.2SKAF，GKAF99-Y200M4，GKAF99-Y22SKAF，GKAF99-Y30SKAF，GKAF99-Y3SKAF，GKAF99-Y4SKAF，GKAF99-Y5.5SKAF，GKAF99-Y7.5SKAF，GKAF99-Y80M4，GKAF99-Y90M4，GKAF99-YB100M4，GKAF99-YB112M4，GKAF99-YB132M4，GKAF99-YB160M4，GKAF99-YB180M4，GKAF99-YB200M4，GKAF99-YB80M4，GKAF99-YB90M4，GKAF99-YDP100M4，GKAF99-YDP112M4，GKAF99-YDP132M4，GKAF99-YDP160M4，GKAF99-YDP180M4，GKAF99-YDP200M4，GKAF99-YDP80M4，GKAF99-YDP90M4，GKAF99-YE100M4，GKAF99-YE112M4，GKAF99-YE132M4，GKAF99-YE160M4，GKAF99-YE180M4，GKAF99-YE200M4，GKAF99-YE80M4，GKAF99-YE90M4，GKAF99-YEJ100M4，GKAF99-YEJ112M4，GKAF99-YEJ132M4，GKAF99-YEJ160M4，GKAF99-YEJ180M4，GKAF99-YEJ200M4，GKAF99-YEJ80M4，GKAF99-YEJ90M4，GKAF99-YEJB100M4，GKAF99-YEJB112M4，GKAF99-YEJB132M4，GKAF99-YEJB160M4，GKAF99-YEJB180M4，GKAF99-YEJB200M4，GKAF99-YEJB80M4，GKAF99-YEJB90M4，GKAF99-YP100M4，GKAF99-YP112M4，GKAF99-YP132M4，GKAF99-YP160M4，GKAF99-YP180M4，GKAF99-YP200M4，GKAF99-YP80M4，GKAF99-YP90M4，GKAF99-YPB100M4，GKAF99-YPB112M4，GKAF99-YPB132M4，GKAF99-YPB160M4，GKAF99-YPB180M4，GKAF99-YPB200M4，GKAF99-YPB80M4，GKAF99-YPB90M4，GKAF99-YPE100M4，GKAF99-YPE112M4，GKAF99-YPE132M4，GKAF99-YPE160M4，GKAF99-YPE180M4，GKAF99-YPE200M4，GKAF99-YPE80M4，GKAF99-YPE90M4，GKAF99-YS100M4，GKAF99-YS112M4，GKAF99-YS132M4，GKAF99-YS160M4，GKAF99-YS180M4，GKAF99-YS200M4，GKAF99-YS80M4，GKAF99-YS90M4，GKAF99-YVB100M4，GKAF99-YVB112M4，GKAF99-YVB132M4，GKAF99-YVB160M4，GKAF99-YVB180M4，GKAF99-YVB200M4，GKAF99-YVB80M4，GKAF99-YVB90M4，GKAF99-YVP100M4，GKAF99-YVP112M4，GKAF99-YVP132M4，GKAF99-YVP160M4，GKAF99-YVP180M4，GKAF99-YVP200M4，GKAF99-YVP80M4，GKAF99-YVP90M4，GKAF99-YVPEJ100M4，GKAF99-YVPEJ112M4，GKAF99-YVPEJ132M4，GKAF99-YVPEJ160M4，GKAF99-YVPEJ180M4，GKAF99-YVPEJ200M4，GKAF99-YVPEJ80M4，GKAF99-YVPEJ90M4。

KAF99減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-kafxiliejiansuji-cn.html

推薦類似型號：K99減速機
