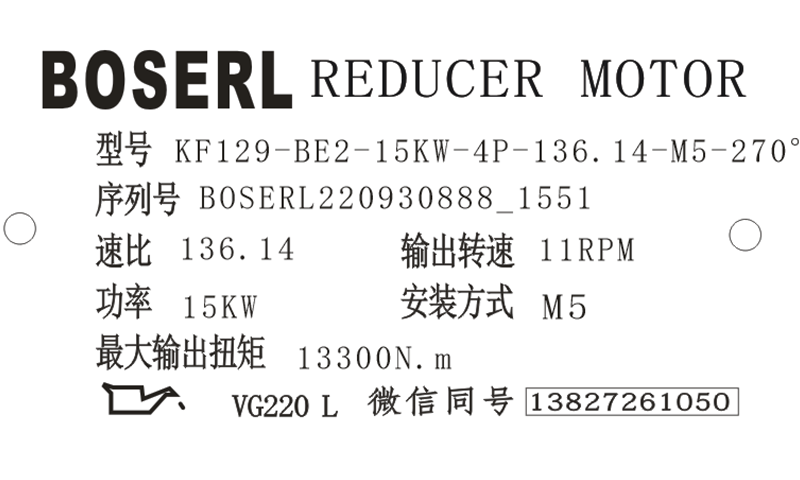

KF129減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF129減速器選型樣本。

KF129-BE2-15KW-4P-136.14-M5-270°

KF：系列代號

129：減速機規格代號

BE2：電機

15KW：電機功率

4P：電機級數

136.14：減速機傳動比

M5：減速機安裝位置

270°：接線盒位置

KF129減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動KF129減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

KF129減速器安裝操作的正確方法：

KF129減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

KF129減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的KF129減速器選型樣本”）。直角減速機

KF129減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

KF129減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列KF129減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的KF129減速器，啟動KF129減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機

KF129減速器型號：

KWF127-Y112M4，KWF127-Y11KWF，KWF127-Y132M4，KWF127-Y15KWF，KWF127-Y160M4，KWF127-Y18.5KWF，KWF127-Y180M4，KWF127-Y200M4，KWF127-Y225M4，KWF127-Y22KWF，KWF127-Y250M4，KWF127-Y280M4，KWF127-Y30KWF，KWF127-Y37KWF，KWF127-Y45KWF，KWF127-Y4KWF，KWF127-Y5.5KWF，KWF127-Y55KWF，KWF127-Y7.5KWF，KWF127-Y75KWF，KWF127-YB112M4，KWF127-YB132M4，KWF127-YB160M4，KWF127-YB180M4，KWF127-YB200M4，KWF127-YB225M4，KWF127-YB250M4，KWF127-YB280M4，KWF127-YDP112M4，KWF127-YDP132M4，KWF127-YDP160M4，KWF127-YDP180M4，KWF127-YDP200M4，KWF127-YDP225M4，KWF127-YDP250M4，KWF127-YDP280M4，KWF127-YE112M4，KWF127-YE132M4，KWF127-YE160M4，KWF127-YE180M4，KWF127-YE200M4，KWF127-YE225M4，KWF127-YE250M4，KWF127-YE280M4，KWF127-YEJ112M4，KWF127-YEJ132M4，KWF127-YEJ160M4，KWF127-YEJ180M4，KWF127-YEJ200M4，KWF127-YEJ225M4，KWF127-YEJ250M4，KWF127-YEJ280M4，KWF127-YEJB112M4，KWF127-YEJB132M4，KWF127-YEJB160M4，KWF127-YEJB180M4，KWF127-YEJB200M4，KWF127-YEJB225M4，KWF127-YEJB250M4，KWF127-YEJB280M4，KWF127-YP112M4，KWF127-YP132M4，KWF127-YP160M4，KWF127-YP180M4，KWF127-YP200M4，KWF127-YP225M4，KWF127-YP250M4，KWF127-YP280M4，KWF127-YPB112M4，KWF127-YPB132M4，KWF127-YPB160M4，KWF127-YPB180M4，KWF127-YPB200M4，KWF127-YPB225M4，KWF127-YPB250M4，KWF127-YPB280M4，KWF127-YPE112M4，KWF127-YPE132M4，KWF127-YPE160M4，KWF127-YPE180M4，KWF127-YPE200M4，KWF127-YPE225M4，KWF127-YPE250M4，KWF127-YPE280M4，KWF127-YS112M4，KWF127-YS132M4，KWF127-YS160M4，KWF127-YS180M4，KWF127-YS200M4，KWF127-YS225M4，KWF127-YS250M4，KWF127-YS280M4，KWF127-YVB112M4，KWF127-YVB132M4，KWF127-YVB160M4，KWF127-YVB180M4，KWF127-YVB200M4，KWF127-YVB225M4，KWF127-YVB250M4，KWF127-YVB280M4，KWF127-YVP112M4，KWF127-YVP132M4，KWF127-YVP160M4，KWF127-YVP180M4，KWF127-YVP200M4，KWF127-YVP225M4，KWF127-YVP250M4，KWF127-YVP280M4，KWF127-YVPEJ112M4，KWF127-YVPEJ132M4，KWF127-YVPEJ160M4，KWF127-YVPEJ180M4，KWF127-YVPEJ200M4，KWF127-YVPEJ225M4，KWF127-YVPEJ250M4，KWF127-YVPEJ280M4，XDKF127-Y112M4，XDKF127-Y11KWF，XDKF127-Y132M4，XDKF127-Y15KWF，XDKF127-Y160M4，XDKF127-Y18.5KWF，XDKF127-Y180M4，XDKF127-Y200M4，XDKF127-Y225M4，XDKF127-Y22KWF，XDKF127-Y250M4，XDKF127-Y280M4，XDKF127-Y30KWF，XDKF127-Y37KWF，XDKF127-Y45KWF，XDKF127-Y4KWF，XDKF127-Y5.5KWF，XDKF127-Y55KWF，XDKF127-Y7.5KWF，XDKF127-Y75KWF，XDKF127-YB112M4，XDKF127-YB132M4，XDKF127-YB160M4，XDKF127-YB180M4，XDKF127-YB200M4，XDKF127-YB225M4，XDKF127-YB250M4，XDKF127-YB280M4，XDKF127-YDP112M4，XDKF127-YDP132M4，XDKF127-YDP160M4，XDKF127-YDP180M4，XDKF127-YDP200M4，XDKF127-YDP225M4，XDKF127-YDP250M4，XDKF127-YDP280M4，XDKF127-YE112M4，XDKF127-YE132M4，XDKF127-YE160M4，XDKF127-YE180M4，XDKF127-YE200M4，XDKF127-YE225M4，XDKF127-YE250M4，XDKF127-YE280M4，XDKF127-YEJ112M4，XDKF127-YEJ132M4，XDKF127-YEJ160M4，XDKF127-YEJ180M4，XDKF127-YEJ200M4，XDKF127-YEJ225M4，XDKF127-YEJ250M4，XDKF127-YEJ280M4，XDKF127-YEJB112M4，XDKF127-YEJB132M4，XDKF127-YEJB160M4，XDKF127-YEJB180M4，XDKF127-YEJB200M4，XDKF127-YEJB225M4，XDKF127-YEJB250M4，XDKF127-YEJB280M4，XDKF127-YP112M4，XDKF127-YP132M4，XDKF127-YP160M4，XDKF127-YP180M4，XDKF127-YP200M4，XDKF127-YP225M4，XDKF127-YP250M4，XDKF127-YP280M4，XDKF127-YPB112M4，XDKF127-YPB132M4，XDKF127-YPB160M4，XDKF127-YPB180M4，XDKF127-YPB200M4，XDKF127-YPB225M4，XDKF127-YPB250M4，XDKF127-YPB280M4，XDKF127-YPE112M4，XDKF127-YPE132M4，XDKF127-YPE160M4，XDKF127-YPE180M4，XDKF127-YPE200M4，XDKF127-YPE225M4，XDKF127-YPE250M4，XDKF127-YPE280M4，XDKF127-YS112M4，XDKF127-YS132M4，XDKF127-YS160M4，XDKF127-YS180M4，XDKF127-YS200M4，XDKF127-YS225M4，XDKF127-YS250M4，XDKF127-YS280M4，XDKF127-YVB112M4，XDKF127-YVB132M4，XDKF127-YVB160M4，XDKF127-YVB180M4，XDKF127-YVB200M4，XDKF127-YVB225M4，XDKF127-YVB250M4，XDKF127-YVB280M4，XDKF127-YVP112M4，XDKF127-YVP132M4，XDKF127-YVP160M4，XDKF127-YVP180M4，XDKF127-YVP200M4，XDKF127-YVP225M4，XDKF127-YVP250M4，XDKF127-YVP280M4，XDKF127-YVPEJ112M4，XDKF127-YVPEJ132M4，XDKF127-YVPEJ160M4，XDKF127-YVPEJ180M4，XDKF127-YVPEJ200M4，XDKF127-YVPEJ225M4，XDKF127-YVPEJ250M4，XDKF127-YVPEJ280M4，YQKF127-Y112M4，YQKF127-Y11KWF，YQKF127-Y132M4，YQKF127-Y15KWF，YQKF127-Y160M4，YQKF127-Y18.5KWF，YQKF127-Y180M4，YQKF127-Y200M4，YQKF127-Y225M4，YQKF127-Y22KWF，YQKF127-Y250M4，YQKF127-Y280M4，YQKF127-Y30KWF，YQKF127-Y37KWF，YQKF127-Y45KWF，YQKF127-Y4KWF，YQKF127-Y5.5KWF，YQKF127-Y55KWF，YQKF127-Y7.5KWF，YQKF127-Y75KWF，YQKF127-YB112M4，YQKF127-YB132M4，YQKF127-YB160M4，YQKF127-YB180M4，YQKF127-YB200M4，YQKF127-YB225M4，YQKF127-YB250M4，YQKF127-YB280M4，YQKF127-YDP112M4，YQKF127-YDP132M4，YQKF127-YDP160M4，YQKF127-YDP180M4，YQKF127-YDP200M4，YQKF127-YDP225M4，YQKF127-YDP250M4，YQKF127-YDP280M4，YQKF127-YE112M4，YQKF127-YE132M4，YQKF127-YE160M4，YQKF127-YE180M4，YQKF127-YE200M4，YQKF127-YE225M4，YQKF127-YE250M4，YQKF127-YE280M4，YQKF127-YEJ112M4，YQKF127-YEJ132M4，YQKF127-YEJ160M4，YQKF127-YEJ180M4，YQKF127-YEJ200M4，YQKF127-YEJ225M4，YQKF127-YEJ250M4，YQKF127-YEJ280M4，YQKF127-YEJB112M4，YQKF127-YEJB132M4，YQKF127-YEJB160M4，YQKF127-YEJB180M4，YQKF127-YEJB200M4，YQKF127-YEJB225M4，YQKF127-YEJB250M4，YQKF127-YEJB280M4，YQKF127-YP112M4，YQKF127-YP132M4，YQKF127-YP160M4，YQKF127-YP180M4，YQKF127-YP200M4，YQKF127-YP225M4，YQKF127-YP250M4，YQKF127-YP280M4，YQKF127-YPB112M4，YQKF127-YPB132M4，YQKF127-YPB160M4，YQKF127-YPB180M4，YQKF127-YPB200M4，YQKF127-YPB225M4，YQKF127-YPB250M4，YQKF127-YPB280M4，YQKF127-YPE112M4，YQKF127-YPE132M4，YQKF127-YPE160M4，YQKF127-YPE180M4，YQKF127-YPE200M4，YQKF127-YPE225M4，YQKF127-YPE250M4，YQKF127-YPE280M4，YQKF127-YS112M4，YQKF127-YS132M4，YQKF127-YS160M4，YQKF127-YS180M4，YQKF127-YS200M4，YQKF127-YS225M4，YQKF127-YS250M4，YQKF127-YS280M4，YQKF127-YVB112M4，YQKF127-YVB132M4，YQKF127-YVB160M4，YQKF127-YVB180M4，YQKF127-YVB200M4，YQKF127-YVB225M4，YQKF127-YVB250M4，YQKF127-YVB280M4，YQKF127-YVP112M4，YQKF127-YVP132M4，YQKF127-YVP160M4，YQKF127-YVP180M4，YQKF127-YVP200M4，YQKF127-YVP225M4，YQKF127-YVP250M4，YQKF127-YVP280M4，YQKF127-YVPEJ112M4，YQKF127-YVPEJ132M4，YQKF127-YVPEJ160M4，YQKF127-YVPEJ180M4，YQKF127-YVPEJ200M4，YQKF127-YVPEJ225M4，YQKF127-YVPEJ250M4，YQKF127-YVPEJ280M4，JCKF127-Y112M4，JCKF127-Y11KWF，JCKF127-Y132M4，JCKF127-Y15KWF，JCKF127-Y160M4，JCKF127-Y18.5KWF，JCKF127-Y180M4，JCKF127-Y200M4，JCKF127-Y225M4，JCKF127-Y22KWF，JCKF127-Y250M4，JCKF127-Y280M4，JCKF127-Y30KWF，JCKF127-Y37KWF，JCKF127-Y45KWF，JCKF127-Y4KWF，JCKF127-Y5.5KWF，JCKF127-Y55KWF，JCKF127-Y7.5KWF，JCKF127-Y75KWF，JCKF127-YB112M4，JCKF127-YB132M4，JCKF127-YB160M4，JCKF127-YB180M4，JCKF127-YB200M4，JCKF127-YB225M4，JCKF127-YB250M4，JCKF127-YB280M4，JCKF127-YDP112M4，JCKF127-YDP132M4，JCKF127-YDP160M4，JCKF127-YDP180M4，JCKF127-YDP200M4，JCKF127-YDP225M4，JCKF127-YDP250M4，JCKF127-YDP280M4，JCKF127-YE112M4，JCKF127-YE132M4，JCKF127-YE160M4，JCKF127-YE180M4，JCKF127-YE200M4，JCKF127-YE225M4，JCKF127-YE250M4，JCKF127-YE280M4，JCKF127-YEJ112M4，JCKF127-YEJ132M4，JCKF127-YEJ160M4，JCKF127-YEJ180M4，JCKF127-YEJ200M4，JCKF127-YEJ225M4，JCKF127-YEJ250M4，JCKF127-YEJ280M4，JCKF127-YEJB112M4，JCKF127-YEJB132M4，JCKF127-YEJB160M4，JCKF127-YEJB180M4，JCKF127-YEJB200M4，JCKF127-YEJB225M4，JCKF127-YEJB250M4，JCKF127-YEJB280M4，JCKF127-YP112M4，JCKF127-YP132M4，JCKF127-YP160M4，JCKF127-YP180M4，JCKF127-YP200M4，JCKF127-YP225M4，JCKF127-YP250M4，JCKF127-YP280M4，JCKF127-YPB112M4，JCKF127-YPB132M4，JCKF127-YPB160M4，JCKF127-YPB180M4，JCKF127-YPB200M4，JCKF127-YPB225M4，JCKF127-YPB250M4，JCKF127-YPB280M4，JCKF127-YPE112M4，JCKF127-YPE132M4，JCKF127-YPE160M4，JCKF127-YPE180M4，JCKF127-YPE200M4，JCKF127-YPE225M4，JCKF127-YPE250M4，JCKF127-YPE280M4，JCKF127-YS112M4，JCKF127-YS132M4，JCKF127-YS160M4，JCKF127-YS180M4，JCKF127-YS200M4，JCKF127-YS225M4，JCKF127-YS250M4，JCKF127-YS280M4，JCKF127-YVB112M4，JCKF127-YVB132M4，JCKF127-YVB160M4，JCKF127-YVB180M4，JCKF127-YVB200M4，JCKF127-YVB225M4，JCKF127-YVB250M4，JCKF127-YVB280M4，JCKF127-YVP112M4，JCKF127-YVP132M4，JCKF127-YVP160M4，JCKF127-YVP180M4，JCKF127-YVP200M4，JCKF127-YVP225M4，JCKF127-YVP250M4，JCKF127-YVP280M4，JCKF127-YVPEJ112M4，JCKF127-YVPEJ132M4，JCKF127-YVPEJ160M4，JCKF127-YVPEJ180M4，JCKF127-YVPEJ200M4，JCKF127-YVPEJ225M4，JCKF127-YVPEJ250M4，JCKF127-YVPEJ280M4，KF129-Y112M4，KF129-Y11KWF，KF129-Y132M4，KF129-Y15KWF，KF129-Y160M4，KF129-Y18.5KWF，KF129-Y180M4，KF129-Y200M4，KF129-Y225M4，KF129-Y22KWF，KF129-Y250M4，KF129-Y280M4，KF129-Y30KWF，KF129-Y37KWF，KF129-Y45KWF，KF129-Y4KWF，KF129-Y5.5KWF，KF129-Y55KWF，KF129-Y7.5KWF，KF129-Y75KWF，KF129-YB112M4，KF129-YB132M4，KF129-YB160M4，KF129-YB180M4，KF129-YB200M4，KF129-YB225M4，KF129-YB250M4，KF129-YB280M4，KF129-YDP112M4，KF129-YDP132M4，KF129-YDP160M4，KF129-YDP180M4，KF129-YDP200M4，KF129-YDP225M4，KF129-YDP250M4，KF129-YDP280M4，KF129-YE112M4，KF129-YE132M4，KF129-YE160M4，KF129-YE180M4，KF129-YE200M4，KF129-YE225M4，KF129-YE250M4，KF129-YE280M4，KF129-YEJ112M4，KF129-YEJ132M4，KF129-YEJ160M4，KF129-YEJ180M4，KF129-YEJ200M4，KF129-YEJ225M4，KF129-YEJ250M4，KF129-YEJ280M4，KF129-YEJB112M4，KF129-YEJB132M4，KF129-YEJB160M4，KF129-YEJB180M4，KF129-YEJB200M4，KF129-YEJB225M4，KF129-YEJB250M4，KF129-YEJB280M4，KF129-YP112M4，KF129-YP132M4，KF129-YP160M4，KF129-YP180M4，KF129-YP200M4，KF129-YP225M4，KF129-YP250M4，KF129-YP280M4，KF129-YPB112M4，KF129-YPB132M4，KF129-YPB160M4，KF129-YPB180M4，KF129-YPB200M4，KF129-YPB225M4，KF129-YPB250M4，KF129-YPB280M4，KF129-YPE112M4，KF129-YPE132M4，KF129-YPE160M4，KF129-YPE180M4，KF129-YPE200M4，KF129-YPE225M4，KF129-YPE250M4，KF129-YPE280M4，KF129-YS112M4，KF129-YS132M4，KF129-YS160M4，KF129-YS180M4，KF129-YS200M4，KF129-YS225M4，KF129-YS250M4，KF129-YS280M4，KF129-YVB112M4，KF129-YVB132M4，KF129-YVB160M4，KF129-YVB180M4，KF129-YVB200M4，KF129-YVB225M4，KF129-YVB250M4，KF129-YVB280M4，KF129-YVP112M4，KF129-YVP132M4，KF129-YVP160M4，KF129-YVP180M4，KF129-YVP200M4，KF129-YVP225M4，KF129-YVP250M4，KF129-YVP280M4，KF129-YVPEJ112M4，KF129-YVPEJ132M4，KF129-YVPEJ160M4，KF129-YVPEJ180M4，KF129-YVPEJ200M4，KF129-YVPEJ225M4，KF129-YVPEJ250M4，KF129-YVPEJ280M4，KF127SF80，KF127SF90，KF127SF100，KF127SF112，KF127SF115，KF127SF140，KF127SF160，KF127SF190。

KF129減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K129減速機
