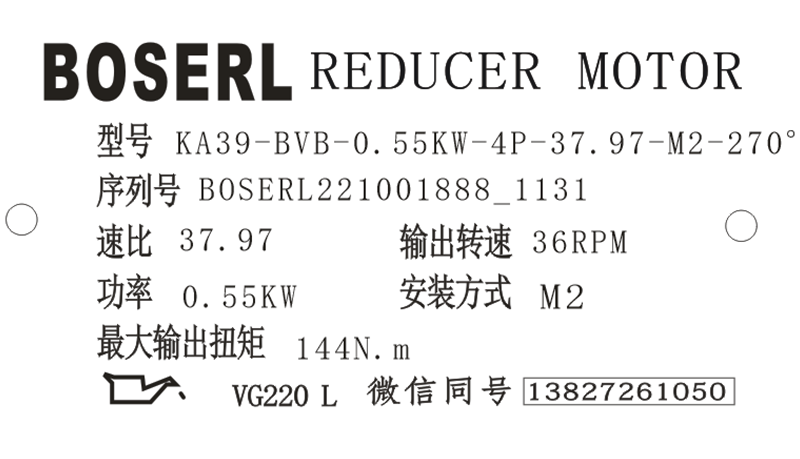

KA39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA39減速器選型樣本。

KA39-BVB-0.55KW-4P-37.97-M2-270°

KA：系列代號

39：減速機規格代號

BVB：電機

0.55KW：電機功率

4P：電機級數

37.97：減速機傳動比

M2：減速機安裝位置

270°：接線盒位置

KA39減速器逆止器安裝：

KA39減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA39減速器潤滑油更換：

由于KA39減速器發熱或KA39減速器油溫過高可能引起燙傷，對KA39減速器進行操作前先冷卻，KA39減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA39減速器電機型號：

KA39-Y0.12KWA，KA39-Y0.18KWA，KA39-Y0.25KWA，KA39-Y0.37KWA，KA39-Y0.55KWA，KA39-Y0.75KWA，KA39-Y1.1KWA，KA39-Y1.5KWA，KA39-Y100M4，KA39-Y2.2KWA，KA39-Y3KWA，KA39-Y63M4，KA39-Y71M4，KA39-Y80M4，KA39-Y90M4，KA39-YB100M4，KA39-YB63M4，KA39-YB71M4，KA39-YB80M4，KA39-YB90M4，KA39-YDP100M4，KA39-YDP63M4，KA39-YDP71M4，KA39-YDP80M4，KA39-YDP90M4，KA39-YE100M4，KA39-YE63M4，KA39-YE71M4，KA39-YE80M4，KA39-YE90M4，KA39-YEJ100M4，KA39-YEJ63M4，KA39-YEJ71M4，KA39-YEJ80M4，KA39-YEJ90M4，KA39-YEJB100M4，KA39-YEJB63M4，KA39-YEJB71M4，KA39-YEJB80M4，KA39-YEJB90M4，KA39-YP100M4，KA39-YP63M4，KA39-YP71M4，KA39-YP80M4，KA39-YP90M4，KA39-YPB100M4，KA39-YPB63M4，KA39-YPB71M4，KA39-YPB80M4，KA39-YPB90M4，KA39-YPE100M4，KA39-YPE63M4，KA39-YPE71M4，KA39-YPE80M4，KA39-YPE90M4，KA39-YS100M4，KA39-YS63M4，KA39-YS71M4，KA39-YS80M4，KA39-YS90M4，KA39-YVB100M4，KA39-YVB63M4，KA39-YVB71M4，KA39-YVB80M4，KA39-YVB90M4，KA39-YVP100M4，KA39-YVP63M4，KA39-YVP71M4，KA39-YVP80M4，KA39-YVP90M4，KA39-YVPEJ100M4，KA39-YVPEJ63M4，KA39-YVPEJ71M4，KA39-YVPEJ80M4，KA39-YVPEJ90M4，XDKA37-Y0.12KWA，XDKA37-Y0.18KWA，XDKA37-Y0.25KWA，XDKA37-Y0.37KWA，XDKA37-Y0.55KWA，XDKA37-Y0.75KWA，XDKA37-Y1.1KWA，XDKA37-Y1.5KWA，XDKA37-Y100M4，XDKA37-Y2.2KWA，XDKA37-Y3KWA，XDKA37-Y63M4，XDKA37-Y71M4，XDKA37-Y80M4，XDKA37-Y90M4，XDKA37-YB100M4，XDKA37-YB63M4，XDKA37-YB71M4，XDKA37-YB80M4，XDKA37-YB90M4，XDKA37-YDP100M4，XDKA37-YDP63M4，XDKA37-YDP71M4，XDKA37-YDP80M4，XDKA37-YDP90M4，XDKA37-YE100M4，XDKA37-YE63M4，XDKA37-YE71M4，XDKA37-YE80M4，XDKA37-YE90M4，XDKA37-YEJ100M4，XDKA37-YEJ63M4，XDKA37-YEJ71M4，XDKA37-YEJ80M4，XDKA37-YEJ90M4，XDKA37-YEJB100M4，XDKA37-YEJB63M4，XDKA37-YEJB71M4，XDKA37-YEJB80M4，XDKA37-YEJB90M4，XDKA37-YP100M4，XDKA37-YP63M4，XDKA37-YP71M4，XDKA37-YP80M4，XDKA37-YP90M4，XDKA37-YPB100M4，XDKA37-YPB63M4，XDKA37-YPB71M4，XDKA37-YPB80M4，XDKA37-YPB90M4，XDKA37-YPE100M4，XDKA37-YPE63M4，XDKA37-YPE71M4，XDKA37-YPE80M4，XDKA37-YPE90M4，XDKA37-YS100M4，XDKA37-YS63M4，XDKA37-YS71M4，XDKA37-YS80M4，XDKA37-YS90M4，XDKA37-YVB100M4，XDKA37-YVB63M4，XDKA37-YVB71M4，XDKA37-YVB80M4，XDKA37-YVB90M4，XDKA37-YVP100M4，XDKA37-YVP63M4，XDKA37-YVP71M4，XDKA37-YVP80M4，XDKA37-YVP90M4，XDKA37-YVPEJ100M4，XDKA37-YVPEJ63M4，XDKA37-YVPEJ71M4，XDKA37-YVPEJ80M4，XDKA37-YVPEJ90M4，YQKA37-Y0.12KWA，YQKA37-Y0.18KWA，YQKA37-Y0.25KWA，YQKA37-Y0.37KWA，YQKA37-Y0.55KWA，YQKA37-Y0.75KWA，YQKA37-Y1.1KWA，YQKA37-Y1.5KWA，YQKA37-Y100M4，YQKA37-Y2.2KWA，YQKA37-Y3KWA，YQKA37-Y63M4，YQKA37-Y71M4，YQKA37-Y80M4，YQKA37-Y90M4，YQKA37-YB100M4，YQKA37-YB63M4，YQKA37-YB71M4，YQKA37-YB80M4，YQKA37-YB90M4，YQKA37-YDP100M4，YQKA37-YDP63M4，YQKA37-YDP71M4，YQKA37-YDP80M4，YQKA37-YDP90M4，YQKA37-YE100M4，YQKA37-YE63M4，YQKA37-YE71M4，YQKA37-YE80M4，YQKA37-YE90M4，YQKA37-YEJ100M4，YQKA37-YEJ63M4，YQKA37-YEJ71M4，YQKA37-YEJ80M4，YQKA37-YEJ90M4，YQKA37-YEJB100M4，YQKA37-YEJB63M4，YQKA37-YEJB71M4，YQKA37-YEJB80M4，YQKA37-YEJB90M4，YQKA37-YP100M4，YQKA37-YP63M4，YQKA37-YP71M4，YQKA37-YP80M4，YQKA37-YP90M4，YQKA37-YPB100M4，YQKA37-YPB63M4，YQKA37-YPB71M4，YQKA37-YPB80M4，YQKA37-YPB90M4，YQKA37-YPE100M4，YQKA37-YPE63M4，YQKA37-YPE71M4，YQKA37-YPE80M4，YQKA37-YPE90M4，YQKA37-YS100M4，YQKA37-YS63M4，YQKA37-YS71M4，YQKA37-YS80M4，YQKA37-YS90M4，YQKA37-YVB100M4，YQKA37-YVB63M4，YQKA37-YVB71M4，YQKA37-YVB80M4，YQKA37-YVB90M4，YQKA37-YVP100M4，YQKA37-YVP63M4，YQKA37-YVP71M4，YQKA37-YVP80M4，YQKA37-YVP90M4，YQKA37-YVPEJ100M4，YQKA37-YVPEJ63M4，YQKA37-YVPEJ71M4，YQKA37-YVPEJ80M4，YQKA37-YVPEJ90M4，JCKA37-Y0.12KWA，JCKA37-Y0.18KWA，JCKA37-Y0.25KWA，JCKA37-Y0.37KWA，JCKA37-Y0.55KWA，JCKA37-Y0.75KWA，JCKA37-Y1.1KWA，JCKA37-Y1.5KWA，JCKA37-Y100M4，JCKA37-Y2.2KWA，JCKA37-Y3KWA，JCKA37-Y63M4，JCKA37-Y71M4，JCKA37-Y80M4，JCKA37-Y90M4，JCKA37-YB100M4，JCKA37-YB63M4，JCKA37-YB71M4，JCKA37-YB80M4，JCKA37-YB90M4，JCKA37-YDP100M4，JCKA37-YDP63M4，JCKA37-YDP71M4，JCKA37-YDP80M4，JCKA37-YDP90M4，JCKA37-YE100M4，JCKA37-YE63M4，JCKA37-YE71M4，JCKA37-YE80M4，JCKA37-YE90M4，JCKA37-YEJ100M4，JCKA37-YEJ63M4，JCKA37-YEJ71M4，JCKA37-YEJ80M4，JCKA37-YEJ90M4，JCKA37-YEJB100M4，JCKA37-YEJB63M4，JCKA37-YEJB71M4，JCKA37-YEJB80M4，JCKA37-YEJB90M4，JCKA37-YP100M4，JCKA37-YP63M4，JCKA37-YP71M4，JCKA37-YP80M4，JCKA37-YP90M4，JCKA37-YPB100M4，JCKA37-YPB63M4，JCKA37-YPB71M4，JCKA37-YPB80M4，JCKA37-YPB90M4，JCKA37-YPE100M4，JCKA37-YPE63M4，JCKA37-YPE71M4，JCKA37-YPE80M4，JCKA37-YPE90M4，JCKA37-YS100M4，JCKA37-YS63M4，JCKA37-YS71M4，JCKA37-YS80M4，JCKA37-YS90M4，JCKA37-YVB100M4，JCKA37-YVB63M4，JCKA37-YVB71M4，JCKA37-YVB80M4，JCKA37-YVB90M4，JCKA37-YVP100M4，JCKA37-YVP63M4，JCKA37-YVP71M4，JCKA37-YVP80M4，JCKA37-YVP90M4，JCKA37-YVPEJ100M4，JCKA37-YVPEJ63M4，JCKA37-YVPEJ71M4，JCKA37-YVPEJ80M4，JCKA37-YVPEJ90M4，KWA37-Y0.12KWA，KWA37-Y0.18KWA，KWA37-Y0.25KWA，KWA37-Y0.37KWA，KWA37-Y0.55KWA，KWA37-Y0.75KWA，KWA37-Y1.1KWA，KWA37-Y1.5KWA，KWA37-Y100M4，KWA37-Y2.2KWA，KWA37-Y3KWA，KWA37-Y63M4，KWA37-Y71M4，KWA37-Y80M4，KWA37-Y90M4，KWA37-YB100M4，KWA37-YB63M4，KWA37-YB71M4，KWA37-YB80M4，KWA37-YB90M4，KWA37-YDP100M4，KWA37-YDP63M4，KWA37-YDP71M4，KWA37-YDP80M4，KWA37-YDP90M4，KWA37-YE100M4，KWA37-YE63M4，KWA37-YE71M4，KWA37-YE80M4，KWA37-YE90M4，KWA37-YEJ100M4，KWA37-YEJ63M4，KWA37-YEJ71M4，KWA37-YEJ80M4，KWA37-YEJ90M4，KWA37-YEJB100M4，KWA37-YEJB63M4，KWA37-YEJB71M4，KWA37-YEJB80M4，KWA37-YEJB90M4，KWA37-YP100M4，KWA37-YP63M4，KWA37-YP71M4，KWA37-YP80M4，KWA37-YP90M4，KWA37-YPB100M4，KWA37-YPB63M4，KWA37-YPB71M4，KWA37-YPB80M4，KWA37-YPB90M4，KWA37-YPE100M4，KWA37-YPE63M4，KWA37-YPE71M4，KWA37-YPE80M4，KWA37-YPE90M4，KWA37-YS100M4，KWA37-YS63M4，KWA37-YS71M4，KWA37-YS80M4，KWA37-YS90M4，KWA37-YVB100M4，KWA37-YVB63M4，KWA37-YVB71M4，KWA37-YVB80M4，KWA37-YVB90M4，KWA37-YVP100M4，KWA37-YVP63M4，KWA37-YVP71M4，KWA37-YVP80M4，KWA37-YVP90M4，KWA37-YVPEJ100M4，KWA37-YVPEJ63M4，KWA37-YVPEJ71M4，KWA37-YVPEJ80M4，KWA37-YVPEJ90M4，KA37SF80，KA37SF90，KA37SF100，KA37SF112，KA37SF115，KA37SF140，KA37SF160，KA37SF190。
