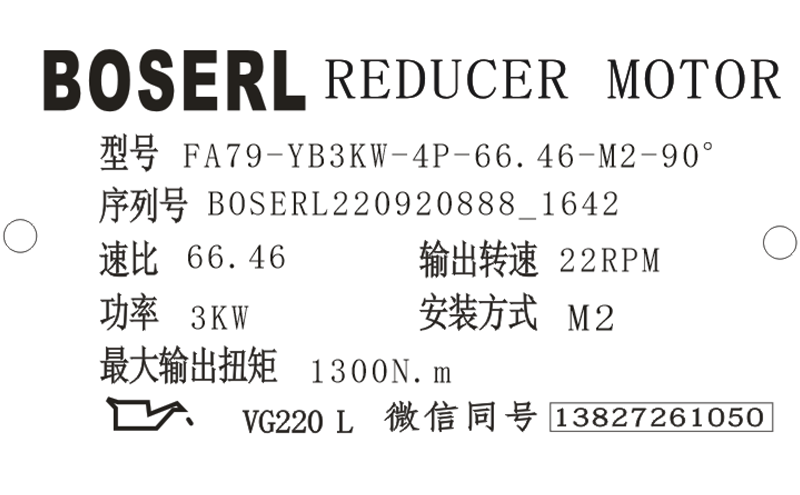

FA79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA79減速器選型樣本。

FA79-YB3KW-4P-66.46-M2-90°

FA：系列代號

79：減速機規格代號

YB：電機

3KW：電機功率

4P：電機級數

66.46：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

FA79減速器逆止器安裝：

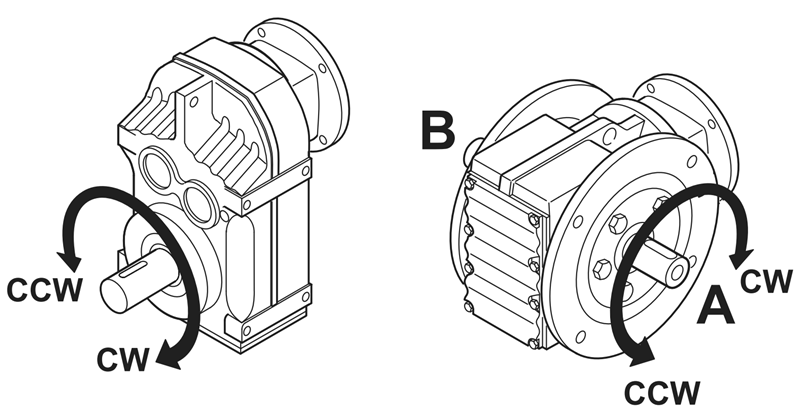

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA79減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA79減速器潤滑油檢查：

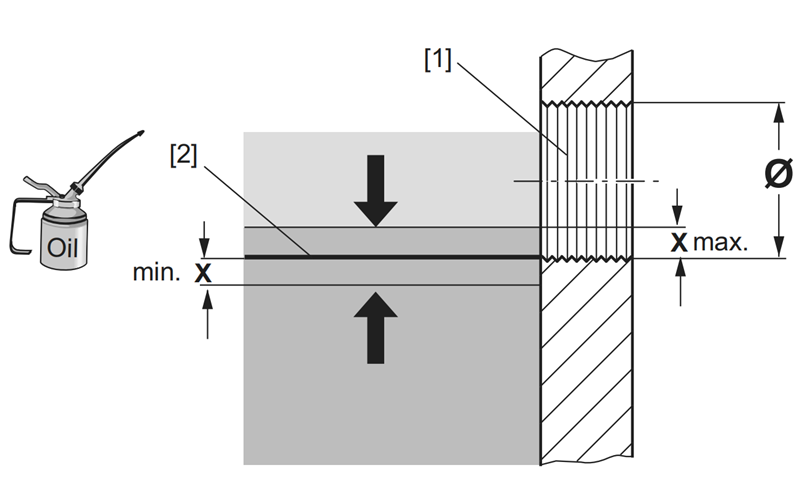

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA79減速器型號：

YQFA77-Y0.18KW，YQFA77-Y0.25KW，YQFA77-Y0.37KW，YQFA77-Y0.55KW，YQFA77-Y0.75KW，YQFA77-Y1.1KW，YQFA77-Y1.5KW，YQFA77-Y100M4，YQFA77-Y112M4，YQFA77-Y11KW，YQFA77-Y132M4，YQFA77-Y160M4，YQFA77-Y2.2KW，YQFA77-Y3KW，YQFA77-Y4KW，YQFA77-Y5.5KW，YQFA77-Y63M4，YQFA77-Y7.5KW，YQFA77-Y71M4，YQFA77-Y80M4，YQFA77-Y90M4，YQFA77-YB100M4，YQFA77-YB112M4，YQFA77-YB132M4，YQFA77-YB160M4，YQFA77-YB63M4，YQFA77-YB71M4，YQFA77-YB80M4，YQFA77-YB90M4，YQFA77-YDP100M4，YQFA77-YDP112M4，YQFA77-YDP132M4，YQFA77-YDP160M4，YQFA77-YDP63M4，YQFA77-YDP71M4，YQFA77-YDP80M4，YQFA77-YDP90M4，YQFA77-YE100M4，YQFA77-YE112M4，YQFA77-YE132M4，YQFA77-YE160M4，YQFA77-YE63M4，YQFA77-YE71M4，YQFA77-YE80M4，YQFA77-YE90M4，YQFA77-YEJ100M4，YQFA77-YEJ112M4，YQFA77-YEJ132M4，YQFA77-YEJ160M4，YQFA77-YEJ63M4，YQFA77-YEJ71M4，YQFA77-YEJ80M4，YQFA77-YEJ90M4，YQFA77-YEJB100M4，YQFA77-YEJB112M4，YQFA77-YEJB132M4，YQFA77-YEJB160M4，YQFA77-YEJB63M4，YQFA77-YEJB71M4，YQFA77-YEJB80M4，YQFA77-YEJB90M4，YQFA77-YP100M4，YQFA77-YP112M4，YQFA77-YP132M4，YQFA77-YP160M4，YQFA77-YP63M4，YQFA77-YP71M4，YQFA77-YP80M4，YQFA77-YP90M4，YQFA77-YPB100M4，YQFA77-YPB112M4，YQFA77-YPB132M4，YQFA77-YPB160M4，YQFA77-YPB63M4，YQFA77-YPB71M4，YQFA77-YPB80M4，YQFA77-YPB90M4，YQFA77-YPE100M4，YQFA77-YPE112M4，YQFA77-YPE132M4，YQFA77-YPE160M4，YQFA77-YPE63M4，YQFA77-YPE71M4，YQFA77-YPE80M4，YQFA77-YPE90M4，YQFA77-YS100M4，YQFA77-YS112M4，YQFA77-YS132M4，YQFA77-YS160M4，YQFA77-YS63M4，YQFA77-YS71M4，YQFA77-YS80M4，YQFA77-YS90M4，YQFA77-YVB100M4，YQFA77-YVB112M4，YQFA77-YVB132M4，YQFA77-YVB160M4，YQFA77-YVB63M4，YQFA77-YVB71M4，YQFA77-YVB80M4，YQFA77-YVB90M4，YQFA77-YVP100M4，YQFA77-YVP112M4，YQFA77-YVP132M4，YQFA77-YVP160M4，YQFA77-YVP63M4，YQFA77-YVP71M4，YQFA77-YVP80M4，YQFA77-YVP90M4，YQFA77-YVPEJ100M4，YQFA77-YVPEJ112M4，YQFA77-YVPEJ132M4，YQFA77-YVPEJ160M4，YQFA77-YVPEJ63M4，YQFA77-YVPEJ71M4，YQFA77-YVPEJ80M4，YQFA77-YVPEJ90M4，XDFA77-Y0.18KW，XDFA77-Y0.25KW，XDFA77-Y0.37KW，XDFA77-Y0.55KW，XDFA77-Y0.75KW，XDFA77-Y1.1KW，XDFA77-Y1.5KW，XDFA77-Y100M4，XDFA77-Y112M4，XDFA77-Y11KW，XDFA77-Y132M4，XDFA77-Y160M4，XDFA77-Y2.2KW，XDFA77-Y3KW，XDFA77-Y4KW，XDFA77-Y5.5KW，XDFA77-Y63M4，XDFA77-Y7.5KW，XDFA77-Y71M4，XDFA77-Y80M4，XDFA77-Y90M4，XDFA77-YB100M4，XDFA77-YB112M4，XDFA77-YB132M4，XDFA77-YB160M4，XDFA77-YB63M4，XDFA77-YB71M4，XDFA77-YB80M4，XDFA77-YB90M4，XDFA77-YDP100M4，XDFA77-YDP112M4，XDFA77-YDP132M4，XDFA77-YDP160M4，XDFA77-YDP63M4，XDFA77-YDP71M4，XDFA77-YDP80M4，XDFA77-YDP90M4，XDFA77-YE100M4，XDFA77-YE112M4，XDFA77-YE132M4，XDFA77-YE160M4，XDFA77-YE63M4，XDFA77-YE71M4，XDFA77-YE80M4，XDFA77-YE90M4，XDFA77-YEJ100M4，XDFA77-YEJ112M4，XDFA77-YEJ132M4，XDFA77-YEJ160M4，XDFA77-YEJ63M4，XDFA77-YEJ71M4，XDFA77-YEJ80M4，XDFA77-YEJ90M4，XDFA77-YEJB100M4，XDFA77-YEJB112M4，XDFA77-YEJB132M4，XDFA77-YEJB160M4，XDFA77-YEJB63M4，XDFA77-YEJB71M4，XDFA77-YEJB80M4，XDFA77-YEJB90M4，XDFA77-YP100M4，XDFA77-YP112M4，XDFA77-YP132M4，XDFA77-YP160M4，XDFA77-YP63M4，XDFA77-YP71M4，XDFA77-YP80M4，XDFA77-YP90M4，XDFA77-YPB100M4，XDFA77-YPB112M4，XDFA77-YPB132M4，XDFA77-YPB160M4，XDFA77-YPB63M4，XDFA77-YPB71M4，XDFA77-YPB80M4，XDFA77-YPB90M4，XDFA77-YPE100M4，XDFA77-YPE112M4，XDFA77-YPE132M4，XDFA77-YPE160M4，XDFA77-YPE63M4，XDFA77-YPE71M4，XDFA77-YPE80M4，XDFA77-YPE90M4，XDFA77-YS100M4，XDFA77-YS112M4，XDFA77-YS132M4，XDFA77-YS160M4，XDFA77-YS63M4，XDFA77-YS71M4，XDFA77-YS80M4，XDFA77-YS90M4，XDFA77-YVB100M4，XDFA77-YVB112M4，XDFA77-YVB132M4，XDFA77-YVB160M4，XDFA77-YVB63M4，XDFA77-YVB71M4，XDFA77-YVB80M4，XDFA77-YVB90M4，XDFA77-YVP100M4，XDFA77-YVP112M4，XDFA77-YVP132M4，XDFA77-YVP160M4，XDFA77-YVP63M4，XDFA77-YVP71M4，XDFA77-YVP80M4，XDFA77-YVP90M4，XDFA77-YVPEJ100M4，XDFA77-YVPEJ112M4，XDFA77-YVPEJ132M4，XDFA77-YVPEJ160M4，XDFA77-YVPEJ63M4，XDFA77-YVPEJ71M4，XDFA77-YVPEJ80M4，XDFA77-YVPEJ90M4，JCFA77-Y0.18KW，JCFA77-Y0.25KW，JCFA77-Y0.37KW，JCFA77-Y0.55KW，JCFA77-Y0.75KW，JCFA77-Y1.1KW，JCFA77-Y1.5KW，JCFA77-Y100M4，JCFA77-Y112M4，JCFA77-Y11KW，JCFA77-Y132M4，JCFA77-Y160M4，JCFA77-Y2.2KW，JCFA77-Y3KW，JCFA77-Y4KW，JCFA77-Y5.5KW，JCFA77-Y63M4，JCFA77-Y7.5KW，JCFA77-Y71M4，JCFA77-Y80M4，JCFA77-Y90M4，JCFA77-YB100M4，JCFA77-YB112M4，JCFA77-YB132M4，JCFA77-YB160M4，JCFA77-YB63M4，JCFA77-YB71M4，JCFA77-YB80M4，JCFA77-YB90M4，JCFA77-YDP100M4，JCFA77-YDP112M4，JCFA77-YDP132M4，JCFA77-YDP160M4，JCFA77-YDP63M4，JCFA77-YDP71M4，JCFA77-YDP80M4，JCFA77-YDP90M4，JCFA77-YE100M4，JCFA77-YE112M4，JCFA77-YE132M4，JCFA77-YE160M4，JCFA77-YE63M4，JCFA77-YE71M4，JCFA77-YE80M4，JCFA77-YE90M4，JCFA77-YEJ100M4，JCFA77-YEJ112M4，JCFA77-YEJ132M4，JCFA77-YEJ160M4，JCFA77-YEJ63M4，JCFA77-YEJ71M4，JCFA77-YEJ80M4，JCFA77-YEJ90M4，JCFA77-YEJB100M4，JCFA77-YEJB112M4，JCFA77-YEJB132M4，JCFA77-YEJB160M4，JCFA77-YEJB63M4，JCFA77-YEJB71M4，JCFA77-YEJB80M4，JCFA77-YEJB90M4，JCFA77-YP100M4，JCFA77-YP112M4，JCFA77-YP132M4，JCFA77-YP160M4，JCFA77-YP63M4，JCFA77-YP71M4，JCFA77-YP80M4，JCFA77-YP90M4，JCFA77-YPB100M4，JCFA77-YPB112M4，JCFA77-YPB132M4，JCFA77-YPB160M4，JCFA77-YPB63M4，JCFA77-YPB71M4，JCFA77-YPB80M4，JCFA77-YPB90M4，JCFA77-YPE100M4，JCFA77-YPE112M4，JCFA77-YPE132M4，JCFA77-YPE160M4，JCFA77-YPE63M4，JCFA77-YPE71M4，JCFA77-YPE80M4，JCFA77-YPE90M4，JCFA77-YS100M4，JCFA77-YS112M4，JCFA77-YS132M4，JCFA77-YS160M4，JCFA77-YS63M4，JCFA77-YS71M4，JCFA77-YS80M4，JCFA77-YS90M4，JCFA77-YVB100M4，JCFA77-YVB112M4，JCFA77-YVB132M4，JCFA77-YVB160M4，JCFA77-YVB63M4，JCFA77-YVB71M4，JCFA77-YVB80M4，JCFA77-YVB90M4，JCFA77-YVP100M4，JCFA77-YVP112M4，JCFA77-YVP132M4，JCFA77-YVP160M4，JCFA77-YVP63M4，JCFA77-YVP71M4，JCFA77-YVP80M4，JCFA77-YVP90M4，JCFA77-YVPEJ100M4，JCFA77-YVPEJ112M4，JCFA77-YVPEJ132M4，JCFA77-YVPEJ160M4，JCFA77-YVPEJ63M4，JCFA77-YVPEJ71M4，JCFA77-YVPEJ80M4，JCFA77-YVPEJ90M4，FWA77-Y0.18KW，FWA77-Y0.25KW，FWA77-Y0.37KW，FWA77-Y0.55KW，FWA77-Y0.75KW，FWA77-Y1.1KW，FWA77-Y1.5KW，FWA77-Y100M4，FWA77-Y112M4，FWA77-Y11KW，FWA77-Y132M4，FWA77-Y160M4，FWA77-Y2.2KW，FWA77-Y3KW，FWA77-Y4KW，FWA77-Y5.5KW，FWA77-Y63M4，FWA77-Y7.5KW，FWA77-Y71M4，FWA77-Y80M4，FWA77-Y90M4，FWA77-YB100M4，FWA77-YB112M4，FWA77-YB132M4，FWA77-YB160M4，FWA77-YB63M4，FWA77-YB71M4，FWA77-YB80M4，FWA77-YB90M4，FWA77-YDP100M4，FWA77-YDP112M4，FWA77-YDP132M4，FWA77-YDP160M4，FWA77-YDP63M4，FWA77-YDP71M4，FWA77-YDP80M4，FWA77-YDP90M4，FWA77-YE100M4，FWA77-YE112M4，FWA77-YE132M4，FWA77-YE160M4，FWA77-YE63M4，FWA77-YE71M4，FWA77-YE80M4，FWA77-YE90M4，FWA77-YEJ100M4，FWA77-YEJ112M4，FWA77-YEJ132M4，FWA77-YEJ160M4，FWA77-YEJ63M4，FWA77-YEJ71M4，FWA77-YEJ80M4，FWA77-YEJ90M4，FWA77-YEJB100M4，FWA77-YEJB112M4，FWA77-YEJB132M4，FWA77-YEJB160M4，FWA77-YEJB63M4，FWA77-YEJB71M4，FWA77-YEJB80M4，FWA77-YEJB90M4，FWA77-YP100M4，FWA77-YP112M4，FWA77-YP132M4，FWA77-YP160M4，FWA77-YP63M4，FWA77-YP71M4，FWA77-YP80M4，FWA77-YP90M4，FWA77-YPB100M4，FWA77-YPB112M4，FWA77-YPB132M4，FWA77-YPB160M4，FWA77-YPB63M4，FWA77-YPB71M4，FWA77-YPB80M4，FWA77-YPB90M4，FWA77-YPE100M4，FWA77-YPE112M4，FWA77-YPE132M4，FWA77-YPE160M4，FWA77-YPE63M4，FWA77-YPE71M4，FWA77-YPE80M4，FWA77-YPE90M4，FWA77-YS100M4，FWA77-YS112M4，FWA77-YS132M4，FWA77-YS160M4，FWA77-YS63M4，FWA77-YS71M4，FWA77-YS80M4，FWA77-YS90M4，FWA77-YVB100M4，FWA77-YVB112M4，FWA77-YVB132M4，FWA77-YVB160M4，FWA77-YVB63M4，FWA77-YVB71M4，FWA77-YVB80M4，FWA77-YVB90M4，FWA77-YVP100M4，FWA77-YVP112M4，FWA77-YVP132M4，FWA77-YVP160M4，FWA77-YVP63M4，FWA77-YVP71M4，FWA77-YVP80M4，FWA77-YVP90M4，FWA77-YVPEJ100M4，FWA77-YVPEJ112M4，FWA77-YVPEJ132M4，FWA77-YVPEJ160M4，FWA77-YVPEJ63M4，FWA77-YVPEJ71M4，FWA77-YVPEJ80M4，FWA77-YVPEJ90M4，FA79-Y0.18KW，FA79-Y0.25KW，FA79-Y0.37KW，FA79-Y0.55KW，FA79-Y0.75KW，FA79-Y1.1KW，FA79-Y1.5KW，FA79-Y100M4，FA79-Y112M4，FA79-Y11KW，FA79-Y132M4，FA79-Y160M4，FA79-Y2.2KW，FA79-Y3KW，FA79-Y4KW，FA79-Y5.5KW，FA79-Y63M4，FA79-Y7.5KW，FA79-Y71M4，FA79-Y80M4，FA79-Y90M4，FA79-YB100M4，FA79-YB112M4，FA79-YB132M4，FA79-YB160M4，FA79-YB63M4，FA79-YB71M4，FA79-YB80M4，FA79-YB90M4，FA79-YDP100M4，FA79-YDP112M4，FA79-YDP132M4，FA79-YDP160M4，FA79-YDP63M4，FA79-YDP71M4，FA79-YDP80M4，FA79-YDP90M4，FA79-YE100M4，FA79-YE112M4，FA79-YE132M4，FA79-YE160M4，FA79-YE63M4，FA79-YE71M4，FA79-YE80M4，FA79-YE90M4，FA79-YEJ100M4，FA79-YEJ112M4，FA79-YEJ132M4，FA79-YEJ160M4，FA79-YEJ63M4，FA79-YEJ71M4，FA79-YEJ80M4，FA79-YEJ90M4，FA79-YEJB100M4，FA79-YEJB112M4，FA79-YEJB132M4，FA79-YEJB160M4，FA79-YEJB63M4，FA79-YEJB71M4，FA79-YEJB80M4，FA79-YEJB90M4，FA79-YP100M4，FA79-YP112M4，FA79-YP132M4，FA79-YP160M4，FA79-YP63M4，FA79-YP71M4，FA79-YP80M4，FA79-YP90M4，FA79-YPB100M4，FA79-YPB112M4，FA79-YPB132M4，FA79-YPB160M4，FA79-YPB63M4，FA79-YPB71M4，FA79-YPB80M4，FA79-YPB90M4，FA79-YPE100M4，FA79-YPE112M4，FA79-YPE132M4，FA79-YPE160M4，FA79-YPE63M4，FA79-YPE71M4，FA79-YPE80M4，FA79-YPE90M4，FA79-YS100M4，FA79-YS112M4，FA79-YS132M4，FA79-YS160M4，FA79-YS63M4，FA79-YS71M4，FA79-YS80M4，FA79-YS90M4，FA79-YVB100M4，FA79-YVB112M4，FA79-YVB132M4，FA79-YVB160M4，FA79-YVB63M4，FA79-YVB71M4，FA79-YVB80M4，FA79-YVB90M4，FA79-YVP100M4，FA79-YVP112M4，FA79-YVP132M4，FA79-YVP160M4，FA79-YVP63M4，FA79-YVP71M4，FA79-YVP80M4，FA79-YVP90M4，FA79-YVPEJ100M4，FA79-YVPEJ112M4，FA79-YVPEJ132M4，FA79-YVPEJ160M4，FA79-YVPEJ63M4，FA79-YVPEJ71M4，FA79-YVPEJ80M4，FA79-YVPEJ90M4，FA77SF80，FA77SF90，FA77SF100，FA77SF112，FA77SF115，FA77SF140，FA77SF160，FA77SF190。

FA79減速器生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-faxiliejiansuji-cn.html

推薦類似型號：F79減速機
