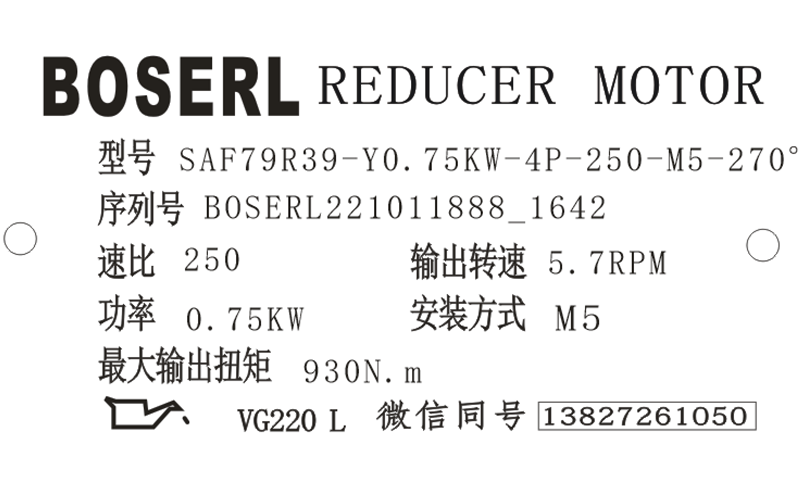

SAF79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SAF79R39減速機選型樣本。

SAF79R39-Y0.75KW-4P-250-M5-270°

SAF/R：系列代號

79/39：減速機規格代號

Y：電機

0.75KW：電機功率

4P：電機級數

250：減速機傳動比

M5：減速機安裝位置

270°：接線盒位置

SAF79R39減速機轉速低以及剎不住解決方案：

SAF79R39減速機轉速遠低于額定值：電壓過低，用萬用表測電動機輸入電壓，排查維修；負荷過大，若電流大于額定值10%，則是此原因,選用大容量電機；轉子斷條，更換轉子。齒輪減速電機

SAF79R39減速機剎車移動：來令片磨損，換新來令片；間隙過大，調整間隙；負載過大，重新設計；剎車表面歪斜，更換零件；下降重量過大，機構重新設計；選用機型錯誤，選用正確機型；環境溫度過高，改善環境溫度。

SAF79R39減速機電機合格證：

請注意！本產品使用前，務必先做好接地作業，以保證安全使用。

SAF79R39減速機電機機械性能檢驗：振動、噪音、軸跳動、外觀質量；自鎖減速機

SAF79R39減速機電機電氣性能檢驗：

SAF79R39減速機電機裝箱檢驗：平鍵一支、軸套一支、使用說明書及產品合格證一份。

SAF79R39減速機電機運行過程中，需要相應的防護措施，注意電機及減電機可能帶電、裸露甚至活動的部件及高溫表面的危險，這些可能導致重傷或者死亡。所有與運輸入庫、安裝/裝配、接線、調試、維修和維護有關的作業須由具備資質的專業人員進行，并務必注意下列事項：與此有關的詳細操作手冊；SAF79R39減速機電機上的警告和安全提示牌；所有其他屬于驅動設備的設計資料、調試指南與接線圖；與設備相關的規定和要求；有關安全和事故防范的國家/地區性規定；嚴格安裝受到損壞的產品；立即向承運公司就損壞進行索賠。伺服電機渦輪渦桿減速機

SAF79R39減速電機型號：

YQSAF77R37-Y63M4，YQSAF77R37-Y71M4，YQSAF77R37-Y80M4，YQSAF77R37-Y90M4，YQSAF77RF37-Y0.12KW，YQSAF77RF37-Y0.18KW，YQSAF77RF37-Y0.25KW，YQSAF77RF37-Y0.37KW，YQSAF77RF37-Y0.55KW，YQSAF77RF37-Y0.75KW，YQSAF77RF37-Y1.1KW，YQSAF77RF37-Y63M4，YQSAF77RF37-Y71M4，YQSAF77RF37-Y80M4，YQSAF77RF37-Y90M4，YQSAF77RF37-YB63M4，YQSAF77RF37-YB71M4，YQSAF77RF37-YB80M4，YQSAF77RF37-YB90S4，YQSAF77RF37-YDP63M4，YQSAF77RF37-YDP71M4，YQSAF77RF37-YDP80M4，YQSAF77RF37-YDP90S4，YQSAF77RF37-YE63M4，YQSAF77RF37-YE71M4，YQSAF77RF37-YE80M4，YQSAF77RF37-YE90S4，YQSAF77RF37-YEJ63M4，YQSAF77RF37-YEJ71M4，YQSAF77RF37-YEJ80M4，YQSAF77RF37-YEJ90S4，YQSAF77RF37-YEJB63M4，YQSAF77RF37-YEJB71M4，YQSAF77RF37-YEJB80M4，YQSAF77RF37-YEJB90S4，YQSAF77RF37-YP63M4，YQSAF77RF37-YP71M4，YQSAF77RF37-YP80M4，YQSAF77RF37-YP90S4，YQSAF77RF37-YPB63M4，YQSAF77RF37-YPB71M4，YQSAF77RF37-YPB80M4，YQSAF77RF37-YPB90S4，YQSAF77RF37-YPE63M4，YQSAF77RF37-YPE71M4，YQSAF77RF37-YPE80M4，YQSAF77RF37-YPE90S4，YQSAF77RF37-YSAF63M4，YQSAF77RF37-YSAF71M4，YQSAF77RF37-YSAF80M4，YQSAF77RF37-YSAF90S4，YQSAF77RF37-YVB63M4，YQSAF77RF37-YVB71M4，YQSAF77RF37-YVB80M4，YQSAF77RF37-YVB90S4，YQSAF77RF37-YVP63M4，YQSAF77RF37-YVP71M4，YQSAF77RF37-YVP80M4，YQSAF77RF37-YVP90S4，ASAF77R37-Y63M4，ASAF77R37-Y71M4，ASAF77R37-Y80M4，ASAF77R37-Y90M4，ASAF77RF37-Y0.12KW，ASAF77RF37-Y0.18KW，ASAF77RF37-Y0.25KW，ASAF77RF37-Y0.37KW，ASAF77RF37-Y0.55KW，ASAF77RF37-Y0.75KW，ASAF77RF37-Y1.1KW，ASAF77RF37-Y63M4，ASAF77RF37-Y71M4，ASAF77RF37-Y80M4，ASAF77RF37-Y90M4，ASAF77RF37-YB63M4，ASAF77RF37-YB71M4，ASAF77RF37-YB80M4，ASAF77RF37-YB90S4，ASAF77RF37-YDP63M4，ASAF77RF37-YDP71M4，ASAF77RF37-YDP80M4，ASAF77RF37-YDP90S4，ASAF77RF37-YE63M4，ASAF77RF37-YE71M4，ASAF77RF37-YE80M4，ASAF77RF37-YE90S4，ASAF77RF37-YEJ63M4，ASAF77RF37-YEJ71M4，ASAF77RF37-YEJ80M4，ASAF77RF37-YEJ90S4，ASAF77RF37-YEJB63M4，ASAF77RF37-YEJB71M4，ASAF77RF37-YEJB80M4，ASAF77RF37-YEJB90S4，ASAF77RF37-YP63M4，ASAF77RF37-YP71M4，ASAF77RF37-YP80M4，ASAF77RF37-YP90S4，ASAF77RF37-YPB63M4，ASAF77RF37-YPB71M4，ASAF77RF37-YPB80M4，ASAF77RF37-YPB90S4，ASAF77RF37-YPE63M4，ASAF77RF37-YPE71M4，ASAF77RF37-YPE80M4，ASAF77RF37-YPE90S4，ASAF77RF37-YSAF63M4，ASAF77RF37-YSAF71M4，ASAF77RF37-YSAF80M4，ASAF77RF37-YSAF90S4，ASAF77RF37-YVB63M4，ASAF77RF37-YVB71M4，ASAF77RF37-YVB80M4，ASAF77RF37-YVB90S4，ASAF77RF37-YVP63M4，ASAF77RF37-YVP71M4，ASAF77RF37-YVP80M4，ASAF77RF37-YVP90S4，SSAF77R37-Y63M4，SSAF77R37-Y71M4，SSAF77R37-Y80M4，SSAF77R37-Y90M4，SSAF77RF37-Y0.12KW，SSAF77RF37-Y0.18KW，SSAF77RF37-Y0.25KW，SSAF77RF37-Y0.37KW，SSAF77RF37-Y0.55KW，SSAF77RF37-Y0.75KW，SSAF77RF37-Y1.1KW，SSAF77RF37-Y63M4，SSAF77RF37-Y71M4，SSAF77RF37-Y80M4，SSAF77RF37-Y90M4，SSAF77RF37-YB63M4，SSAF77RF37-YB71M4，SSAF77RF37-YB80M4，SSAF77RF37-YB90S4，SSAF77RF37-YDP63M4，SSAF77RF37-YDP71M4，SSAF77RF37-YDP80M4，SSAF77RF37-YDP90S4，SSAF77RF37-YE63M4，SSAF77RF37-YE71M4，SSAF77RF37-YE80M4，SSAF77RF37-YE90S4，SSAF77RF37-YEJ63M4，SSAF77RF37-YEJ71M4，SSAF77RF37-YEJ80M4，SSAF77RF37-YEJ90S4，SSAF77RF37-YEJB63M4，SSAF77RF37-YEJB71M4，SSAF77RF37-YEJB80M4，SSAF77RF37-YEJB90S4，SSAF77RF37-YP63M4，SSAF77RF37-YP71M4，SSAF77RF37-YP80M4，SSAF77RF37-YP90S4，SSAF77RF37-YPB63M4，SSAF77RF37-YPB71M4，SSAF77RF37-YPB80M4，SSAF77RF37-YPB90S4，SSAF77RF37-YPE63M4，SSAF77RF37-YPE71M4，SSAF77RF37-YPE80M4，SSAF77RF37-YPE90S4，SSAF77RF37-YSAF63M4，SSAF77RF37-YSAF71M4，SSAF77RF37-YSAF80M4，SSAF77RF37-YSAF90S4，SSAF77RF37-YVB63M4，SSAF77RF37-YVB71M4，SSAF77RF37-YVB80M4，SSAF77RF37-YVB90S4，SSAF77RF37-YVP63M4，SSAF77RF37-YVP71M4，SSAF77RF37-YVP80M4，SSAF77RF37-YVP90S4，WSAF77R37-Y63M4，WSAF77R37-Y71M4，WSAF77R37-Y80M4，WSAF77R37-Y90M4，WSAF77RF37-Y0.12KW，WSAF77RF37-Y0.18KW，WSAF77RF37-Y0.25KW，WSAF77RF37-Y0.37KW，WSAF77RF37-Y0.55KW，WSAF77RF37-Y0.75KW，WSAF77RF37-Y1.1KW，WSAF77RF37-Y63M4，WSAF77RF37-Y71M4，WSAF77RF37-Y80M4，WSAF77RF37-Y90M4，WSAF77RF37-YB63M4，WSAF77RF37-YB71M4，WSAF77RF37-YB80M4，WSAF77RF37-YB90S4，WSAF77RF37-YDP63M4，WSAF77RF37-YDP71M4，WSAF77RF37-YDP80M4，WSAF77RF37-YDP90S4，WSAF77RF37-YE63M4，WSAF77RF37-YE71M4，WSAF77RF37-YE80M4，WSAF77RF37-YE90S4，WSAF77RF37-YEJ63M4，WSAF77RF37-YEJ71M4，WSAF77RF37-YEJ80M4，WSAF77RF37-YEJ90S4，WSAF77RF37-YEJB63M4，WSAF77RF37-YEJB71M4，WSAF77RF37-YEJB80M4，WSAF77RF37-YEJB90S4，WSAF77RF37-YP63M4，WSAF77RF37-YP71M4，WSAF77RF37-YP80M4，WSAF77RF37-YP90S4，WSAF77RF37-YPB63M4，WSAF77RF37-YPB71M4，WSAF77RF37-YPB80M4，WSAF77RF37-YPB90S4，WSAF77RF37-YPE63M4，WSAF77RF37-YPE71M4，WSAF77RF37-YPE80M4，WSAF77RF37-YPE90S4，WSAF77RF37-YSAF63M4，WSAF77RF37-YSAF71M4，WSAF77RF37-YSAF80M4，WSAF77RF37-YSAF90S4，WSAF77RF37-YVB63M4，WSAF77RF37-YVB71M4，WSAF77RF37-YVB80M4，WSAF77RF37-YVB90S4，WSAF77RF37-YVP63M4，WSAF77RF37-YVP71M4，WSAF77RF37-YVP80M4，WSAF77RF37-YVP90S4，XDSAF77R37-Y63M4，XDSAF77R37-Y71M4，XDSAF77R37-Y80M4，XDSAF77R37-Y90M4，XDSAF77RF37-Y0.12KW，XDSAF77RF37-Y0.18KW，XDSAF77RF37-Y0.25KW，XDSAF77RF37-Y0.37KW，XDSAF77RF37-Y0.55KW，XDSAF77RF37-Y0.75KW，XDSAF77RF37-Y1.1KW，XDSAF77RF37-Y63M4，XDSAF77RF37-Y71M4，XDSAF77RF37-Y80M4，XDSAF77RF37-Y90M4，XDSAF77RF37-YB63M4，XDSAF77RF37-YB71M4，XDSAF77RF37-YB80M4，XDSAF77RF37-YB90S4，XDSAF77RF37-YDP63M4，XDSAF77RF37-YDP71M4，XDSAF77RF37-YDP80M4，XDSAF77RF37-YDP90S4，XDSAF77RF37-YE63M4，XDSAF77RF37-YE71M4，XDSAF77RF37-YE80M4，XDSAF77RF37-YE90S4，XDSAF77RF37-YEJ63M4，XDSAF77RF37-YEJ71M4，XDSAF77RF37-YEJ80M4，XDSAF77RF37-YEJ90S4，XDSAF77RF37-YEJB63M4，XDSAF77RF37-YEJB71M4，XDSAF77RF37-YEJB80M4，XDSAF77RF37-YEJB90S4，XDSAF77RF37-YP63M4，XDSAF77RF37-YP71M4，XDSAF77RF37-YP80M4，XDSAF77RF37-YP90S4，XDSAF77RF37-YPB63M4，XDSAF77RF37-YPB71M4，XDSAF77RF37-YPB80M4，XDSAF77RF37-YPB90S4，XDSAF77RF37-YPE63M4，XDSAF77RF37-YPE71M4，XDSAF77RF37-YPE80M4，XDSAF77RF37-YPE90S4，XDSAF77RF37-YSAF63M4，XDSAF77RF37-YSAF71M4，XDSAF77RF37-YSAF80M4，XDSAF77RF37-YSAF90S4，XDSAF77RF37-YVB63M4，XDSAF77RF37-YVB71M4，XDSAF77RF37-YVB80M4，XDSAF77RF37-YVB90S4，XDSAF77RF37-YVP63M4，XDSAF77RF37-YVP71M4，XDSAF77RF37-YVP80M4，XDSAF77RF37-YVP90S4，JCSAF77R37-Y63M4，JCSAF77R37-Y71M4，JCSAF77R37-Y80M4，JCSAF77R37-Y90M4，JCSAF77RF37-Y0.12KW，JCSAF77RF37-Y0.18KW，JCSAF77RF37-Y0.25KW，JCSAF77RF37-Y0.37KW，JCSAF77RF37-Y0.55KW，JCSAF77RF37-Y0.75KW，JCSAF77RF37-Y1.1KW，JCSAF77RF37-Y63M4，JCSAF77RF37-Y71M4，JCSAF77RF37-Y80M4，JCSAF77RF37-Y90M4，JCSAF77RF37-YB63M4，JCSAF77RF37-YB71M4，JCSAF77RF37-YB80M4，JCSAF77RF37-YB90S4，JCSAF77RF37-YDP63M4，JCSAF77RF37-YDP71M4，JCSAF77RF37-YDP80M4，JCSAF77RF37-YDP90S4，JCSAF77RF37-YE63M4，JCSAF77RF37-YE71M4，JCSAF77RF37-YE80M4，JCSAF77RF37-YE90S4，JCSAF77RF37-YEJ63M4，JCSAF77RF37-YEJ71M4，JCSAF77RF37-YEJ80M4，JCSAF77RF37-YEJ90S4，JCSAF77RF37-YEJB63M4，JCSAF77RF37-YEJB71M4，JCSAF77RF37-YEJB80M4，JCSAF77RF37-YEJB90S4，JCSAF77RF37-YP63M4，JCSAF77RF37-YP71M4，JCSAF77RF37-YP80M4，JCSAF77RF37-YP90S4，JCSAF77RF37-YPB63M4，JCSAF77RF37-YPB71M4，JCSAF77RF37-YPB80M4，JCSAF77RF37-YPB90S4，JCSAF77RF37-YPE63M4，JCSAF77RF37-YPE71M4，JCSAF77RF37-YPE80M4，JCSAF77RF37-YPE90S4，JCSAF77RF37-YSAF63M4，JCSAF77RF37-YSAF71M4，JCSAF77RF37-YSAF80M4，JCSAF77RF37-YSAF90S4，JCSAF77RF37-YVB63M4，JCSAF77RF37-YVB71M4，JCSAF77RF37-YVB80M4，JCSAF77RF37-YVB90S4，JCSAF77RF37-YVP63M4，JCSAF77RF37-YVP71M4，JCSAF77RF37-YVP80M4，JCSAF77RF37-YVP90S4，NSAF77R37-Y63M4，NSAF77R37-Y71M4，NSAF77R37-Y80M4，NSAF77R37-Y90M4，NSAF77RF37-Y0.12KW，NSAF77RF37-Y0.18KW，NSAF77RF37-Y0.25KW，NSAF77RF37-Y0.37KW，NSAF77RF37-Y0.55KW，NSAF77RF37-Y0.75KW，NSAF77RF37-Y1.1KW，NSAF77RF37-Y63M4，NSAF77RF37-Y71M4，NSAF77RF37-Y80M4，NSAF77RF37-Y90M4，NSAF77RF37-YB63M4，NSAF77RF37-YB71M4，NSAF77RF37-YB80M4，NSAF77RF37-YB90S4，NSAF77RF37-YDP63M4，NSAF77RF37-YDP71M4，NSAF77RF37-YDP80M4，NSAF77RF37-YDP90S4，NSAF77RF37-YE63M4，NSAF77RF37-YE71M4，NSAF77RF37-YE80M4，NSAF77RF37-YE90S4，NSAF77RF37-YEJ63M4，NSAF77RF37-YEJ71M4，NSAF77RF37-YEJ80M4，NSAF77RF37-YEJ90S4，NSAF77RF37-YEJB63M4，NSAF77RF37-YEJB71M4，NSAF77RF37-YEJB80M4，NSAF77RF37-YEJB90S4，NSAF77RF37-YP63M4，NSAF77RF37-YP71M4，NSAF77RF37-YP80M4，NSAF77RF37-YP90S4，NSAF77RF37-YPB63M4，NSAF77RF37-YPB71M4，NSAF77RF37-YPB80M4，NSAF77RF37-YPB90S4，NSAF77RF37-YPE63M4，NSAF77RF37-YPE71M4，NSAF77RF37-YPE80M4，NSAF77RF37-YPE90S4，NSAF77RF37-YSAF63M4，NSAF77RF37-YSAF71M4，NSAF77RF37-YSAF80M4，NSAF77RF37-YSAF90S4，NSAF77RF37-YVB63M4，NSAF77RF37-YVB71M4，NSAF77RF37-YVB80M4，NSAF77RF37-YVB90S4，NSAF77RF37-YVP63M4，NSAF77RF37-YVP71M4，NSAF77RF37-YVP80M4，NSAF77RF37-YVP90S4，SWAF77RW37-Y63M4，SWAF77RW37-Y71M4，SWAF77RW37-Y80M4，SWAF77RW37-Y90M4，SWAF77RWF37-Y0.12KW，SWAF77RWF37-Y0.18KW，SWAF77RWF37-Y0.25KW，SWAF77RWF37-Y0.37KW，SWAF77RWF37-Y0.55KW，SWAF77RWF37-Y0.75KW，SWAF77RWF37-Y1.1KW，SWAF77RWF37-Y63M4，SWAF77RWF37-Y71M4，SWAF77RWF37-Y80M4，SWAF77RWF37-Y90M4，SWAF77RWF37-YB63M4，SWAF77RWF37-YB71M4，SWAF77RWF37-YB80M4，SWAF77RWF37-YB90S4，SWAF77RWF37-YDP63M4，SWAF77RWF37-YDP71M4，SWAF77RWF37-YDP80M4，SWAF77RWF37-YDP90S4，SWAF77RWF37-YE63M4，SWAF77RWF37-YE71M4，SWAF77RWF37-YE80M4，SWAF77RWF37-YE90S4，SWAF77RWF37-YEJ63M4，SWAF77RWF37-YEJ71M4，SWAF77RWF37-YEJ80M4，SWAF77RWF37-YEJ90S4，SWAF77RWF37-YEJB63M4，SWAF77RWF37-YEJB71M4，SWAF77RWF37-YEJB80M4，SWAF77RWF37-YEJB90S4，SWAF77RWF37-YP63M4，SWAF77RWF37-YP71M4，SWAF77RWF37-YP80M4，SWAF77RWF37-YP90S4，SWAF77RWF37-YPB63M4，SWAF77RWF37-YPB71M4，SWAF77RWF37-YPB80M4，SWAF77RWF37-YPB90S4，SWAF77RWF37-YPE63M4，SWAF77RWF37-YPE71M4，SWAF77RWF37-YPE80M4，SWAF77RWF37-YPE90S4，SWAF77RWF37-YSAF63M4，SWAF77RWF37-YSAF71M4，SWAF77RWF37-YSAF80M4，SWAF77RWF37-YSAF90S4，SWAF77RWF37-YVB63M4，SWAF77RWF37-YVB71M4，SWAF77RWF37-YVB80M4，SWAF77RWF37-YVB90S4，SWAF77RWF37-YVP63M4，SWAF77RWF37-YVP71M4，SWAF77RWF37-YVP80M4，SWAF77RWF37-YVP90S4，SAF79R39-Y63M4，SAF79R39-Y71M4，SAF79R39-Y80M4，SAF79R39-Y90M4，SAF79RF39-Y0.12KW，SAF79RF39-Y0.18KW，SAF79RF39-Y0.25KW，SAF79RF39-Y0.39KW，SAF79RF39-Y0.55KW，SAF79RF39-Y0.75KW，SAF79RF39-Y1.1KW，SAF79RF39-Y63M4，SAF79RF39-Y71M4，SAF79RF39-Y80M4，SAF79RF39-Y90M4，SAF79RF39-YB63M4，SAF79RF39-YB71M4，SAF79RF39-YB80M4，SAF79RF39-YB90S4，SAF79RF39-YDP63M4，SAF79RF39-YDP71M4，SAF79RF39-YDP80M4，SAF79RF39-YDP90S4，SAF79RF39-YE63M4，SAF79RF39-YE71M4，SAF79RF39-YE80M4，SAF79RF39-YE90S4，SAF79RF39-YEJ63M4，SAF79RF39-YEJ71M4，SAF79RF39-YEJ80M4，SAF79RF39-YEJ90S4，SAF79RF39-YEJB63M4，SAF79RF39-YEJB71M4，SAF79RF39-YEJB80M4，SAF79RF39-YEJB90S4，SAF79RF39-YP63M4，SAF79RF39-YP71M4，SAF79RF39-YP80M4，SAF79RF39-YP90S4，SAF79RF39-YPB63M4，SAF79RF39-YPB71M4，SAF79RF39-YPB80M4，SAF79RF39-YPB90S4，SAF79RF39-YPE63M4，SAF79RF39-YPE71M4，SAF79RF39-YPE80M4，SAF79RF39-YPE90S4，SAF79RF39-YSAF63M4，SAF79RF39-YSAF71M4，SAF79RF39-YSAF80M4，SAF79RF39-YSAF90S4，SAF79RF39-YVB63M4，SAF79RF39-YVB71M4，SAF79RF39-YVB80M4，SAF79RF39-YVB90S4，SAF79RF39-YVP63M4，SAF79RF39-YVP71M4，SAF79RF39-YVP80M4，SAF79RF39-YVP90S4。

SAF79R39減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-safxiliejiansuji-cn.html

推薦型號：S79減速機
