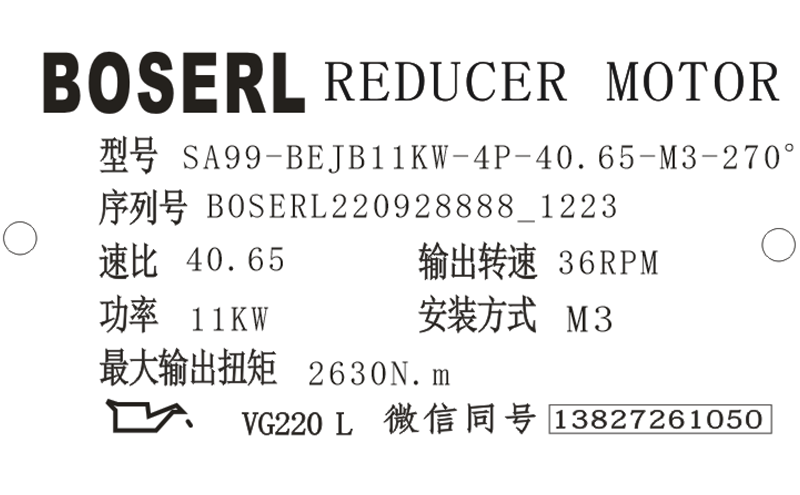

SA99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA99減速機選型樣本。

SA99-BEJB11KW-4P-40.65-M3-270°

SA：系列代號

99：減速機規格代號

BEJB：電機

11KW：電機功率

4P：電機級數

40.65：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

SA99減速機扭力臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA99減速機的扭力臂安裝示意圖：兩面均安裝支架。齒輪減速電機

SA99減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA99減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。自鎖減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。伺服電機連接減速機

SA99減速機型號：

NSA97-Y1.1KW，NSA97-Y1.5KW，NSA97-Y100M4，NSA97-Y112M4，NSA97-Y11KW，NSA97-Y132M4，NSA97-Y15KW，NSA97-Y160M4，NSA97-Y18.5KW，NSA97-Y180M4，NSA97-Y2.2KW，NSA97-Y200M4，NSA97-Y22KW，NSA97-Y3KW，NSA97-Y4KW，NSA97-Y5.5KW，NSA97-Y7.5KW，NSA97-Y80M4，NSA97-Y90M4，NSA97-YB100M4，NSA97-YB112M4，NSA97-YB132M4，NSA97-YB160M4，NSA97-YB180M4，NSA97-YB200M4，NSA97-YB80M4，NSA97-YB90M4，NSA97-YDP100M4，NSA97-YDP112M4，NSA97-YDP132M4，NSA97-YDP160M4，NSA97-YDP180M4，NSA97-YDP200M4，NSA97-YDP80M4，NSA97-YDP90M4，NSA97-YE100M4，NSA97-YE112M4，NSA97-YE132M4，NSA97-YE160M4，NSA97-YE180M4，NSA97-YE200M4，NSA97-YE80M4，NSA97-YE90M4，NSA97-YEJ100M4，NSA97-YEJ112M4，NSA97-YEJ132M4，NSA97-YEJ160M4，NSA97-YEJ180M4，NSA97-YEJ200M4，NSA97-YEJ80M4，NSA97-YEJ90M4，NSA97-YEJB100M4，NSA97-YEJB112M4，NSA97-YEJB132M4，NSA97-YEJB160M4，NSA97-YEJB180M4，NSA97-YEJB200M4，NSA97-YEJB80M4，NSA97-YEJB90M4，NSA97-YP100M4，NSA97-YP112M4，NSA97-YP132M4，NSA97-YP160M4，NSA97-YP180M4，NSA97-YP200M4，NSA97-YP80M4，NSA97-YP90M4，NSA97-YPB100M4，NSA97-YPB112M4，NSA97-YPB132M4，NSA97-YPB160M4，NSA97-YPB180M4，NSA97-YPB200M4，NSA97-YPB80M4，NSA97-YPB90M4，NSA97-YPE100M4，NSA97-YPE112M4，NSA97-YPE132M4，NSA97-YPE160M4，NSA97-YPE180M4，NSA97-YPE200M4，NSA97-YPE80M4，NSA97-YPE90M4，NSA97-YS100M4，NSA97-YS112M4，NSA97-YS132M4，NSA97-YS160M4，NSA97-YS180M4，NSA97-YS200M4，NSA97-YS80M4，NSA97-YS90M4，NSA97-YVB100M4，NSA97-YVB112M4，NSA97-YVB132M4，NSA97-YVB160M4，NSA97-YVB180M4，NSA97-YVB200M4，NSA97-YVB80M4，NSA97-YVB90M4，NSA97-YVP100M4，NSA97-YVP112M4，NSA97-YVP132M4，NSA97-YVP160M4，NSA97-YVP180M4，NSA97-YVP200M4，NSA97-YVP80M4，NSA97-YVP90M4，NSA97-YVPEJ100M4，NSA97-YVPEJ112M4，NSA97-YVPEJ132M4，NSA97-YVPEJ160M4，NSA97-YVPEJ180M4，NSA97-YVPEJ200M4，NSA97-YVPEJ80M4，NSA97-YVPEJ90M4，WSA97-Y1.1KW，WSA97-Y1.5KW，WSA97-Y100M4，WSA97-Y112M4，WSA97-Y11KW，WSA97-Y132M4，WSA97-Y15KW，WSA97-Y160M4，WSA97-Y18.5KW，WSA97-Y180M4，WSA97-Y2.2KW，WSA97-Y200M4，WSA97-Y22KW，WSA97-Y3KW，WSA97-Y4KW，WSA97-Y5.5KW，WSA97-Y7.5KW，WSA97-Y80M4，WSA97-Y90M4，WSA97-YB100M4，WSA97-YB112M4，WSA97-YB132M4，WSA97-YB160M4，WSA97-YB180M4，WSA97-YB200M4，WSA97-YB80M4，WSA97-YB90M4，WSA97-YDP100M4，WSA97-YDP112M4，WSA97-YDP132M4，WSA97-YDP160M4，WSA97-YDP180M4，WSA97-YDP200M4，WSA97-YDP80M4，WSA97-YDP90M4，WSA97-YE100M4，WSA97-YE112M4，WSA97-YE132M4，WSA97-YE160M4，WSA97-YE180M4，WSA97-YE200M4，WSA97-YE80M4，WSA97-YE90M4，WSA97-YEJ100M4，WSA97-YEJ112M4，WSA97-YEJ132M4，WSA97-YEJ160M4，WSA97-YEJ180M4，WSA97-YEJ200M4，WSA97-YEJ80M4，WSA97-YEJ90M4，WSA97-YEJB100M4，WSA97-YEJB112M4，WSA97-YEJB132M4，WSA97-YEJB160M4，WSA97-YEJB180M4，WSA97-YEJB200M4，WSA97-YEJB80M4，WSA97-YEJB90M4，WSA97-YP100M4，WSA97-YP112M4，WSA97-YP132M4，WSA97-YP160M4，WSA97-YP180M4，WSA97-YP200M4，WSA97-YP80M4，WSA97-YP90M4，WSA97-YPB100M4，WSA97-YPB112M4，WSA97-YPB132M4，WSA97-YPB160M4，WSA97-YPB180M4，WSA97-YPB200M4，WSA97-YPB80M4，WSA97-YPB90M4，WSA97-YPE100M4，WSA97-YPE112M4，WSA97-YPE132M4，WSA97-YPE160M4，WSA97-YPE180M4，WSA97-YPE200M4，WSA97-YPE80M4，WSA97-YPE90M4，WSA97-YS100M4，WSA97-YS112M4，WSA97-YS132M4，WSA97-YS160M4，WSA97-YS180M4，WSA97-YS200M4，WSA97-YS80M4，WSA97-YS90M4，WSA97-YVB100M4，WSA97-YVB112M4，WSA97-YVB132M4，WSA97-YVB160M4，WSA97-YVB180M4，WSA97-YVB200M4，WSA97-YVB80M4，WSA97-YVB90M4，WSA97-YVP100M4，WSA97-YVP112M4，WSA97-YVP132M4，WSA97-YVP160M4，WSA97-YVP180M4，WSA97-YVP200M4，WSA97-YVP80M4，WSA97-YVP90M4，WSA97-YVPEJ100M4，WSA97-YVPEJ112M4，WSA97-YVPEJ132M4，WSA97-YVPEJ160M4，WSA97-YVPEJ180M4，WSA97-YVPEJ200M4，WSA97-YVPEJ80M4，WSA97-YVPEJ90M4，ASA97-Y1.1KW，ASA97-Y1.5KW，ASA97-Y100M4，ASA97-Y112M4，ASA97-Y11KW，ASA97-Y132M4，ASA97-Y15KW，ASA97-Y160M4，ASA97-Y18.5KW，ASA97-Y180M4，ASA97-Y2.2KW，ASA97-Y200M4，ASA97-Y22KW，ASA97-Y3KW，ASA97-Y4KW，ASA97-Y5.5KW，ASA97-Y7.5KW，ASA97-Y80M4，ASA97-Y90M4，ASA97-YB100M4，ASA97-YB112M4，ASA97-YB132M4，ASA97-YB160M4，ASA97-YB180M4，ASA97-YB200M4，ASA97-YB80M4，ASA97-YB90M4，ASA97-YDP100M4，ASA97-YDP112M4，ASA97-YDP132M4，ASA97-YDP160M4，ASA97-YDP180M4，ASA97-YDP200M4，ASA97-YDP80M4，ASA97-YDP90M4，ASA97-YE100M4，ASA97-YE112M4，ASA97-YE132M4，ASA97-YE160M4，ASA97-YE180M4，ASA97-YE200M4，ASA97-YE80M4，ASA97-YE90M4，ASA97-YEJ100M4，ASA97-YEJ112M4，ASA97-YEJ132M4，ASA97-YEJ160M4，ASA97-YEJ180M4，ASA97-YEJ200M4，ASA97-YEJ80M4，ASA97-YEJ90M4，ASA97-YEJB100M4，ASA97-YEJB112M4，ASA97-YEJB132M4，ASA97-YEJB160M4，ASA97-YEJB180M4，ASA97-YEJB200M4，ASA97-YEJB80M4，ASA97-YEJB90M4，ASA97-YP100M4，ASA97-YP112M4，ASA97-YP132M4，ASA97-YP160M4，ASA97-YP180M4，ASA97-YP200M4，ASA97-YP80M4，ASA97-YP90M4，ASA97-YPB100M4，ASA97-YPB112M4，ASA97-YPB132M4，ASA97-YPB160M4，ASA97-YPB180M4，ASA97-YPB200M4，ASA97-YPB80M4，ASA97-YPB90M4，ASA97-YPE100M4，ASA97-YPE112M4，ASA97-YPE132M4，ASA97-YPE160M4，ASA97-YPE180M4，ASA97-YPE200M4，ASA97-YPE80M4，ASA97-YPE90M4，ASA97-YS100M4，ASA97-YS112M4，ASA97-YS132M4，ASA97-YS160M4，ASA97-YS180M4，ASA97-YS200M4，ASA97-YS80M4，ASA97-YS90M4，ASA97-YVB100M4，ASA97-YVB112M4，ASA97-YVB132M4，ASA97-YVB160M4，ASA97-YVB180M4，ASA97-YVB200M4，ASA97-YVB80M4，ASA97-YVB90M4，ASA97-YVP100M4，ASA97-YVP112M4，ASA97-YVP132M4，ASA97-YVP160M4，ASA97-YVP180M4，ASA97-YVP200M4，ASA97-YVP80M4，ASA97-YVP90M4，ASA97-YVPEJ100M4，ASA97-YVPEJ112M4，ASA97-YVPEJ132M4，ASA97-YVPEJ160M4，ASA97-YVPEJ180M4，ASA97-YVPEJ200M4，ASA97-YVPEJ80M4，ASA97-YVPEJ90M4，SSA97-Y1.1KW，SSA97-Y1.5KW，SSA97-Y100M4，SSA97-Y112M4，SSA97-Y11KW，SSA97-Y132M4，SSA97-Y15KW，SSA97-Y160M4，SSA97-Y18.5KW，SSA97-Y180M4，SSA97-Y2.2KW，SSA97-Y200M4，SSA97-Y22KW，SSA97-Y3KW，SSA97-Y4KW，SSA97-Y5.5KW，SSA97-Y7.5KW，SSA97-Y80M4，SSA97-Y90M4，SSA97-YB100M4，SSA97-YB112M4，SSA97-YB132M4，SSA97-YB160M4，SSA97-YB180M4，SSA97-YB200M4，SSA97-YB80M4，SSA97-YB90M4，SSA97-YDP100M4，SSA97-YDP112M4，SSA97-YDP132M4，SSA97-YDP160M4，SSA97-YDP180M4，SSA97-YDP200M4，SSA97-YDP80M4，SSA97-YDP90M4，SSA97-YE100M4，SSA97-YE112M4，SSA97-YE132M4，SSA97-YE160M4，SSA97-YE180M4，SSA97-YE200M4，SSA97-YE80M4，SSA97-YE90M4，SSA97-YEJ100M4，SSA97-YEJ112M4，SSA97-YEJ132M4，SSA97-YEJ160M4，SSA97-YEJ180M4，SSA97-YEJ200M4，SSA97-YEJ80M4，SSA97-YEJ90M4，SSA97-YEJB100M4，SSA97-YEJB112M4，SSA97-YEJB132M4，SSA97-YEJB160M4，SSA97-YEJB180M4，SSA97-YEJB200M4，SSA97-YEJB80M4，SSA97-YEJB90M4，SSA97-YP100M4，SSA97-YP112M4，SSA97-YP132M4，SSA97-YP160M4，SSA97-YP180M4，SSA97-YP200M4，SSA97-YP80M4，SSA97-YP90M4，SSA97-YPB100M4，SSA97-YPB112M4，SSA97-YPB132M4，SSA97-YPB160M4，SSA97-YPB180M4，SSA97-YPB200M4，SSA97-YPB80M4，SSA97-YPB90M4，SSA97-YPE100M4，SSA97-YPE112M4，SSA97-YPE132M4，SSA97-YPE160M4，SSA97-YPE180M4，SSA97-YPE200M4，SSA97-YPE80M4，SSA97-YPE90M4，SSA97-YS100M4，SSA97-YS112M4，SSA97-YS132M4，SSA97-YS160M4，SSA97-YS180M4，SSA97-YS200M4，SSA97-YS80M4，SSA97-YS90M4，SSA97-YVB100M4，SSA97-YVB112M4，SSA97-YVB132M4，SSA97-YVB160M4，SSA97-YVB180M4，SSA97-YVB200M4，SSA97-YVB80M4，SSA97-YVB90M4，SSA97-YVP100M4，SSA97-YVP112M4，SSA97-YVP132M4，SSA97-YVP160M4，SSA97-YVP180M4，SSA97-YVP200M4，SSA97-YVP80M4，SSA97-YVP90M4，SSA97-YVPEJ100M4，SSA97-YVPEJ112M4，SSA97-YVPEJ132M4，SSA97-YVPEJ160M4，SSA97-YVPEJ180M4，SSA97-YVPEJ200M4，SSA97-YVPEJ80M4，SSA97-YVPEJ90M4，GSA99-Y1.1KW，GSA99-Y1.5KW，GSA99-Y100M4，GSA99-Y112M4，GSA99-Y11KW，GSA99-Y132M4，GSA99-Y15KW，GSA99-Y160M4，GSA99-Y18.5KW，GSA99-Y180M4，GSA99-Y2.2KW，GSA99-Y200M4，GSA99-Y22KW，GSA99-Y3KW，GSA99-Y4KW，GSA99-Y5.5KW，GSA99-Y7.5KW，GSA99-Y80M4，GSA99-Y90M4，GSA99-YB100M4，GSA99-YB112M4，GSA99-YB132M4，GSA99-YB160M4，GSA99-YB180M4，GSA99-YB200M4，GSA99-YB80M4，GSA99-YB90M4，GSA99-YDP100M4，GSA99-YDP112M4，GSA99-YDP132M4，GSA99-YDP160M4，GSA99-YDP180M4，GSA99-YDP200M4，GSA99-YDP80M4，GSA99-YDP90M4，GSA99-YE100M4，GSA99-YE112M4，GSA99-YE132M4，GSA99-YE160M4，GSA99-YE180M4，GSA99-YE200M4，GSA99-YE80M4，GSA99-YE90M4，GSA99-YEJ100M4，GSA99-YEJ112M4，GSA99-YEJ132M4，GSA99-YEJ160M4，GSA99-YEJ180M4，GSA99-YEJ200M4，GSA99-YEJ80M4，GSA99-YEJ90M4，GSA99-YEJB100M4，GSA99-YEJB112M4，GSA99-YEJB132M4，GSA99-YEJB160M4，GSA99-YEJB180M4，GSA99-YEJB200M4，GSA99-YEJB80M4，GSA99-YEJB90M4，GSA99-YP100M4，GSA99-YP112M4，GSA99-YP132M4，GSA99-YP160M4，GSA99-YP180M4，GSA99-YP200M4，GSA99-YP80M4，GSA99-YP90M4，GSA99-YPB100M4，GSA99-YPB112M4，GSA99-YPB132M4，GSA99-YPB160M4，GSA99-YPB180M4，GSA99-YPB200M4，GSA99-YPB80M4，GSA99-YPB90M4，GSA99-YPE100M4，GSA99-YPE112M4，GSA99-YPE132M4，GSA99-YPE160M4，GSA99-YPE180M4，GSA99-YPE200M4，GSA99-YPE80M4，GSA99-YPE90M4，GSA99-YS100M4，GSA99-YS112M4，GSA99-YS132M4，GSA99-YS160M4，GSA99-YS180M4，GSA99-YS200M4，GSA99-YS80M4，GSA99-YS90M4，GSA99-YVB100M4，GSA99-YVB112M4，GSA99-YVB132M4，GSA99-YVB160M4，GSA99-YVB180M4，GSA99-YVB200M4，GSA99-YVB80M4，GSA99-YVB90M4，GSA99-YVP100M4，GSA99-YVP112M4，GSA99-YVP132M4，GSA99-YVP160M4，GSA99-YVP180M4，GSA99-YVP200M4，GSA99-YVP80M4，GSA99-YVP90M4，GSA99-YVPEJ100M4，GSA99-YVPEJ112M4，GSA99-YVPEJ132M4，GSA99-YVPEJ160M4，GSA99-YVPEJ180M4，GSA99-YVPEJ200M4，GSA99-YVPEJ80M4，GSA99-YVPEJ90M4。

SA99減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：S99減速機
