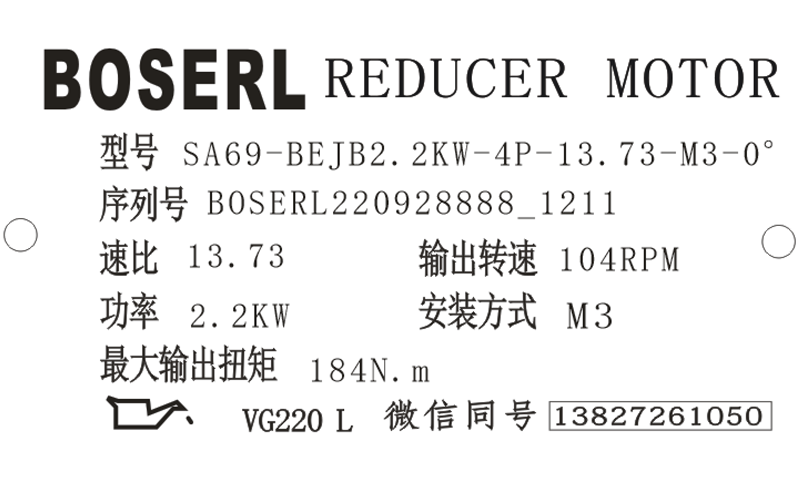

SA69減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA69減速機選型樣本。

SA69-BEJB2.2KW-4P-13.73-M3-0°

SA：系列代號

69：減速機規格代號

BEJB：電機

2.2KW：電機功率

4P：電機級數

13.73：減速機傳動比

M3：減速機安裝位置

0°：接線盒位置

SA69減速機扭力臂安裝：

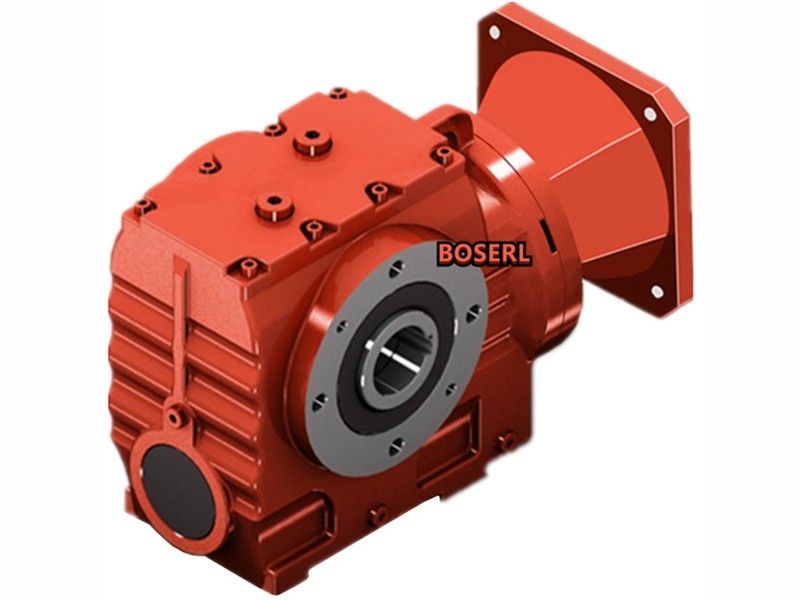

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA69減速機的扭力臂安裝示意圖：兩面均安裝支架。齒輪減速電機

SA69減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA69減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。自鎖減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。伺服電機連接減速機

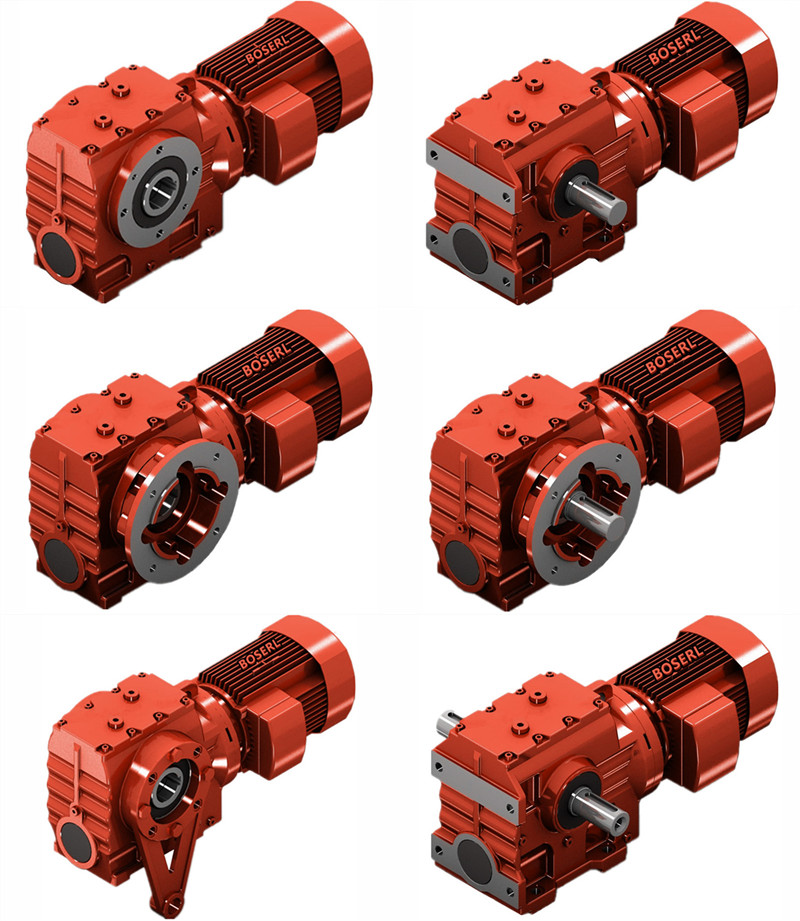

SA69減速機型號：

NSA67-Y0.18KW，NSA67-Y0.25KW，NSA67-Y0.37KW，NSA67-Y0.55KW，NSA67-Y0.75KW，NSA67-Y1.1KW，NSA67-Y1.5KW，NSA67-Y100M4，NSA67-Y112M4，NSA67-Y132M4，NSA67-Y2.2KW，NSA67-Y3KW，NSA67-Y4KW，NSA67-Y5.5KW，NSA67-Y63M4，NSA67-Y71M4，NSA67-Y80M4，NSA67-Y90M4，NSA67-YB100M4，NSA67-YB112M4，NSA67-YB132M4，NSA67-YB63M4，NSA67-YB71M4，NSA67-YB80M4，NSA67-YB90M4，NSA67-YDP100M4，NSA67-YDP112M4，NSA67-YDP132M4，NSA67-YDP63M4，NSA67-YDP71M4，NSA67-YDP80M4，NSA67-YDP90M4，NSA67-YE100M4，NSA67-YE112M4，NSA67-YE132M4，NSA67-YE63M4，NSA67-YE71M4，NSA67-YE80M4，NSA67-YE90M4，NSA67-YEJ100M4，NSA67-YEJ112M4，NSA67-YEJ132M4，NSA67-YEJ63M4，NSA67-YEJ71M4，NSA67-YEJ80M4，NSA67-YEJ90M4，NSA67-YEJB100M4，NSA67-YEJB112M4，NSA67-YEJB132M4，NSA67-YEJB63M4，NSA67-YEJB71M4，NSA67-YEJB80M4，NSA67-YEJB90M4，NSA67-YP100M4，NSA67-YP112M4，NSA67-YP132M4，NSA67-YP63M4，NSA67-YP71M4，NSA67-YP80M4，NSA67-YP90M4，NSA67-YPB100M4，NSA67-YPB112M4，NSA67-YPB132M4，NSA67-YPB63M4，NSA67-YPB71M4，NSA67-YPB80M4，NSA67-YPB90M4，NSA67-YPE100M4，NSA67-YPE112M4，NSA67-YPE132M4，NSA67-YPE63M4，NSA67-YPE71M4，NSA67-YPE80M4，NSA67-YPE90M4，NSA67-YS100M4，NSA67-YS112M4，NSA67-YS132M4，NSA67-YS63M4，NSA67-YS71M4，NSA67-YS80M4，NSA67-YS90M4，NSA67-YVB100M4，NSA67-YVB112M4，NSA67-YVB132M4，NSA67-YVB63M4，NSA67-YVB71M4，NSA67-YVB80M4，NSA67-YVB90M4，NSA67-YVP100M4，NSA67-YVP112M4，NSA67-YVP132M4，NSA67-YVP63M4，NSA67-YVP71M4，NSA67-YVP80M4，NSA67-YVP90M4，NSA67-YVPEJ100M4，NSA67-YVPEJ112M4，NSA67-YVPEJ132M4，NSA67-YVPEJ63M4，NSA67-YVPEJ71M4，NSA67-YVPEJ80M4，NSA67-YVPEJ90M4，WSA67-Y0.18KW，WSA67-Y0.25KW，WSA67-Y0.37KW，WSA67-Y0.55KW，WSA67-Y0.75KW，WSA67-Y1.1KW，WSA67-Y1.5KW，WSA67-Y100M4，WSA67-Y112M4，WSA67-Y132M4，WSA67-Y2.2KW，WSA67-Y3KW，WSA67-Y4KW，WSA67-Y5.5KW，WSA67-Y63M4，WSA67-Y71M4，WSA67-Y80M4，WSA67-Y90M4，WSA67-YB100M4，WSA67-YB112M4，WSA67-YB132M4，WSA67-YB63M4，WSA67-YB71M4，WSA67-YB80M4，WSA67-YB90M4，WSA67-YDP100M4，WSA67-YDP112M4，WSA67-YDP132M4，WSA67-YDP63M4，WSA67-YDP71M4，WSA67-YDP80M4，WSA67-YDP90M4，WSA67-YE100M4，WSA67-YE112M4，WSA67-YE132M4，WSA67-YE63M4，WSA67-YE71M4，WSA67-YE80M4，WSA67-YE90M4，WSA67-YEJ100M4，WSA67-YEJ112M4，WSA67-YEJ132M4，WSA67-YEJ63M4，WSA67-YEJ71M4，WSA67-YEJ80M4，WSA67-YEJ90M4，WSA67-YEJB100M4，WSA67-YEJB112M4，WSA67-YEJB132M4，WSA67-YEJB63M4，WSA67-YEJB71M4，WSA67-YEJB80M4，WSA67-YEJB90M4，WSA67-YP100M4，WSA67-YP112M4，WSA67-YP132M4，WSA67-YP63M4，WSA67-YP71M4，WSA67-YP80M4，WSA67-YP90M4，WSA67-YPB100M4，WSA67-YPB112M4，WSA67-YPB132M4，WSA67-YPB63M4，WSA67-YPB71M4，WSA67-YPB80M4，WSA67-YPB90M4，WSA67-YPE100M4，WSA67-YPE112M4，WSA67-YPE132M4，WSA67-YPE63M4，WSA67-YPE71M4，WSA67-YPE80M4，WSA67-YPE90M4，WSA67-YS100M4，WSA67-YS112M4，WSA67-YS132M4，WSA67-YS63M4，WSA67-YS71M4，WSA67-YS80M4，WSA67-YS90M4，WSA67-YVB100M4，WSA67-YVB112M4，WSA67-YVB132M4，WSA67-YVB63M4，WSA67-YVB71M4，WSA67-YVB80M4，WSA67-YVB90M4，WSA67-YVP100M4，WSA67-YVP112M4，WSA67-YVP132M4，WSA67-YVP63M4，WSA67-YVP71M4，WSA67-YVP80M4，WSA67-YVP90M4，WSA67-YVPEJ100M4，WSA67-YVPEJ112M4，WSA67-YVPEJ132M4，WSA67-YVPEJ63M4，WSA67-YVPEJ71M4，WSA67-YVPEJ80M4，WSA67-YVPEJ90M4，ASA67-Y0.18KW，ASA67-Y0.25KW，ASA67-Y0.37KW，ASA67-Y0.55KW，ASA67-Y0.75KW，ASA67-Y1.1KW，ASA67-Y1.5KW，ASA67-Y100M4，ASA67-Y112M4，ASA67-Y132M4，ASA67-Y2.2KW，ASA67-Y3KW，ASA67-Y4KW，ASA67-Y5.5KW，ASA67-Y63M4，ASA67-Y71M4，ASA67-Y80M4，ASA67-Y90M4，ASA67-YB100M4，ASA67-YB112M4，ASA67-YB132M4，ASA67-YB63M4，ASA67-YB71M4，ASA67-YB80M4，ASA67-YB90M4，ASA67-YDP100M4，ASA67-YDP112M4，ASA67-YDP132M4，ASA67-YDP63M4，ASA67-YDP71M4，ASA67-YDP80M4，ASA67-YDP90M4，ASA67-YE100M4，ASA67-YE112M4，ASA67-YE132M4，ASA67-YE63M4，ASA67-YE71M4，ASA67-YE80M4，ASA67-YE90M4，ASA67-YEJ100M4，ASA67-YEJ112M4，ASA67-YEJ132M4，ASA67-YEJ63M4，ASA67-YEJ71M4，ASA67-YEJ80M4，ASA67-YEJ90M4，ASA67-YEJB100M4，ASA67-YEJB112M4，ASA67-YEJB132M4，ASA67-YEJB63M4，ASA67-YEJB71M4，ASA67-YEJB80M4，ASA67-YEJB90M4，ASA67-YP100M4，ASA67-YP112M4，ASA67-YP132M4，ASA67-YP63M4，ASA67-YP71M4，ASA67-YP80M4，ASA67-YP90M4，ASA67-YPB100M4，ASA67-YPB112M4，ASA67-YPB132M4，ASA67-YPB63M4，ASA67-YPB71M4，ASA67-YPB80M4，ASA67-YPB90M4，ASA67-YPE100M4，ASA67-YPE112M4，ASA67-YPE132M4，ASA67-YPE63M4，ASA67-YPE71M4，ASA67-YPE80M4，ASA67-YPE90M4，ASA67-YS100M4，ASA67-YS112M4，ASA67-YS132M4，ASA67-YS63M4，ASA67-YS71M4，ASA67-YS80M4，ASA67-YS90M4，ASA67-YVB100M4，ASA67-YVB112M4，ASA67-YVB132M4，ASA67-YVB63M4，ASA67-YVB71M4，ASA67-YVB80M4，ASA67-YVB90M4，ASA67-YVP100M4，ASA67-YVP112M4，ASA67-YVP132M4，ASA67-YVP63M4，ASA67-YVP71M4，ASA67-YVP80M4，ASA67-YVP90M4，ASA67-YVPEJ100M4，ASA67-YVPEJ112M4，ASA67-YVPEJ132M4，ASA67-YVPEJ63M4，ASA67-YVPEJ71M4，ASA67-YVPEJ80M4，ASA67-YVPEJ90M4，SSA67-Y0.18KW，SSA67-Y0.25KW，SSA67-Y0.37KW，SSA67-Y0.55KW，SSA67-Y0.75KW，SSA67-Y1.1KW，SSA67-Y1.5KW，SSA67-Y100M4，SSA67-Y112M4，SSA67-Y132M4，SSA67-Y2.2KW，SSA67-Y3KW，SSA67-Y4KW，SSA67-Y5.5KW，SSA67-Y63M4，SSA67-Y71M4，SSA67-Y80M4，SSA67-Y90M4，SSA67-YB100M4，SSA67-YB112M4，SSA67-YB132M4，SSA67-YB63M4，SSA67-YB71M4，SSA67-YB80M4，SSA67-YB90M4，SSA67-YDP100M4，SSA67-YDP112M4，SSA67-YDP132M4，SSA67-YDP63M4，SSA67-YDP71M4，SSA67-YDP80M4，SSA67-YDP90M4，SSA67-YE100M4，SSA67-YE112M4，SSA67-YE132M4，SSA67-YE63M4，SSA67-YE71M4，SSA67-YE80M4，SSA67-YE90M4，SSA67-YEJ100M4，SSA67-YEJ112M4，SSA67-YEJ132M4，SSA67-YEJ63M4，SSA67-YEJ71M4，SSA67-YEJ80M4，SSA67-YEJ90M4，SSA67-YEJB100M4，SSA67-YEJB112M4，SSA67-YEJB132M4，SSA67-YEJB63M4，SSA67-YEJB71M4，SSA67-YEJB80M4，SSA67-YEJB90M4，SSA67-YP100M4，SSA67-YP112M4，SSA67-YP132M4，SSA67-YP63M4，SSA67-YP71M4，SSA67-YP80M4，SSA67-YP90M4，SSA67-YPB100M4，SSA67-YPB112M4，SSA67-YPB132M4，SSA67-YPB63M4，SSA67-YPB71M4，SSA67-YPB80M4，SSA67-YPB90M4，SSA67-YPE100M4，SSA67-YPE112M4，SSA67-YPE132M4，SSA67-YPE63M4，SSA67-YPE71M4，SSA67-YPE80M4，SSA67-YPE90M4，SSA67-YS100M4，SSA67-YS112M4，SSA67-YS132M4，SSA67-YS63M4，SSA67-YS71M4，SSA67-YS80M4，SSA67-YS90M4，SSA67-YVB100M4，SSA67-YVB112M4，SSA67-YVB132M4，SSA67-YVB63M4，SSA67-YVB71M4，SSA67-YVB80M4，SSA67-YVB90M4，SSA67-YVP100M4，SSA67-YVP112M4，SSA67-YVP132M4，SSA67-YVP63M4，SSA67-YVP71M4，SSA67-YVP80M4，SSA67-YVP90M4，SSA67-YVPEJ100M4，SSA67-YVPEJ112M4，SSA67-YVPEJ132M4，SSA67-YVPEJ63M4，SSA67-YVPEJ71M4，SSA67-YVPEJ80M4，SSA67-YVPEJ90M4，GSA69-Y0.18KW，GSA69-Y0.25KW，GSA69-Y0.37KW，GSA69-Y0.55KW，GSA69-Y0.75KW，GSA69-Y1.1KW，GSA69-Y1.5KW，GSA69-Y100M4，GSA69-Y112M4，GSA69-Y132M4，GSA69-Y2.2KW，GSA69-Y3KW，GSA69-Y4KW，GSA69-Y5.5KW，GSA69-Y63M4，GSA69-Y71M4，GSA69-Y80M4，GSA69-Y90M4，GSA69-YB100M4，GSA69-YB112M4，GSA69-YB132M4，GSA69-YB63M4，GSA69-YB71M4，GSA69-YB80M4，GSA69-YB90M4，GSA69-YDP100M4，GSA69-YDP112M4，GSA69-YDP132M4，GSA69-YDP63M4，GSA69-YDP71M4，GSA69-YDP80M4，GSA69-YDP90M4，GSA69-YE100M4，GSA69-YE112M4，GSA69-YE132M4，GSA69-YE63M4，GSA69-YE71M4，GSA69-YE80M4，GSA69-YE90M4，GSA69-YEJ100M4，GSA69-YEJ112M4，GSA69-YEJ132M4，GSA69-YEJ63M4，GSA69-YEJ71M4，GSA69-YEJ80M4，GSA69-YEJ90M4，GSA69-YEJB100M4，GSA69-YEJB112M4，GSA69-YEJB132M4，GSA69-YEJB63M4，GSA69-YEJB71M4，GSA69-YEJB80M4，GSA69-YEJB90M4，GSA69-YP100M4，GSA69-YP112M4，GSA69-YP132M4，GSA69-YP63M4，GSA69-YP71M4，GSA69-YP80M4，GSA69-YP90M4，GSA69-YPB100M4，GSA69-YPB112M4，GSA69-YPB132M4，GSA69-YPB63M4，GSA69-YPB71M4，GSA69-YPB80M4，GSA69-YPB90M4，GSA69-YPE100M4，GSA69-YPE112M4，GSA69-YPE132M4，GSA69-YPE63M4，GSA69-YPE71M4，GSA69-YPE80M4，GSA69-YPE90M4，GSA69-YS100M4，GSA69-YS112M4，GSA69-YS132M4，GSA69-YS63M4，GSA69-YS71M4，GSA69-YS80M4，GSA69-YS90M4，GSA69-YVB100M4，GSA69-YVB112M4，GSA69-YVB132M4，GSA69-YVB63M4，GSA69-YVB71M4，GSA69-YVB80M4，GSA69-YVB90M4，GSA69-YVP100M4，GSA69-YVP112M4，GSA69-YVP132M4，GSA69-YVP63M4，GSA69-YVP71M4，GSA69-YVP80M4，GSA69-YVP90M4，GSA69-YVPEJ100M4，GSA69-YVPEJ112M4，GSA69-YVPEJ132M4，GSA69-YVPEJ63M4，GSA69-YVPEJ71M4，GSA69-YVPEJ80M4，GSA69-YVPEJ90M4。

SA69減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：S69減速機
