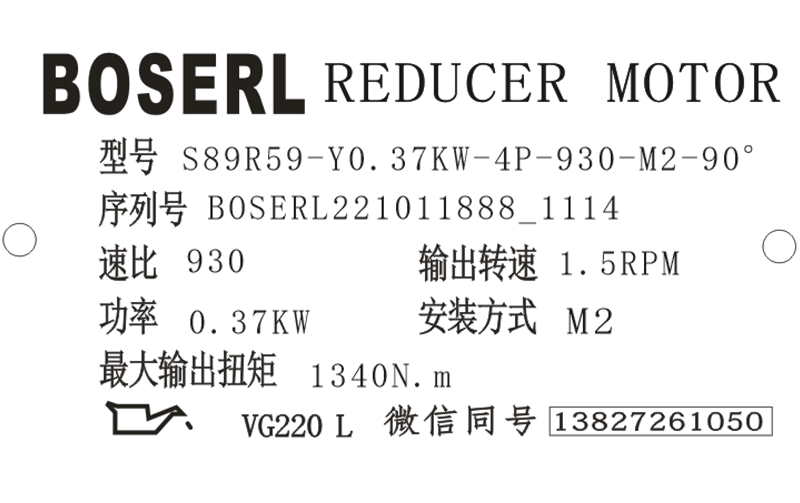

S89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的S89R59減速機選型樣本。

S89R59-Y0.37KW-4P-930-M2-90°

S/R：系列代號

89/59：減速機規格代號

Y：電機

0.37KW：電機功率

4P：電機級數

930：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

S89R59減速機電機接線注意事項：

電機本體并不附帶保護裝置。按照電氣設備技術標準的規定，必須安裝過載保護裝置。同時，推薦安裝漏電斷路器等其它保護裝置。否則有可能會導致?lián)p傷、觸電、火災、燒傷。齒輪減速電機

請將接線時的電壓壓降控制在2%以內，接線距離過長，可導致電壓壓降過大，電機可能無法啟動。

進行反轉時，請務必先暫停，然后開始反轉。逆向制動引起的正反運轉可能會損壞裝置。

附帶制動器時，制動線圈應與電機繞組同步通斷。

測定絕緣電阻時，請勿觸摸端子。否則有可能會導致觸電。

若繞組通制動不通，電機會卡死燒機；若制動通繞組不通，有可能會導致線圈燒毀、火災。自鎖減速機

S89R59減速機電機噪音故障維修：

風葉擦風罩將，風葉/風罩扳正，或更換變型零部件；

軸承壞，更換軸承；

底板松動，擰緊固定螺栓；

電機缺相運行:電源接觸不良，修復觸點及電源線路；

電機缺相運行:線圈斷路，更換定子線圈；

氣隙不均，檢查并校正軸承座配合/更換端蓋或法蘭；

定轉子擦，更換電機；

轉子不平衡量大，重新校平衡；S系列減速機

轉子斷條，更換轉子；線圈內有一個線苞嵌反，更換定子線圈。

S89R59減速電機型號：

YQS87R57-Y63M4，YQS87R57-Y71M4，YQS87R57-Y80M4，YQS87R57-Y90M4，YQS87RF57-Y0.12KW，YQS87RF57-Y0.18KW，YQS87RF57-Y0.25KW，YQS87RF57-Y0.37KW，YQS87RF57-Y0.55KW，YQS87RF57-Y0.75KW，YQS87RF57-Y1.1KW，YQS87RF57-Y1.5KW，YQS87RF57-Y63M4，YQS87RF57-Y71M4，YQS87RF57-Y80M4，YQS87RF57-Y90M4，YQS87RF57-YB63M4，YQS87RF57-YB71M4，YQS87RF57-YB80M4，YQS87RF57-YB90S4，YQS87RF57-YDP63M4，YQS87RF57-YDP71M4，YQS87RF57-YDP80M4，YQS87RF57-YDP90S4，YQS87RF57-YE63M4，YQS87RF57-YE71M4，YQS87RF57-YE80M4，YQS87RF57-YE90S4，YQS87RF57-YEJ63M4，YQS87RF57-YEJ71M4，YQS87RF57-YEJ80M4，YQS87RF57-YEJ90S4，YQS87RF57-YEJB63M4，YQS87RF57-YEJB71M4，YQS87RF57-YEJB80M4，YQS87RF57-YEJB90S4，YQS87RF57-YP63M4，YQS87RF57-YP71M4，YQS87RF57-YP80M4，YQS87RF57-YP90S4，YQS87RF57-YPB63M4，YQS87RF57-YPB71M4，YQS87RF57-YPB80M4，YQS87RF57-YPB90S4，YQS87RF57-YPE63M4，YQS87RF57-YPE71M4，YQS87RF57-YPE80M4，YQS87RF57-YPE90S4，YQS87RF57-YS63M4，YQS87RF57-YS71M4，YQS87RF57-YS80M4，YQS87RF57-YS90S4，YQS87RF57-YVB63M4，YQS87RF57-YVB71M4，YQS87RF57-YVB80M4，YQS87RF57-YVB90S4，YQS87RF57-YVP63M4，YQS87RF57-YVP71M4，YQS87RF57-YVP80M4，YQS87RF57-YVP90S4，AS87R57-Y63M4，AS87R57-Y71M4，AS87R57-Y80M4，AS87R57-Y90M4，AS87RF57-Y0.12KW，AS87RF57-Y0.18KW，AS87RF57-Y0.25KW，AS87RF57-Y0.37KW，AS87RF57-Y0.55KW，AS87RF57-Y0.75KW，AS87RF57-Y1.1KW，AS87RF57-Y1.5KW，AS87RF57-Y63M4，AS87RF57-Y71M4，AS87RF57-Y80M4，AS87RF57-Y90M4，AS87RF57-YB63M4，AS87RF57-YB71M4，AS87RF57-YB80M4，AS87RF57-YB90S4，AS87RF57-YDP63M4，AS87RF57-YDP71M4，AS87RF57-YDP80M4，AS87RF57-YDP90S4，AS87RF57-YE63M4，AS87RF57-YE71M4，AS87RF57-YE80M4，AS87RF57-YE90S4，AS87RF57-YEJ63M4，AS87RF57-YEJ71M4，AS87RF57-YEJ80M4，AS87RF57-YEJ90S4，AS87RF57-YEJB63M4，AS87RF57-YEJB71M4，AS87RF57-YEJB80M4，AS87RF57-YEJB90S4，AS87RF57-YP63M4，AS87RF57-YP71M4，AS87RF57-YP80M4，AS87RF57-YP90S4，AS87RF57-YPB63M4，AS87RF57-YPB71M4，AS87RF57-YPB80M4，AS87RF57-YPB90S4，AS87RF57-YPE63M4，AS87RF57-YPE71M4，AS87RF57-YPE80M4，AS87RF57-YPE90S4，AS87RF57-YS63M4，AS87RF57-YS71M4，AS87RF57-YS80M4，AS87RF57-YS90S4，AS87RF57-YVB63M4，AS87RF57-YVB71M4，AS87RF57-YVB80M4，AS87RF57-YVB90S4，AS87RF57-YVP63M4，AS87RF57-YVP71M4，AS87RF57-YVP80M4，AS87RF57-YVP90S4，SS87R57-Y63M4，SS87R57-Y71M4，SS87R57-Y80M4，SS87R57-Y90M4，SS87RF57-Y0.12KW，SS87RF57-Y0.18KW，SS87RF57-Y0.25KW，SS87RF57-Y0.37KW，SS87RF57-Y0.55KW，SS87RF57-Y0.75KW，SS87RF57-Y1.1KW，SS87RF57-Y1.5KW，SS87RF57-Y63M4，SS87RF57-Y71M4，SS87RF57-Y80M4，SS87RF57-Y90M4，SS87RF57-YB63M4，SS87RF57-YB71M4，SS87RF57-YB80M4，SS87RF57-YB90S4，SS87RF57-YDP63M4，SS87RF57-YDP71M4，SS87RF57-YDP80M4，SS87RF57-YDP90S4，SS87RF57-YE63M4，SS87RF57-YE71M4，SS87RF57-YE80M4，SS87RF57-YE90S4，SS87RF57-YEJ63M4，SS87RF57-YEJ71M4，SS87RF57-YEJ80M4，SS87RF57-YEJ90S4，SS87RF57-YEJB63M4，SS87RF57-YEJB71M4，SS87RF57-YEJB80M4，SS87RF57-YEJB90S4，SS87RF57-YP63M4，SS87RF57-YP71M4，SS87RF57-YP80M4，SS87RF57-YP90S4，SS87RF57-YPB63M4，SS87RF57-YPB71M4，SS87RF57-YPB80M4，SS87RF57-YPB90S4，SS87RF57-YPE63M4，SS87RF57-YPE71M4，SS87RF57-YPE80M4，SS87RF57-YPE90S4，SS87RF57-YS63M4，SS87RF57-YS71M4，SS87RF57-YS80M4，SS87RF57-YS90S4，SS87RF57-YVB63M4，SS87RF57-YVB71M4，SS87RF57-YVB80M4，SS87RF57-YVB90S4，SS87RF57-YVP63M4，SS87RF57-YVP71M4，SS87RF57-YVP80M4，SS87RF57-YVP90S4，XDS87R57-Y63M4，XDS87R57-Y71M4，XDS87R57-Y80M4，XDS87R57-Y90M4，XDS87RF57-Y0.12KW，XDS87RF57-Y0.18KW，XDS87RF57-Y0.25KW，XDS87RF57-Y0.37KW，XDS87RF57-Y0.55KW，XDS87RF57-Y0.75KW，XDS87RF57-Y1.1KW，XDS87RF57-Y1.5KW，XDS87RF57-Y63M4，XDS87RF57-Y71M4，XDS87RF57-Y80M4，XDS87RF57-Y90M4，XDS87RF57-YB63M4，XDS87RF57-YB71M4，XDS87RF57-YB80M4，XDS87RF57-YB90S4，XDS87RF57-YDP63M4，XDS87RF57-YDP71M4，XDS87RF57-YDP80M4，XDS87RF57-YDP90S4，XDS87RF57-YE63M4，XDS87RF57-YE71M4，XDS87RF57-YE80M4，XDS87RF57-YE90S4，XDS87RF57-YEJ63M4，XDS87RF57-YEJ71M4，XDS87RF57-YEJ80M4，XDS87RF57-YEJ90S4，XDS87RF57-YEJB63M4，XDS87RF57-YEJB71M4，XDS87RF57-YEJB80M4，XDS87RF57-YEJB90S4，XDS87RF57-YP63M4，XDS87RF57-YP71M4，XDS87RF57-YP80M4，XDS87RF57-YP90S4，XDS87RF57-YPB63M4，XDS87RF57-YPB71M4，XDS87RF57-YPB80M4，XDS87RF57-YPB90S4，XDS87RF57-YPE63M4，XDS87RF57-YPE71M4，XDS87RF57-YPE80M4，XDS87RF57-YPE90S4，XDS87RF57-YS63M4，XDS87RF57-YS71M4，XDS87RF57-YS80M4，XDS87RF57-YS90S4，XDS87RF57-YVB63M4，XDS87RF57-YVB71M4，XDS87RF57-YVB80M4，XDS87RF57-YVB90S4，XDS87RF57-YVP63M4，XDS87RF57-YVP71M4，XDS87RF57-YVP80M4，XDS87RF57-YVP90S4，WS87R57-Y63M4，WS87R57-Y71M4，WS87R57-Y80M4，WS87R57-Y90M4，WS87RF57-Y0.12KW，WS87RF57-Y0.18KW，WS87RF57-Y0.25KW，WS87RF57-Y0.37KW，WS87RF57-Y0.55KW，WS87RF57-Y0.75KW，WS87RF57-Y1.1KW，WS87RF57-Y1.5KW，WS87RF57-Y63M4，WS87RF57-Y71M4，WS87RF57-Y80M4，WS87RF57-Y90M4，WS87RF57-YB63M4，WS87RF57-YB71M4，WS87RF57-YB80M4，WS87RF57-YB90S4，WS87RF57-YDP63M4，WS87RF57-YDP71M4，WS87RF57-YDP80M4，WS87RF57-YDP90S4，WS87RF57-YE63M4，WS87RF57-YE71M4，WS87RF57-YE80M4，WS87RF57-YE90S4，WS87RF57-YEJ63M4，WS87RF57-YEJ71M4，WS87RF57-YEJ80M4，WS87RF57-YEJ90S4，WS87RF57-YEJB63M4，WS87RF57-YEJB71M4，WS87RF57-YEJB80M4，WS87RF57-YEJB90S4，WS87RF57-YP63M4，WS87RF57-YP71M4，WS87RF57-YP80M4，WS87RF57-YP90S4，WS87RF57-YPB63M4，WS87RF57-YPB71M4，WS87RF57-YPB80M4，WS87RF57-YPB90S4，WS87RF57-YPE63M4，WS87RF57-YPE71M4，WS87RF57-YPE80M4，WS87RF57-YPE90S4，WS87RF57-YS63M4，WS87RF57-YS71M4，WS87RF57-YS80M4，WS87RF57-YS90S4，WS87RF57-YVB63M4，WS87RF57-YVB71M4，WS87RF57-YVB80M4，WS87RF57-YVB90S4，WS87RF57-YVP63M4，WS87RF57-YVP71M4，WS87RF57-YVP80M4，WS87RF57-YVP90S4，JCS87R57-Y63M4，JCS87R57-Y71M4，JCS87R57-Y80M4，JCS87R57-Y90M4，JCS87RF57-Y0.12KW，JCS87RF57-Y0.18KW，JCS87RF57-Y0.25KW，JCS87RF57-Y0.37KW，JCS87RF57-Y0.55KW，JCS87RF57-Y0.75KW，JCS87RF57-Y1.1KW，JCS87RF57-Y1.5KW，JCS87RF57-Y63M4，JCS87RF57-Y71M4，JCS87RF57-Y80M4，JCS87RF57-Y90M4，JCS87RF57-YB63M4，JCS87RF57-YB71M4，JCS87RF57-YB80M4，JCS87RF57-YB90S4，JCS87RF57-YDP63M4，JCS87RF57-YDP71M4，JCS87RF57-YDP80M4，JCS87RF57-YDP90S4，JCS87RF57-YE63M4，JCS87RF57-YE71M4，JCS87RF57-YE80M4，JCS87RF57-YE90S4，JCS87RF57-YEJ63M4，JCS87RF57-YEJ71M4，JCS87RF57-YEJ80M4，JCS87RF57-YEJ90S4，JCS87RF57-YEJB63M4，JCS87RF57-YEJB71M4，JCS87RF57-YEJB80M4，JCS87RF57-YEJB90S4，JCS87RF57-YP63M4，JCS87RF57-YP71M4，JCS87RF57-YP80M4，JCS87RF57-YP90S4，JCS87RF57-YPB63M4，JCS87RF57-YPB71M4，JCS87RF57-YPB80M4，JCS87RF57-YPB90S4，JCS87RF57-YPE63M4，JCS87RF57-YPE71M4，JCS87RF57-YPE80M4，JCS87RF57-YPE90S4，JCS87RF57-YS63M4，JCS87RF57-YS71M4，JCS87RF57-YS80M4，JCS87RF57-YS90S4，JCS87RF57-YVB63M4，JCS87RF57-YVB71M4，JCS87RF57-YVB80M4，JCS87RF57-YVB90S4，JCS87RF57-YVP63M4，JCS87RF57-YVP71M4，JCS87RF57-YVP80M4，JCS87RF57-YVP90S4，NS87R57-Y63M4，NS87R57-Y71M4，NS87R57-Y80M4，NS87R57-Y90M4，NS87RF57-Y0.12KW，NS87RF57-Y0.18KW，NS87RF57-Y0.25KW，NS87RF57-Y0.37KW，NS87RF57-Y0.55KW，NS87RF57-Y0.75KW，NS87RF57-Y1.1KW，NS87RF57-Y1.5KW，NS87RF57-Y63M4，NS87RF57-Y71M4，NS87RF57-Y80M4，NS87RF57-Y90M4，NS87RF57-YB63M4，NS87RF57-YB71M4，NS87RF57-YB80M4，NS87RF57-YB90S4，NS87RF57-YDP63M4，NS87RF57-YDP71M4，NS87RF57-YDP80M4，NS87RF57-YDP90S4，NS87RF57-YE63M4，NS87RF57-YE71M4，NS87RF57-YE80M4，NS87RF57-YE90S4，NS87RF57-YEJ63M4，NS87RF57-YEJ71M4，NS87RF57-YEJ80M4，NS87RF57-YEJ90S4，NS87RF57-YEJB63M4，NS87RF57-YEJB71M4，NS87RF57-YEJB80M4，NS87RF57-YEJB90S4，NS87RF57-YP63M4，NS87RF57-YP71M4，NS87RF57-YP80M4，NS87RF57-YP90S4，NS87RF57-YPB63M4，NS87RF57-YPB71M4，NS87RF57-YPB80M4，NS87RF57-YPB90S4，NS87RF57-YPE63M4，NS87RF57-YPE71M4，NS87RF57-YPE80M4，NS87RF57-YPE90S4，NS87RF57-YS63M4，NS87RF57-YS71M4，NS87RF57-YS80M4，NS87RF57-YS90S4，NS87RF57-YVB63M4，NS87RF57-YVB71M4，NS87RF57-YVB80M4，NS87RF57-YVB90S4，NS87RF57-YVP63M4，NS87RF57-YVP71M4，NS87RF57-YVP80M4，NS87RF57-YVP90S4，SW87RW57-Y63M4，SW87RW57-Y71M4，SW87RW57-Y80M4，SW87RW57-Y90M4，SW87RWF57-Y0.12KW，SW87RWF57-Y0.18KW，SW87RWF57-Y0.25KW，SW87RWF57-Y0.37KW，SW87RWF57-Y0.55KW，SW87RWF57-Y0.75KW，SW87RWF57-Y1.1KW，SW87RWF57-Y1.5KW，SW87RWF57-Y63M4，SW87RWF57-Y71M4，SW87RWF57-Y80M4，SW87RWF57-Y90M4，SW87RWF57-YB63M4，SW87RWF57-YB71M4，SW87RWF57-YB80M4，SW87RWF57-YB90S4，SW87RWF57-YDP63M4，SW87RWF57-YDP71M4，SW87RWF57-YDP80M4，SW87RWF57-YDP90S4，SW87RWF57-YE63M4，SW87RWF57-YE71M4，SW87RWF57-YE80M4，SW87RWF57-YE90S4，SW87RWF57-YEJ63M4，SW87RWF57-YEJ71M4，SW87RWF57-YEJ80M4，SW87RWF57-YEJ90S4，SW87RWF57-YEJB63M4，SW87RWF57-YEJB71M4，SW87RWF57-YEJB80M4，SW87RWF57-YEJB90S4，SW87RWF57-YP63M4，SW87RWF57-YP71M4，SW87RWF57-YP80M4，SW87RWF57-YP90S4，SW87RWF57-YPB63M4，SW87RWF57-YPB71M4，SW87RWF57-YPB80M4，SW87RWF57-YPB90S4，SW87RWF57-YPE63M4，SW87RWF57-YPE71M4，SW87RWF57-YPE80M4，SW87RWF57-YPE90S4，SW87RWF57-YS63M4，SW87RWF57-YS71M4，SW87RWF57-YS80M4，SW87RWF57-YS90S4，SW87RWF57-YVB63M4，SW87RWF57-YVB71M4，SW87RWF57-YVB80M4，SW87RWF57-YVB90S4，SW87RWF57-YVP63M4，SW87RWF57-YVP71M4，SW87RWF57-YVP80M4，SW87RWF57-YVP90S4，S89R59-Y63M4，S89R59-Y71M4，S89R59-Y80M4，S89R59-Y90M4，S89RF59-Y0.12KW，S89RF59-Y0.18KW，S89RF59-Y0.25KW，S89RF59-Y0.37KW，S89RF59-Y0.55KW，S89RF59-Y0.75KW，S89RF59-Y1.1KW，S89RF59-Y1.5KW，S89RF59-Y63M4，S89RF59-Y71M4，S89RF59-Y80M4，S89RF59-Y90M4，S89RF59-YB63M4，S89RF59-YB71M4，S89RF59-YB80M4，S89RF59-YB90S4，S89RF59-YDP63M4，S89RF59-YDP71M4，S89RF59-YDP80M4，S89RF59-YDP90S4，S89RF59-YE63M4，S89RF59-YE71M4，S89RF59-YE80M4，S89RF59-YE90S4，S89RF59-YEJ63M4，S89RF59-YEJ71M4，S89RF59-YEJ80M4，S89RF59-YEJ90S4，S89RF59-YEJB63M4，S89RF59-YEJB71M4，S89RF59-YEJB80M4，S89RF59-YEJB90S4，S89RF59-YP63M4，S89RF59-YP71M4，S89RF59-YP80M4，S89RF59-YP90S4，S89RF59-YPB63M4，S89RF59-YPB71M4，S89RF59-YPB80M4，S89RF59-YPB90S4，S89RF59-YPE63M4，S89RF59-YPE71M4，S89RF59-YPE80M4，S89RF59-YPE90S4，S89RF59-YS63M4，S89RF59-YS71M4，S89RF59-YS80M4，S89RF59-YS90S4，S89RF59-YVB63M4，S89RF59-YVB71M4，S89RF59-YVB80M4，S89RF59-YVB90S4，S89RF59-YVP63M4，S89RF59-YVP71M4，S89RF59-YVP80M4，S89RF59-YVP90S4。

S89R59減速電機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.psyhn.cn/product/list-sxiliejiansuji-cn.html

推薦型號：S89減速機
